3.8.3.1 Configuration example with 4 individual muting sensors

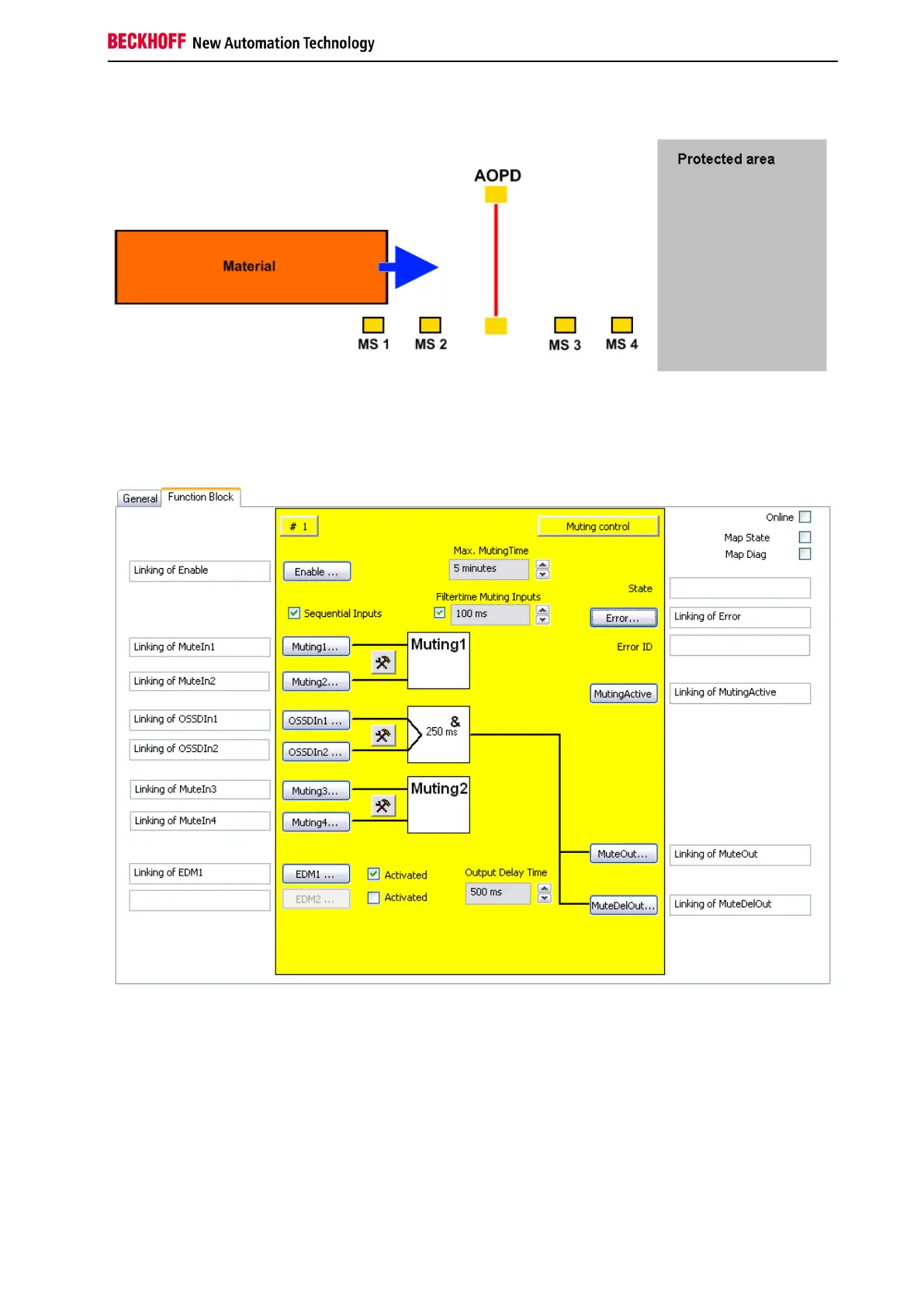

Figure 3-33: Configuration example with FB MUTING
The following screenshot shows the parameterization of FB Muting for this case. The 'Sequential Inputs'
checkbox is checked. The 4 muting inputs are configured and wired as single-channel inputs.
Figure 3-34: Muting example
