Behringer X32 Reference Manual

Page 4
2.2 ACOUSTIC GUITAR (OPTIONAL VOCALS)
Place one of the FX150 monitors on a mic stand (if setting up for vocals) or a music stand and run an
XLR cable from one of the monitor feeds under a nearby stage plate to INPUT 1 on the monitor.
Now hook up the power supply to the monitor, and plug it in to an outlet under the stage plate.
Run a ¼” cable from the guitar to the instrument input on a DI box, and then run one of the special
¼” to 1/8” cables from the through connection on the DI box into the AUX input on the FX150. Now
run an XLR cable from the DI XLR output into an input channel under the stage plate – note the
channel number and musician on the worksheet.

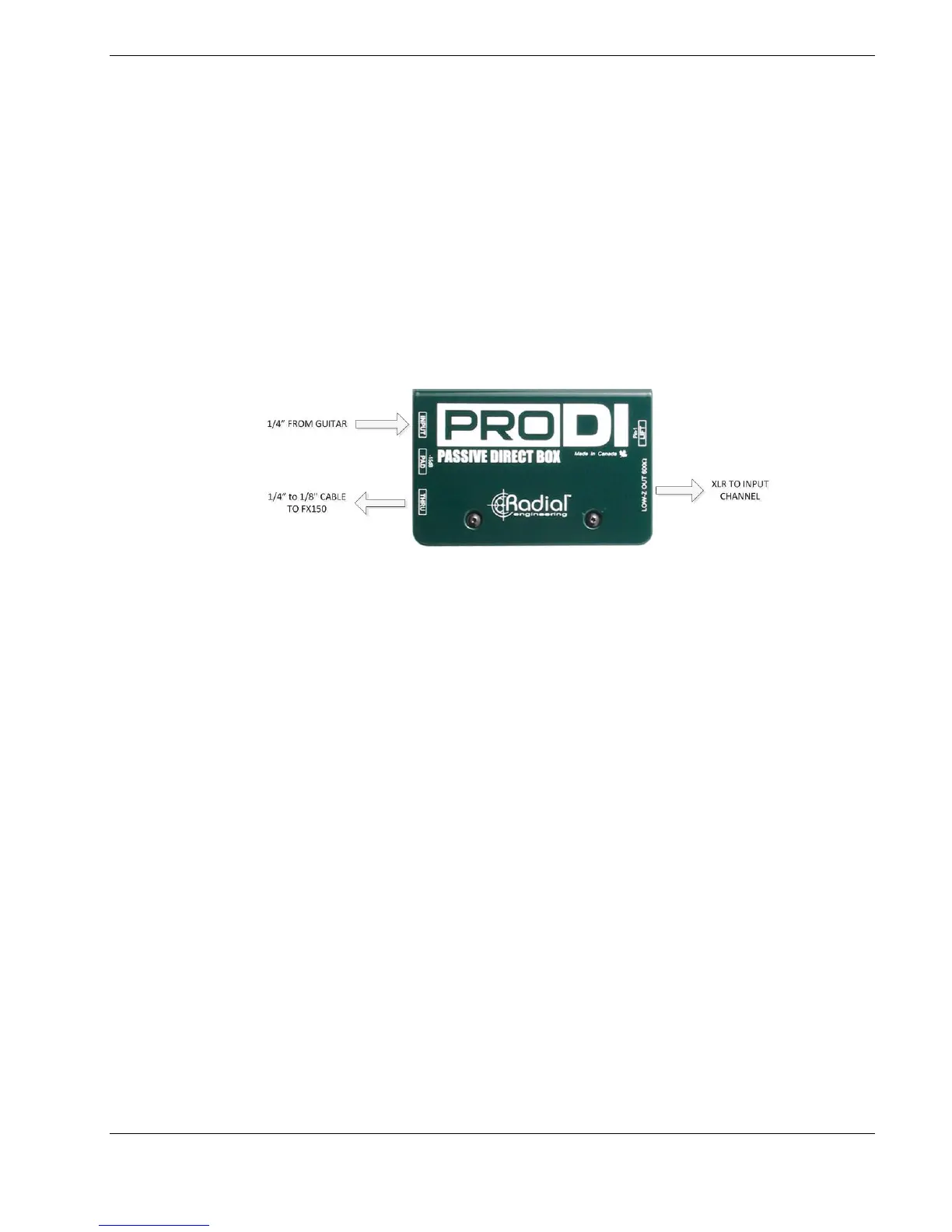

Figure 4 - Acoustic Guitar DI Configuration (typical DI shown)
OPTIONAL VOCALS: Run an XLR cable from the microphone to INPUT 2 on the FX150, and then run an
XLR cable from the THRU connection into an input channel under the stage plate – note the channel
number and musician on the worksheet.
Make sure the monitor is OFF, check the settings on the back panel and reset the monitor to defaults
– See Section 9.1.
The guitarist is now configured with optional vocals. See the section on using the FX150 monitor and
remind the musician how to use the monitor.
In this configuration:
 INPUT 1 on the FX150 controls the monitor level
 INPUT 2 on the FX150 controls the voice level (OPTIONAL)
 AUX on the FX150 controls the guitar level
 The MASTER knob controls the overall level of the monitor

Behringer X32 Specifications

General

Frequency range	10 - 22000 Hz
Channels quantity	40 channels
Digital sound processing	24 bit
Total Harmonic Distortion (THD)	0.006 %
Monitor out	1
Headphone connectivity	6.3 mm
USB 2.0 ports quantity	2
DJ mixer	-
Product color	Black

Weight and Dimensions

Depth	528 mm
Width	900 mm
Height	200 mm
Weight	20600 g
