Behringer X32 Reference Manual

Page 5

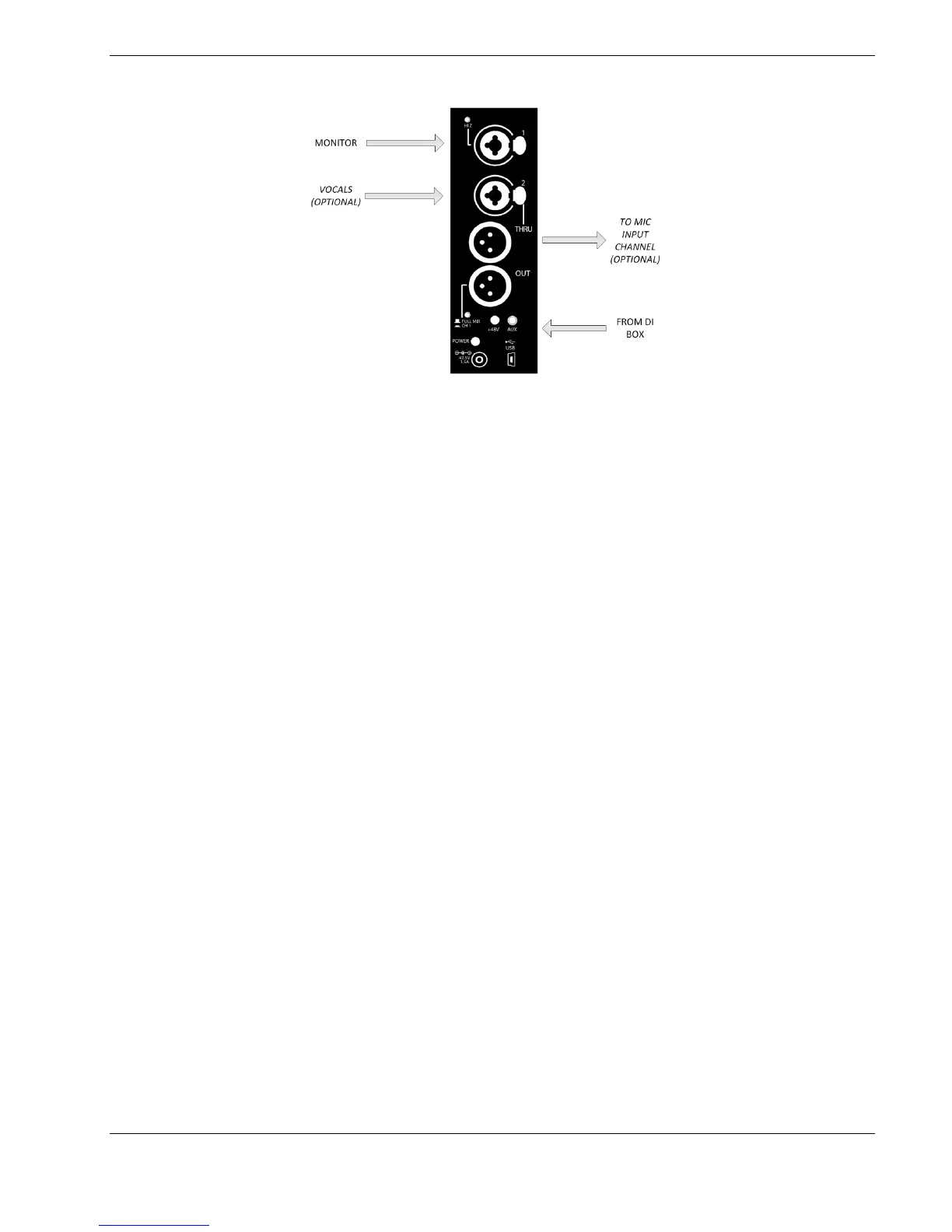

Figure 5 - Monitor Setup for Acoustic Guitar
2.3 VOCALIST
Place one of the FX150 monitors on a mic stand and run an XLR cable from one of the monitor feeds
under a nearby stage plate to INPUT 1 on the monitor. Now hook up the power supply to the
monitor, and plug it in to an outlet under the stage plate.
Run an XLR cable from the microphone to INPUT 2 on the FX150, and then run an XLR cable from the
THRU connection into an input channel under the stage plate – note the channel number and
musician on the worksheet.
Make sure the monitor is OFF, check the settings on the back panel and reset the monitor to defaults
– See Section 9.1.
The vocalist is now configured. See the section on using the FX150 monitor and remind the musician
how to use the monitor.
In this configuration:
 INPUT 1 on the FX150 controls the monitor level
 INPUT 2 on the FX150 controls the voice level
 The MASTER knob controls the overall level of the monitor
