Behringer X32 Reference Manual

Page 6

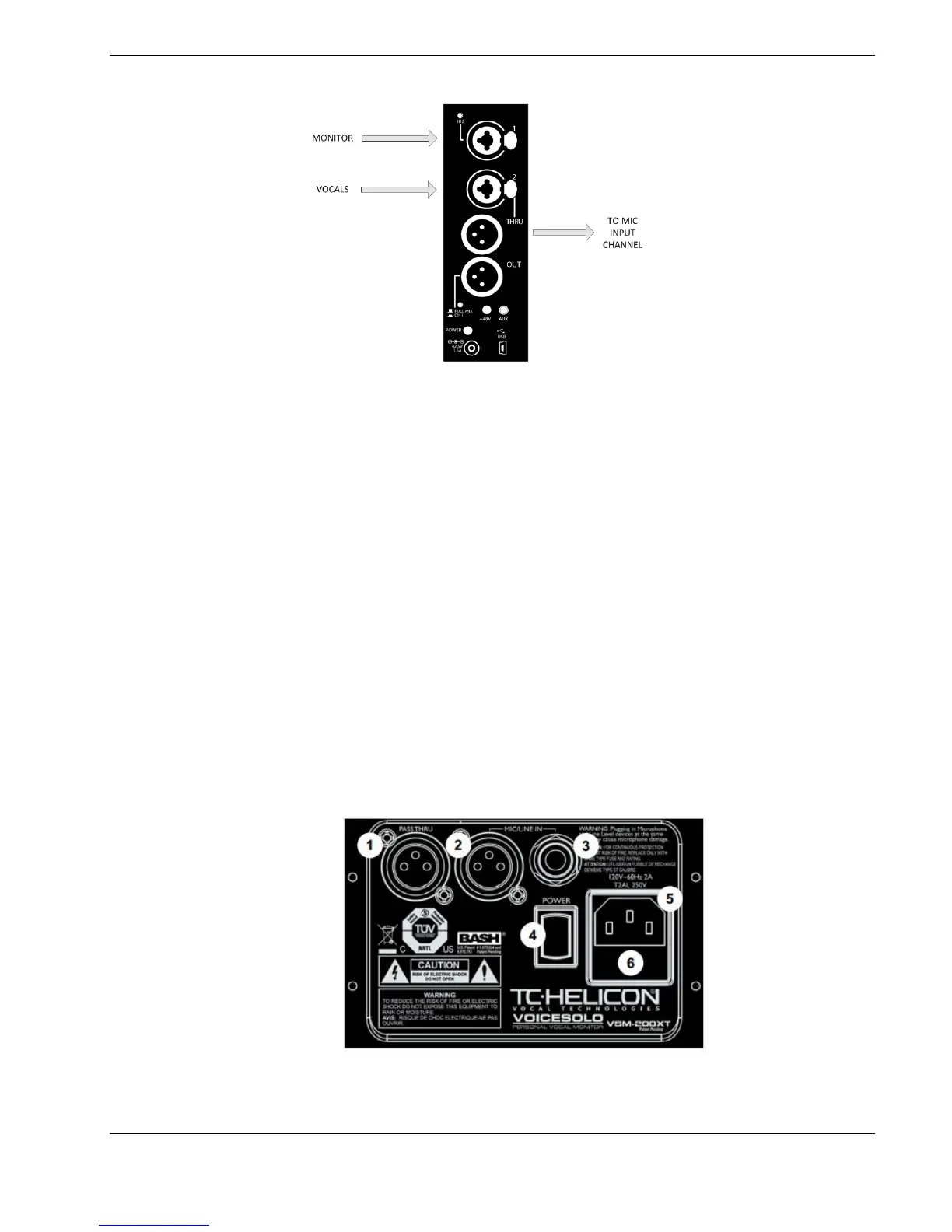

Figure 6 - Monitor Setup for Vocalist
2.4 BASS GUITAR
The bass guitar uses one of the single channel Voice Solo powered monitors placed on the floor.
Simply connect an XLR cable from the MIC/LINE IN input on the monitor (see illustration below) to
one of the monitor outs in the stage plate next to the bass amp, and plug in the power cord to one of
the outlets. The monitor should then be turned on – individual volume for the monitor can be
controlled by the bass player using the volume knob. This adjusts the entire mix, customization of
the mix is not available.
The DI outlet from the bass amp should now be connected to the input labelled BASS in the stage
plate using a short XLR cable, this connects the bass amp signal to the pre-configured sound board
channel.
Figure 7 - Monitor Setup for Bass

Behringer X32 Specifications

General

Frequency range	10 - 22000 Hz
Channels quantity	40 channels
Digital sound processing	24 bit
Total Harmonic Distortion (THD)	0.006 %
Monitor out	1
Headphone connectivity	6.3 mm
USB 2.0 ports quantity	2
DJ mixer	-
Product color	Black

Weight and Dimensions

Depth	528 mm
Width	900 mm
Height	200 mm
Weight	20600 g
