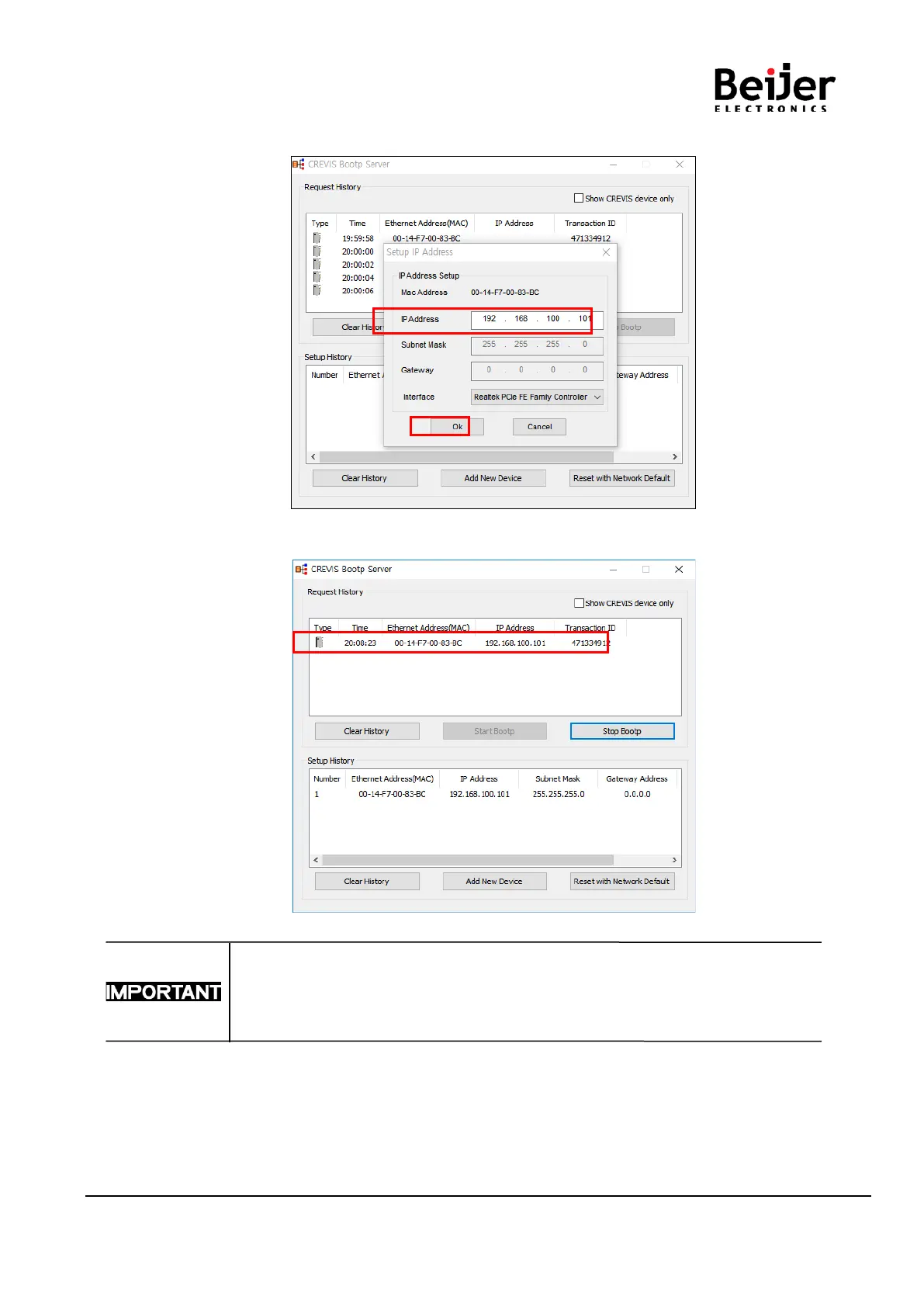

(4) Set the IP, and click ‘OK’.

(5) Finish

Subnet Mask and Gateway is

assigned automatically by the value that is set in the computer.
