GN-9371_2_3 User Manual

Page 53 of (110)

G-series GN-9371_2_3 PIO Rev. 1.02.docx

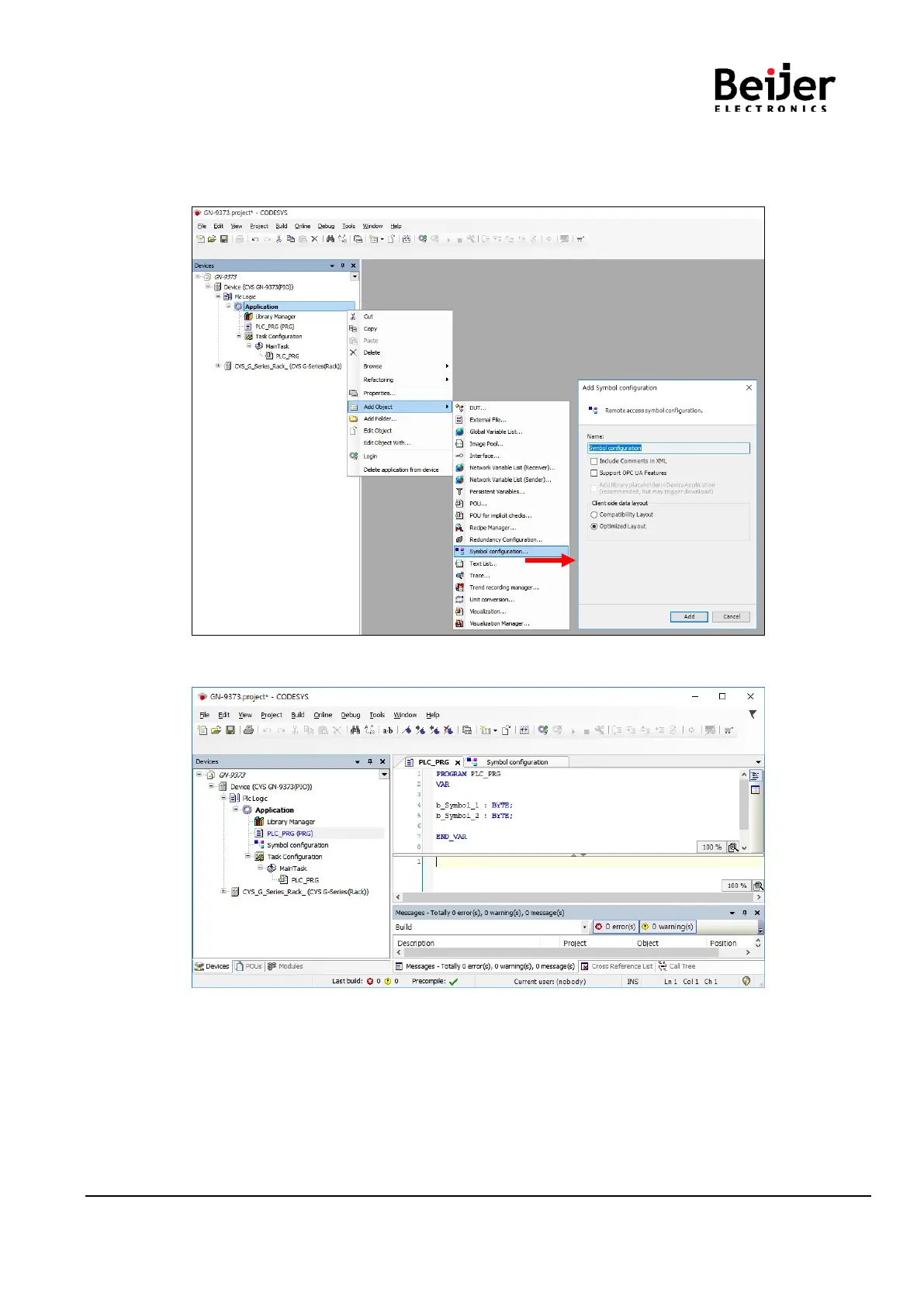

7.6 OPC Server (GN-9372/GN-9373 only)

(1) Add Object for the Symbolic Configuration to Application Project

(2) Define the Symbolic variable to configure the OPC variable.
