7.3 MODBUS TCP Setting
7.3.1 TCP Master Setting

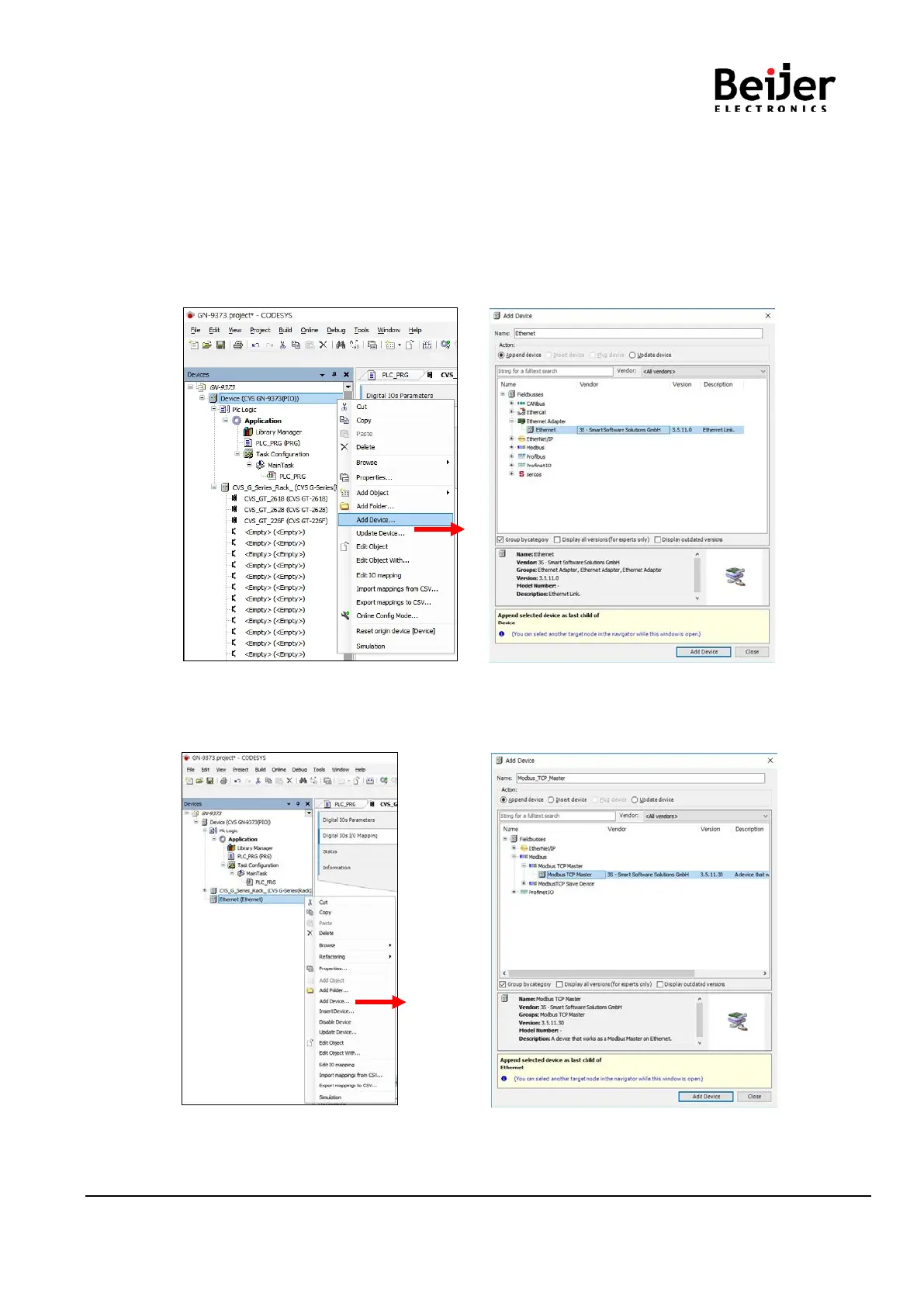

(1) Add Device
Click Device(GN-9371/2/3)  right click  Click ‘Add Device…’.
(2) Add Ethernet Adapter
Click ‘Fieldbus’  ‘Ethernet Adapter’  ‘Ethernet’ and ‘Add Device’ Click.
(3) Add Device after Selecting Ethernet and Add MODBUS TCP Master
Click Ethernet (Ethernet)  right click  Click ‘Add Device’
Click ‘Fieldbuses’  ‘Modbus TCP Master’  ‘Modbus TCP Master’ and ‘Add Device’ Click.
