BeiJer GN-9371 - Page 46

GN-9371_2_3 User Manual
Page 46 of (110)
G-series GN-9371_2_3 PIO Rev. 1.02.docx
To use the continuously without disconnection, it should be checked the “auto-reconnect”

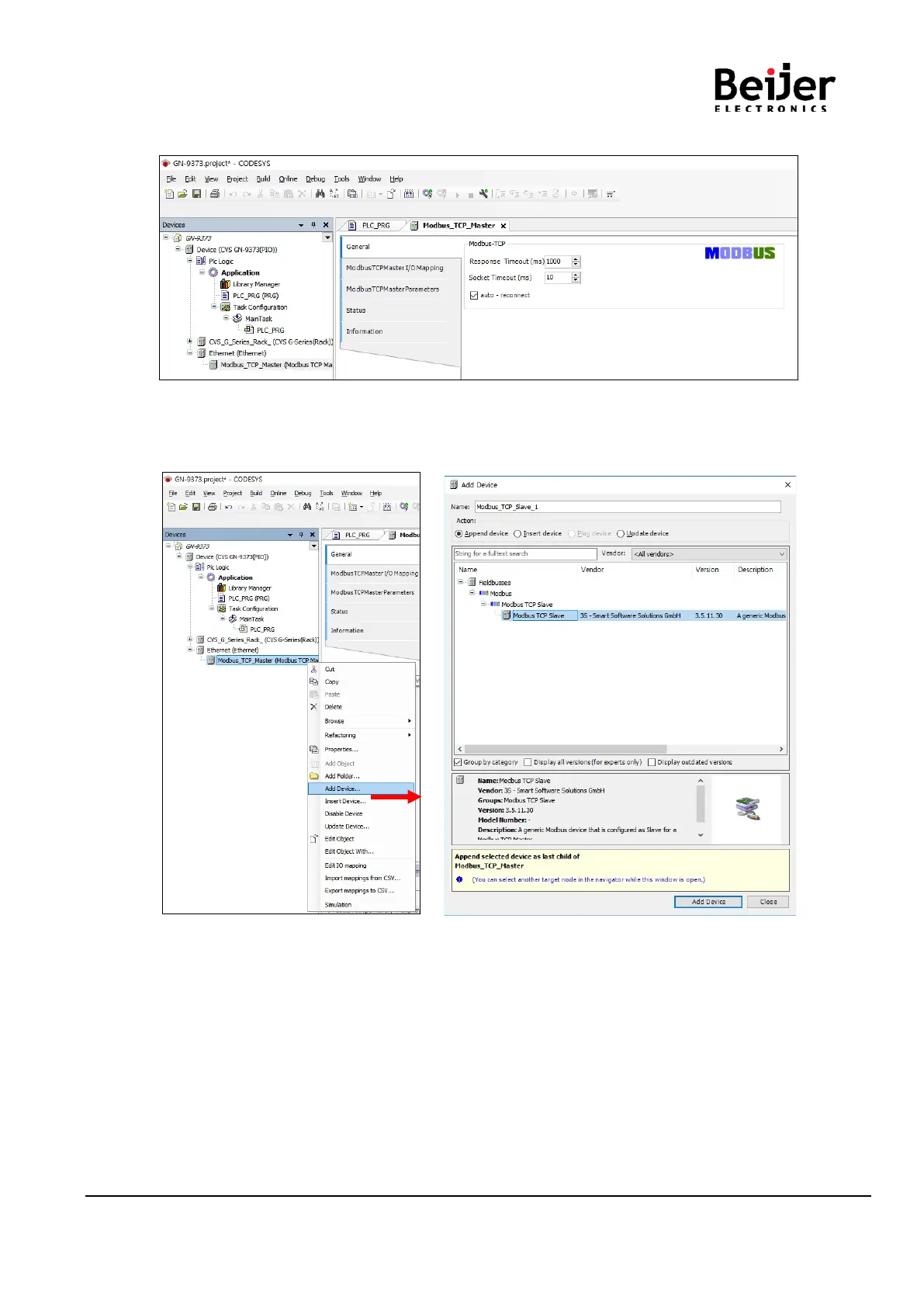

(4) Add Device after adding MODBUS TCP Master and Add Modbus TCP Slave
Click Modbus_TCP_Master  right click  Click ‘Add Device’
Click ‘Fieldbuses’  ‘Modbus’  ‘Modbus TCP Slave’  ‘Modbus TCP Slave’ and ‘Add Device’ Click.
