GN-9371_2_3 User Manual
Page 47 of (110)
G-series GN-9371_2_3 PIO Rev. 1.02.docx

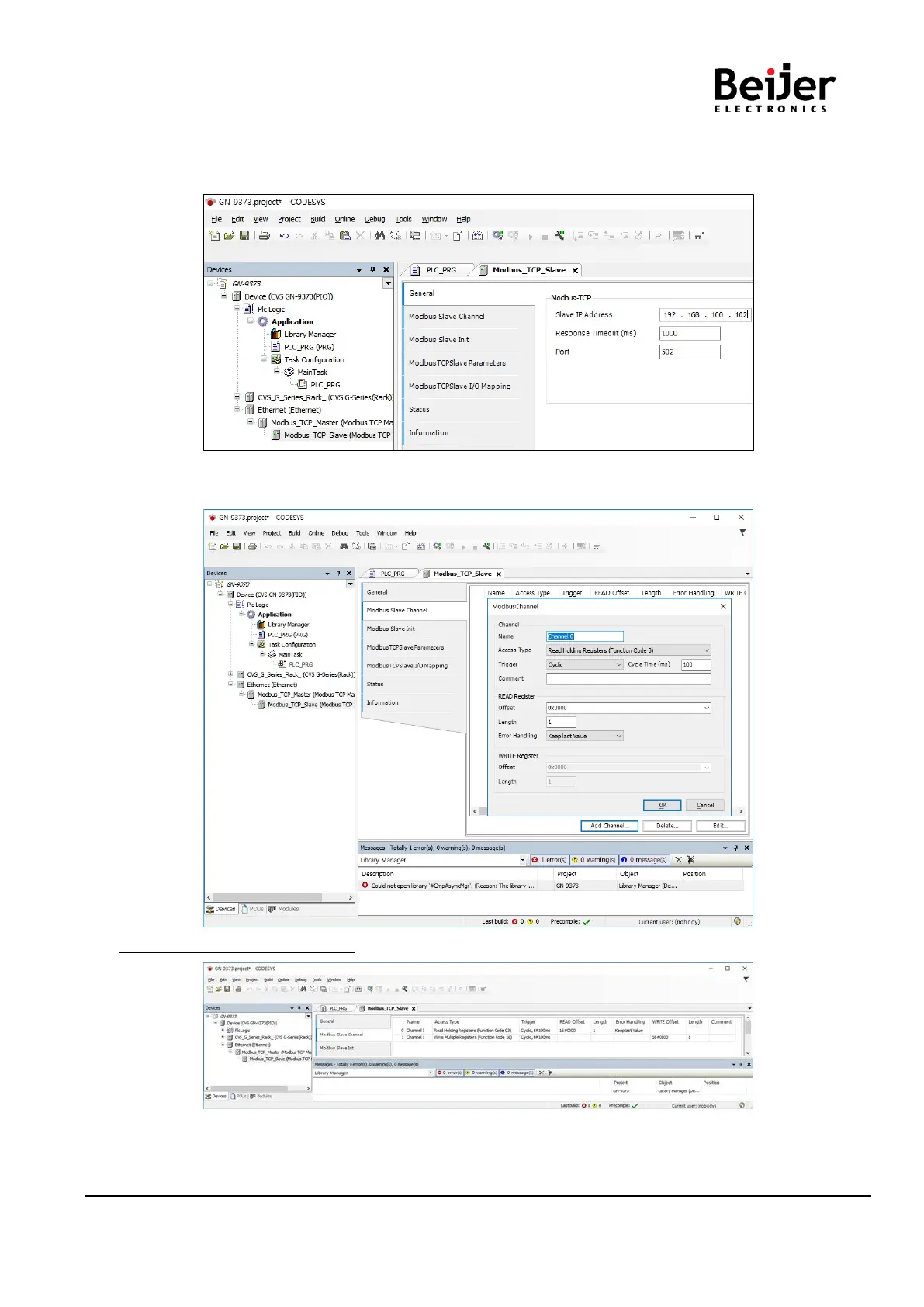

(5) Configuration of the ModbusTCP Slave
Click ‘Modbus_TCP_Slave’(Modbus TCP Slave)
Write Slave IP Address (GN-9371/2/3)
Click ‘Modbus Slave Channel’
Add a channel of GN-9371/2/3 and Modify Cycle Time
* Default Cycle Time(ms) : 100ms.
To Next Page
