BELL HELICOPTER 430 - Figure 4-1. Main Rotor Yoke - 100-Hour and 600-Hour Inspection; NOTES

TC APPROVED BHT-430-MM-2
4-00-00
1 NOV 2012 Rev. 19 Page 11
ECCN EAR99

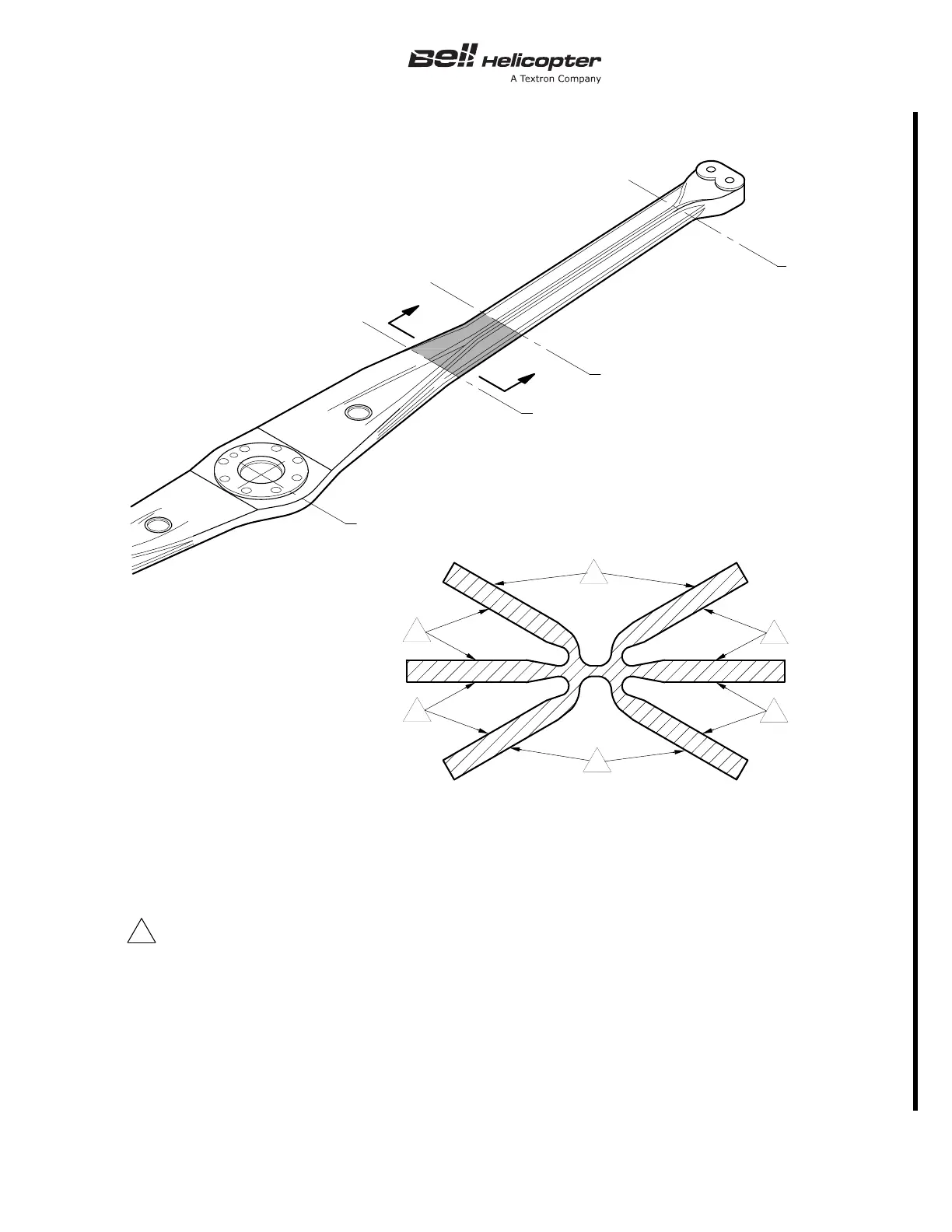

Figure 4-1. Main Rotor Yoke — 100-Hour and 600-Hour Inspection
Inspect surfaces for spanwise crack damage between yoke stations 23.0 and 31.0.
Inspection applies to yokes with cracks. Inspection is limited to arm that has crack(s).
Refer to BHT-430-CR&O-2 (Chapter 62) for damage criteria.
NOTES
1
1
1
STATION 31.0
STATION 55.0
STATION 23.0
STATION 0.0
A
A
SECTION A-A
430_MM_04_0001
1
2.
3.
1
1
1
