BHT-430-MM-2 TC APPROVED
4-00-00
Page 16 Rev. 19 1 NOV 2012
ECCN EAR99

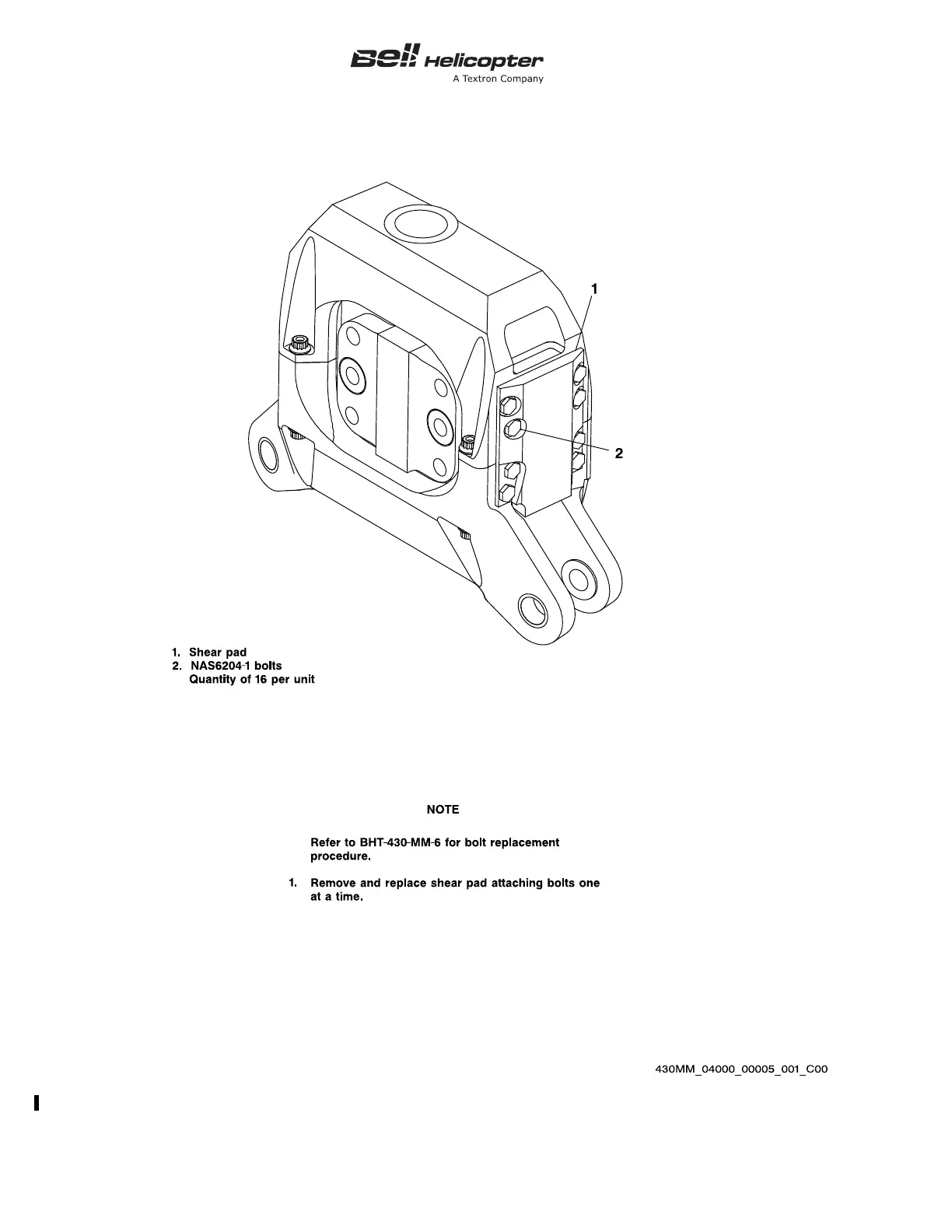

Figure 4-6. Pylon Fluid Mount — Torque Shear Pad Bolt Replacement
