Bender ISOMETER iso165C - Enclosure and Mounting

iso165C_D00154_03_M_XXEN/01.2019
11

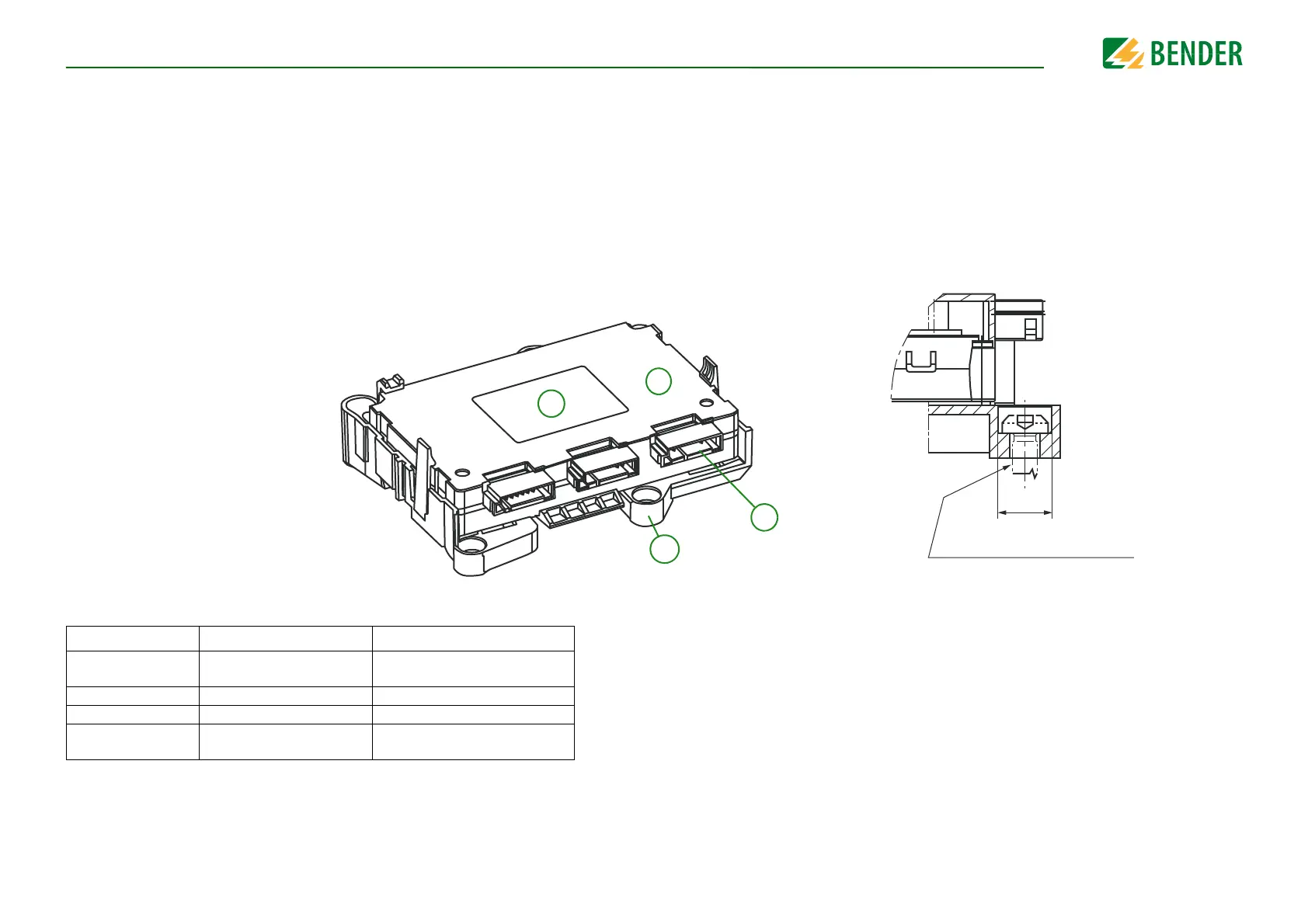

4.2 Enclosure and mounting
Position Component Properties
1Housing
PBT GF30 black
UL Standard: UL94 V0
2 Connector pin Cu-alloy, tin plated
3 Label White Polyester foil
4Bracket
PBT GF30 black
UL Standard: UL94 V0
Section view A-A
Scale: 2:1
(ø 11)
recommended screws (not included)
4 x M5
fastening torque: 2.25 ± 0.25 Nm
1
2
3
4
