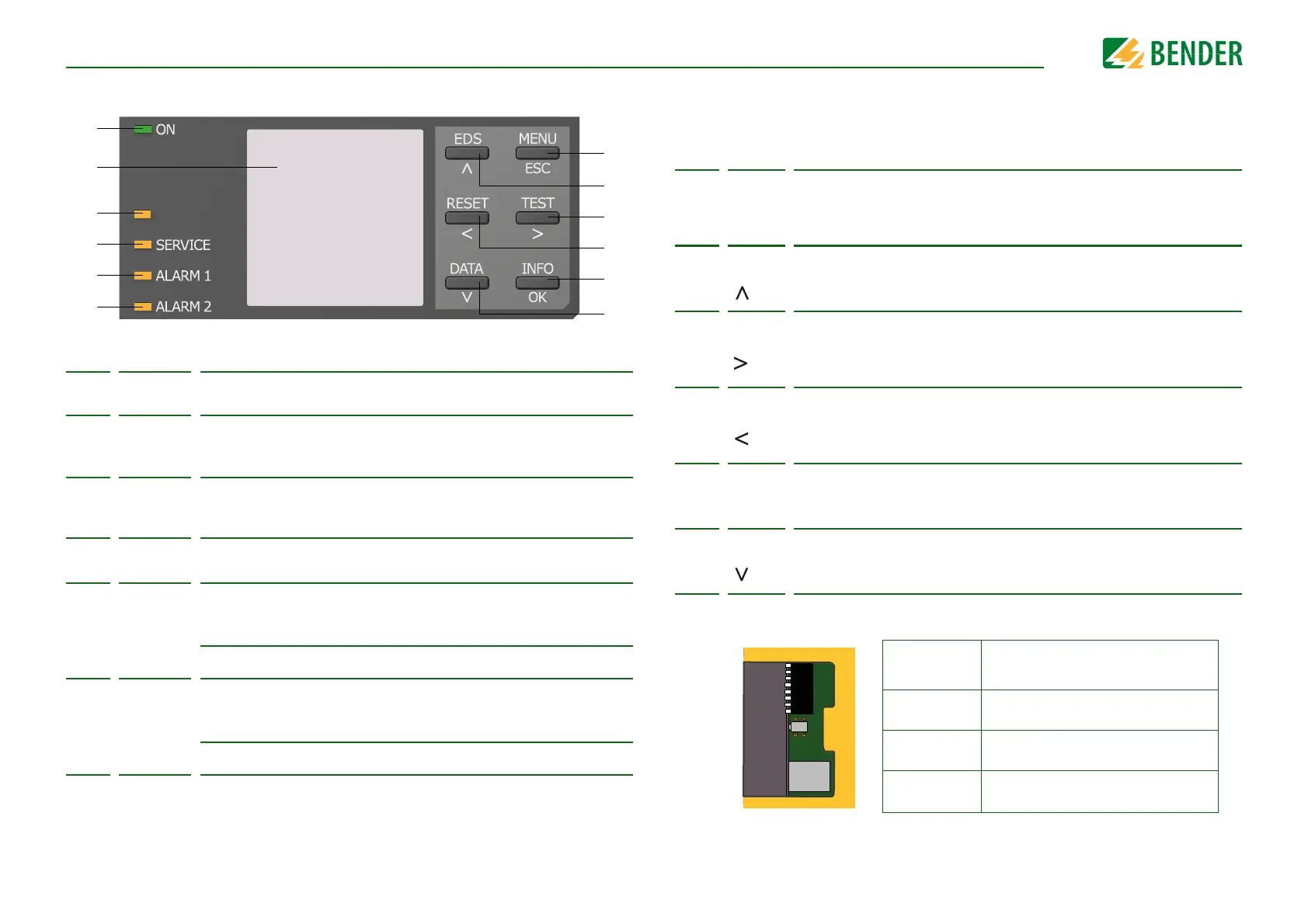

4.3 Display and operating elements
4.3.1 Display elements
1
ON
(green)
The operation indicator lights continuously.
2
The device display shows information regarding the device and the
measurements.
Further information is available in the chapter
“Display” ab Seite 25.
3
PGH ON
(yellow)
The LED "PGH ON" flashes during insulation fault location . It indicates that
the locating current for the insulation fault location is generated.
The LED "PGH ON" is only activated at iso1685DP.
4
SERVICE
(yellow)
When a device error is detected, the SERVICE LED lights.
If the LED stays lit, please check the error code list on
Seite 37.
5
ALARM 1
(yellow)
Insulation fault 1 (prewarning):
The "ALARM 1" LED lights continuously when the insulation resistance
falls below the response value 1, R
F
< R
an1
Flashes: Connection fault, check earth and system (L1/+, L2/–)
6
ALARM 2
(yellow)
Insulation fault 2 (alarm):
The "ALARM 2" LED lights continuously when the insulation resistance
falls below the response value 2, R
F
< R
an2
Flashes: Connection fault, check earth and system (L1/+, L2/–)
PGH ON
1
2
3
4
5
6
7
8
9
10
11
12
4.3.2 Device buttons
You can adjust the device settings in the respective menu using the menu buttons. De-
pending on the menu entry, one of the options displayed below is assigned to the but-
tons.
4.3.3 Operating elements in the service lid
7
MENU Opens the device menu.
ESC
Cancels the current process or
navigates one step back in the device menu.
8
EDS Opens the EDS menu (only iso1685DP).
Navigates up in a list or increases a value.
9
TEST Starts the device self test.
Navigates forwards (e.g. to the next setting step) or
selects a parameter.
10
RESET Resets alarms.
Navigates backwards (e.g. to the previous setting step) or
selects a parameter.
11
INFO Shows information.
OK Confirms an action or a selection.
12
DATA Indicates data and values.
Navigates down in a list or reduces a value.
Operating
elements
Function
DIP switch
(SS8103)
No function
Button
(ST6101)
Alarm reset
Memory card
(SD Card)
No function
