7.3 Fault indication (inactive)

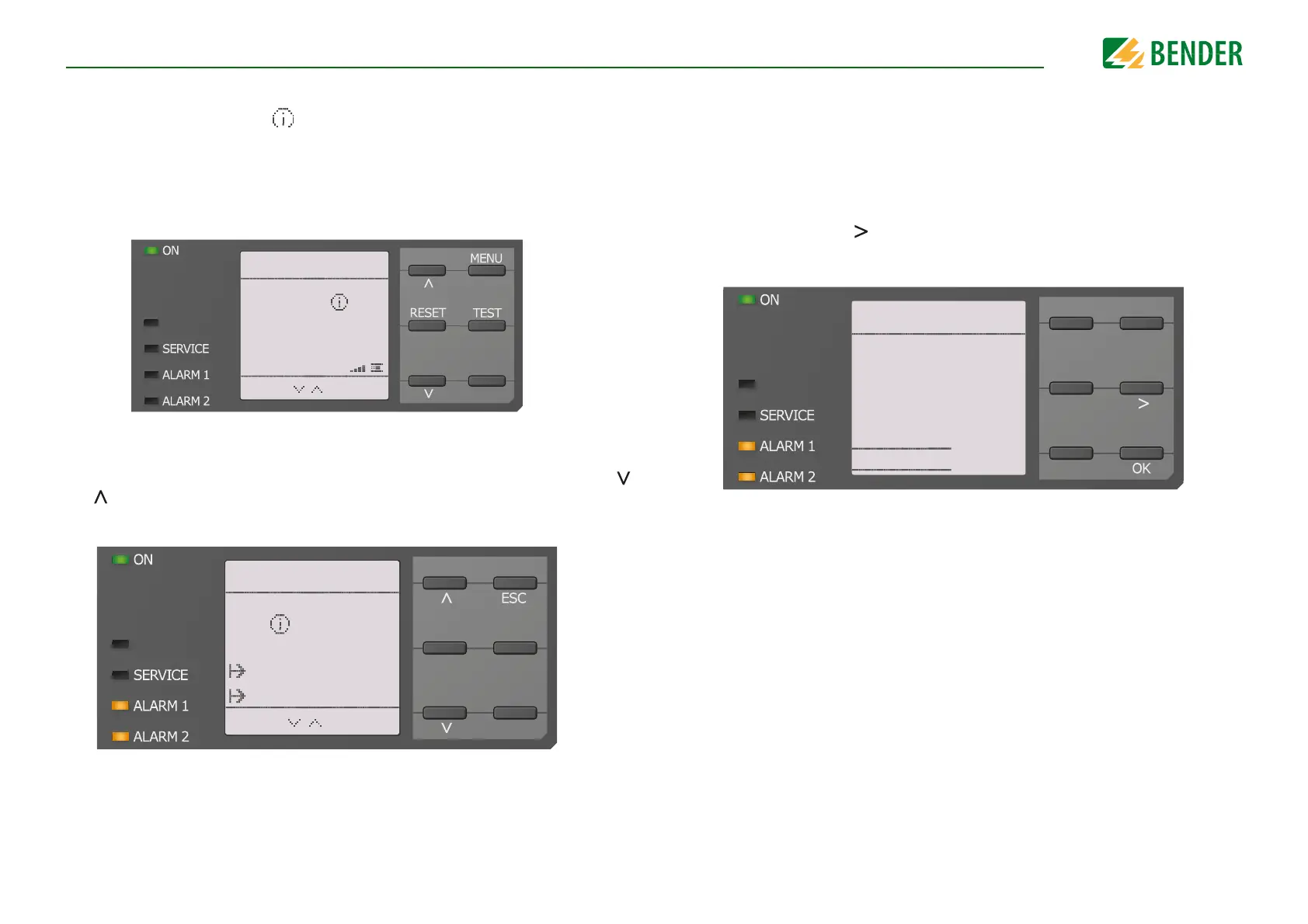

An inactive fault is displayed by . If several faults have occurred, the number of faults
will also be indicated.
The message shown on the display below means that there has been a fault in the past
but the device is no longer in fault condition.
If several fault messages have appeared, you can navigate through the faults using the
and button. In addition to the type of fault and the associated alarm value, you can see
when the fault has occurred and for how long it has been active.
230 kΩ
IT system
3x
1/4
230 kΩ
EDS off
PGH ON
7 kΩ
Insulation fault
28.08.16 17:02
28.08.16 17:18
2/4
7 kΩ
PGH ON
7.4 Acknowledging a fault message
In order to acknowledge the fault message and return to the ISOMETER®'s standard dis-
play, all faults must be acknowledged by means of the reset button.
This means that fault messages can only be reset when the cause of fault has been elim-
inated.
Press the reset button, then and OK to clear the fault memory. The ISOMETER® then re-
turns to the standard display.
RESET 3.2
Reset current
messages? All
messages are
saved in the
history memory.
Cancel
RESET
PGH ON
