Bender ISOMETER iso1685D Series User Manual

CommissioningCommissioning
iso1685DP_D00272_03_M_XXEN/08.2017
24
6.5 Commissioning EDS (only iso1685DP)
Proceed as follows to put into operation an EDS after commissioning the ISOMETER®:
1. Set the mode for the insulation fault location to manual, automatic or 1 cycle. For a
description of the different modes, refer to “Mode” auf Seite 32.
2. Test if the maximum locating current to the EDS is correct and adjust if necessary
(refer to 6.3.7 “Set the EDS current(only iso1685DP)” auf Seite 23).
Menu path: Menu/EDS/Current
In addition to this chapter, commissioning of the ISOMETER® in combination with an EDS
is described in the “Commissioning flow chart insulation faullt location (only iso1685DP)”
auf Seite 21.

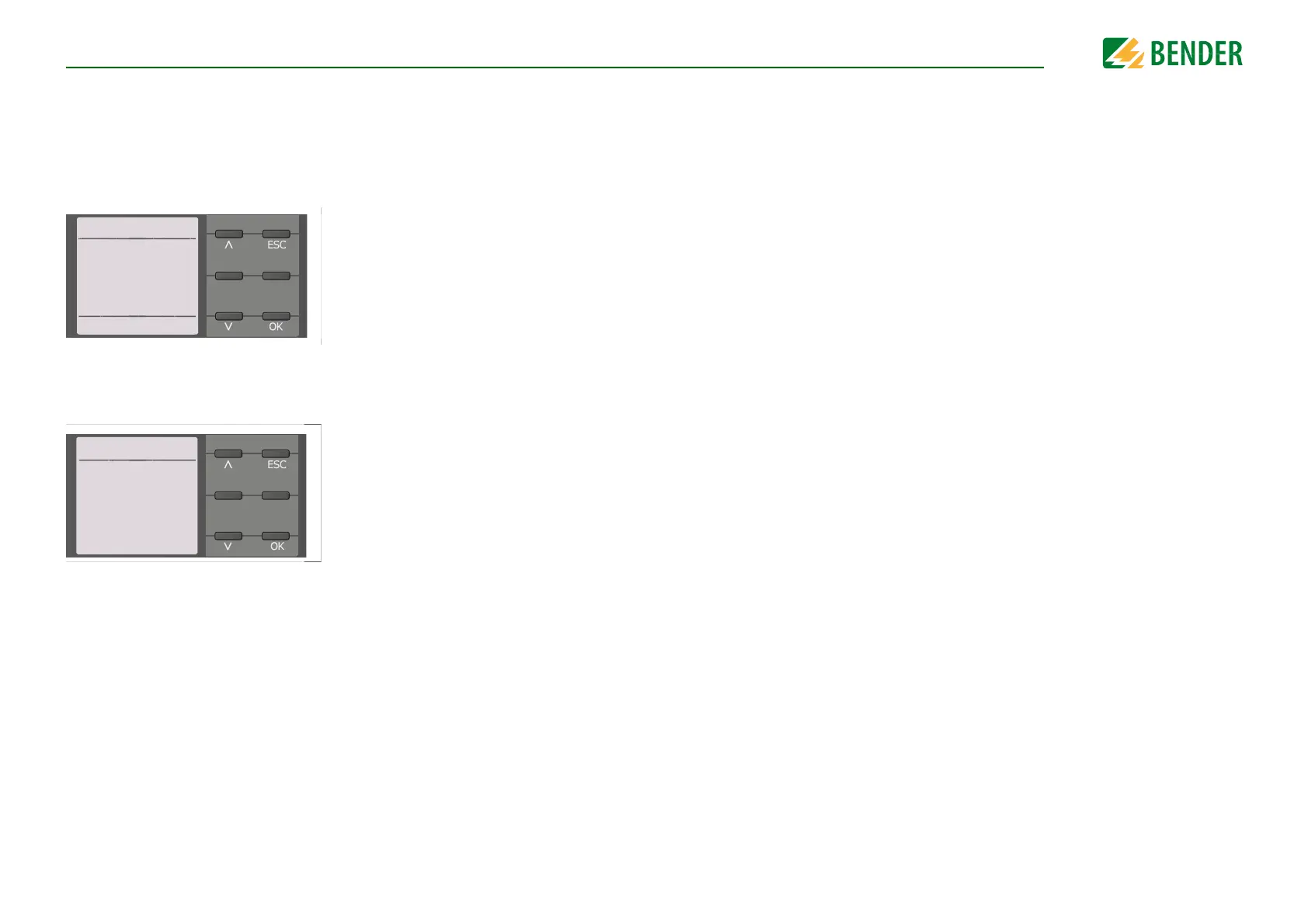

lle
Mode
o off
o
manually
• auto
o 1cycle
6.6.8
lle
Current
6.6.9
o 1mA
o 1.5mA
o 2.5mA
o 3mA
o 10mA
