BENDIX TABS-6 User Manual

28
4S/2M - SIDE CONTROL - Fixed Axles
0 Degree Mounting Orientation
Ignition
Power
Trailer Chassis Harness
Bendix
®
TABS-6
™
Advanced
Multi-
Channel
Bendix
®
SR-5
™
Trailer
Spring Brake
Valve
Trailer ABS Pigtail Harness
ABS Indicator Lamp
5-Pin ABS
Connector
Supply Line
Control Line
Right - “Curb-Side”
Semi-Trailer Tandem Axle Trailer
Left - “Road-Side”
7-Pin SAE J560
Connector
Brake Lamp Power
Ground
“S-D”“S-F”
“S-E” “S-C”
Bendix
®
WS-24
™
Wheel Speed Sensors
Bendix
®
WS-24
™
Wheel Speed Sensors
P21
P22
Air Bellow
(where used)
Load Sensor
(where used)

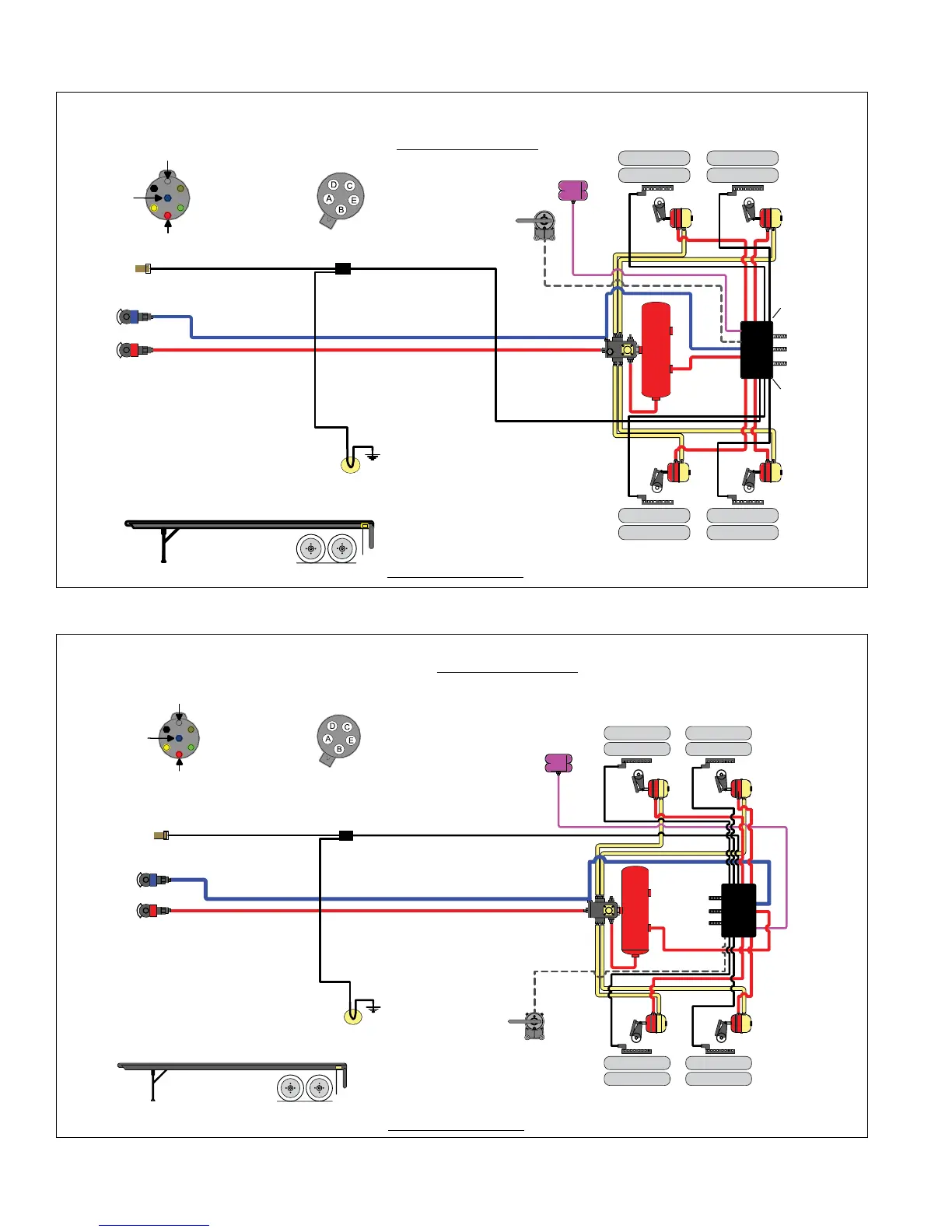

FIGURE 24 - BENDIX
®
TABS -6
™
ADV MC MODULE - 4S/2M SIDE CONTROL (0 DEGREE) ABS ELECTRICAL & AIR SYSTEM
FIGURE 25 - BENDIX TABS-6 ADV MC MODULE- 4S/2M SIDE CONTROL (180 DEGREE) ABS ELECTRICAL & AIR SYSTEM
Troubleshooting: System Schematics
A Brake Lamp Power
B Ignition Power
C NC
D Indicator Lamp
E Ground
4S/2M - SIDE CONTROL - Fixed Axles
180 Degree Mounting Orientation
Ignition
Power
Trailer Chassis Harness
Bendix
®
TABS-6
™
Advanced
Multi-Channel
Bendix
®
SR-5
™
Trailer
Spring Brake
Valve
Trailer ABS Pigtail Harness
ABS Indicator Lamp
5-Pin ABS
Connector
Supply Line
Control Line
Right - “Curb-Side”
Semi-Trailer Tandem Axle Trailer
Left - “Road-Side”
7-Pin SAE J560
Connector
Brake Lamp Power
Ground
“S-E”“S-C”
“S-D”
“S-F”
Bendix
®
WS-24
™
Wheel Speed Sensors
Bendix
®
WS-24
™
Wheel Speed Sensors
P21
P22
Air Bellow
(where used)
Load Sensor
(where used)
A Brake Lamp Power
B Ignition Power
C NC
D Indicator Lamp
E Ground

BENDIX TABS-6 Specifications

General

Type	Trailer ABS Module
Operating Temperature Range	-40°C to +85°C
Protection Rating	IP67
Category	Automobile Accessories
Voltage	12V/24V
Communication	J1587/J1939
Mounting	Frame Mount
Manufacturer	BENDIX
System Type	ABS
Number of Channels	4S/2M
