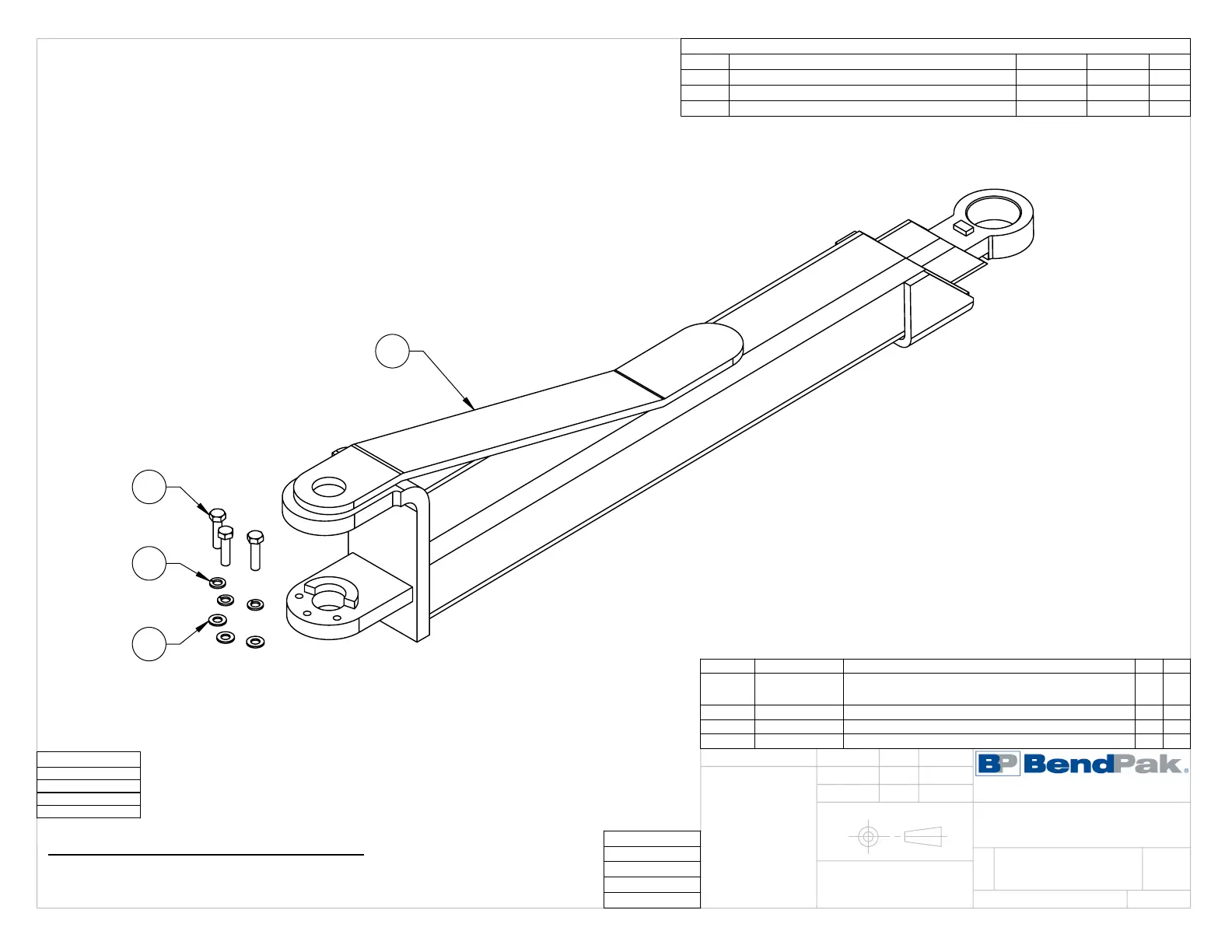

BendPak XPR-10AS Service Manual

DIMENSIONS ARE IN MM
☺
1
2
3
4
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600996
XPR-10AS LOW PROFILE LONG ARM WELDMENT,
R.H.
1 J
2 5545341 WASHER M10 x Ø20 FLAT 3 -
3 5545200 WASHER M10 x Ø18 SL 3 -
4 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 3 -
NEXT ASSEMBLY
5260120
5260234
5260561
5260562
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H UPDATED BOM REVISION 05/01/2018 CA 00943
J UPDATED BOM REVISION 05/30/2018 TM 00953
K UPDATED BOM REVISION AND NEXT ASESMBLY 02/20/2020 TM 01107
WHERE USED
XPR-10AS
XPR-10AS-168
XPR-10AXLS
XPR-10AXLS-181
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
JM
5215286
XPR-10AS LOW PROFILE
LONG ARM ASSEMBLY, R.H.
06/23/2015
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
OR
04/15/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.
