BendPak XPR-10AS Service Manual

DIMENSIONS ARE IN MM
☺
2
1
7
6
4
8
3
5
9
100.0
NEXT ASSEMBLY
5215388
5215389
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600503 XPR-10 LIFT HEAD WELDMENT 1 L
2 5716001 2 POST GUIDE BLOCK 8 G
3 5746098 GP/XPR-9/10 Ø25mm GEAR SHAFT 2 F
4 5701052 GP/XPR ARM INTERNAL GEAR STOP 2 F
5 5540133 GP-7, XPR-9/10 LIFT HEAD SPRING 2 D
6 5505106 SPRING PIN M6 x 50 2 -
7 5540006 SNAP RING TRUARC 5103-100 2 -
8 5580219 KEYRING 56mm x 3mm 2 -
9 5930183 XPR-9/10 LIFT HEAD GUSSET COVER 1 E
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
N UPDATED BOM REVISIONS 03/06/2018 CA 00929
P UPDATED BOM REVISION 05/14/2019 TS 01086
Q UPDATED BOM REVISION 02/20/2020 TM 01107
WHERE USED
XPR-10S SERIES
XPR-10AS SERIES
XPR-10TS SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Q
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215387

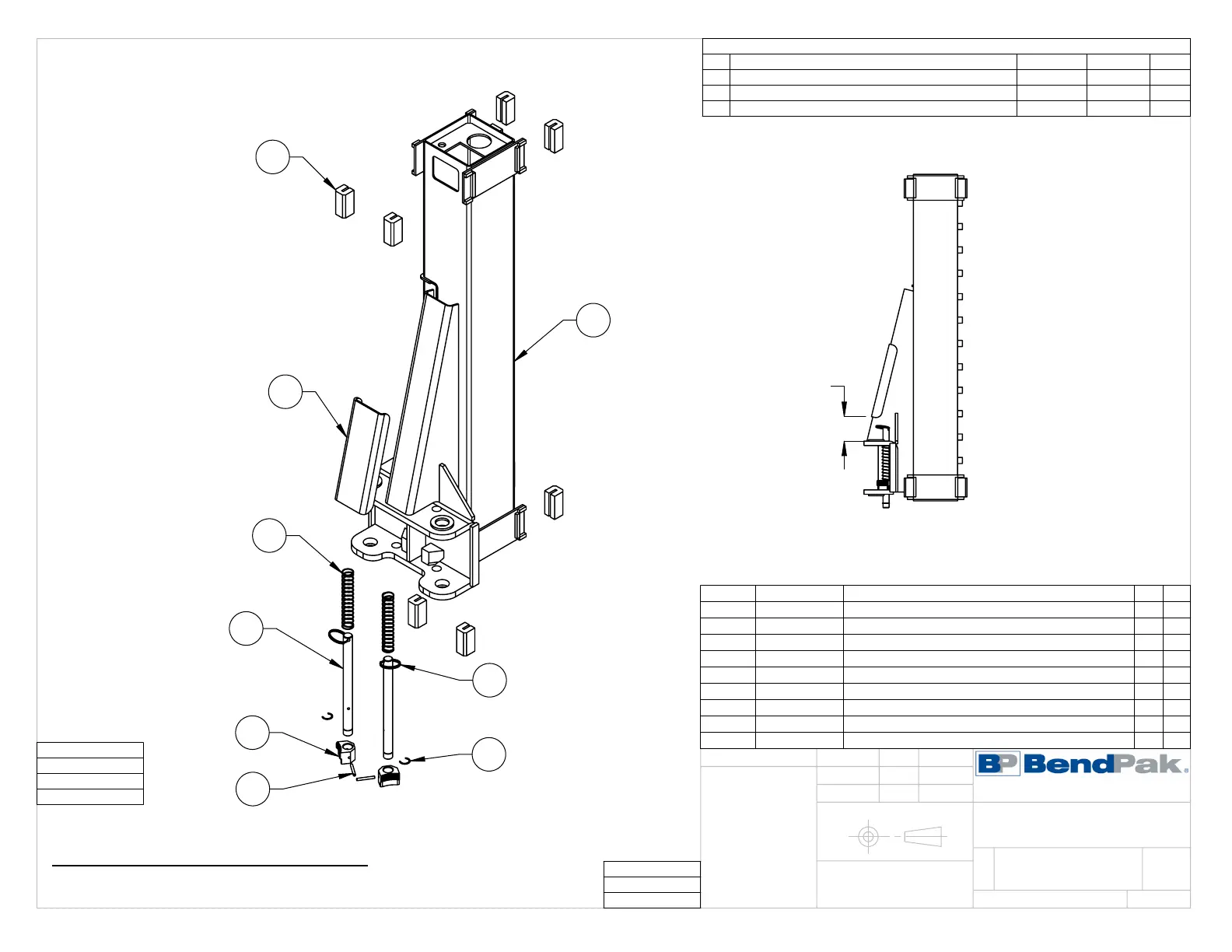

XPR-10 LIFT HEAD
ASSEMBLY
08/30/2010
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
OR 04/15/2020
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.
