BendPak XPR-10AS Service Manual

1219
13 2
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
UPDATED TITLE TO REFLECT WHERE USED,
UPDATED NEXT ASSEMBLIES
01/12/2012 TM 00490
C
C-001
C-002
C-003
UPDATED TITLE TO REFLECT WHERE USED,
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLY
06/21/2013
10/16/2014
11/24/2015
06/25/2018
TM
TM
TM
TM
00605
00663
00738
00964
D
UPDATED TITLE TO REFLECT STANDARDS,
UPDATED NEXT ASSEMBLY
01/15/2020 TM 01107
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570116 Ø10 ID HYDRAULIC HOSE 1144mm* -
2 5550337 FTG ELB -06 CRIMP x -06 JIC 1 -
3 5550336 FTG NPL -06 CRIMP x -06 JIC 1 -
NEXT ASSEMBLY
5250084 5250314
5250087 5250315
5250088
5250089
5250254
5250264
5250266
5250267
5250268
5250269
5250296
5250297
5250298
5250299
WHERE USED
10AP
10AP-168
D2-10/12/15 SERIES
XPR CLEARFLOOR
SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM

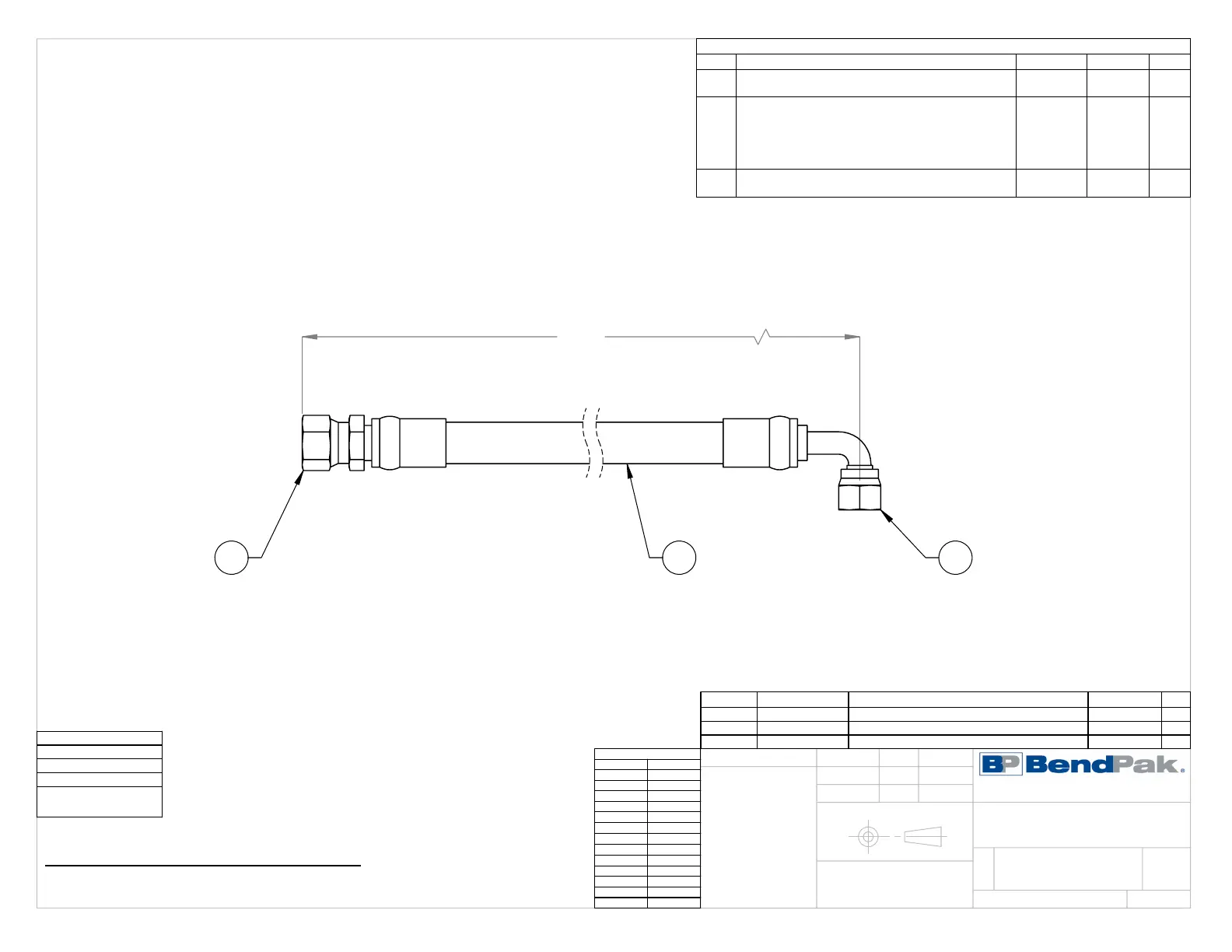

5570017
HYDRAULIC HOSE ASSEMBLY
Ø10 x 1219mm SB
08/27/2009
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 04/17/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
ITEM 1 QTY FOR REFERENCE ONLY 2.
