BendPak XPR-10AS Service Manual

DIMENSIONS ARE IN MM
☺
1
2
3
4
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV

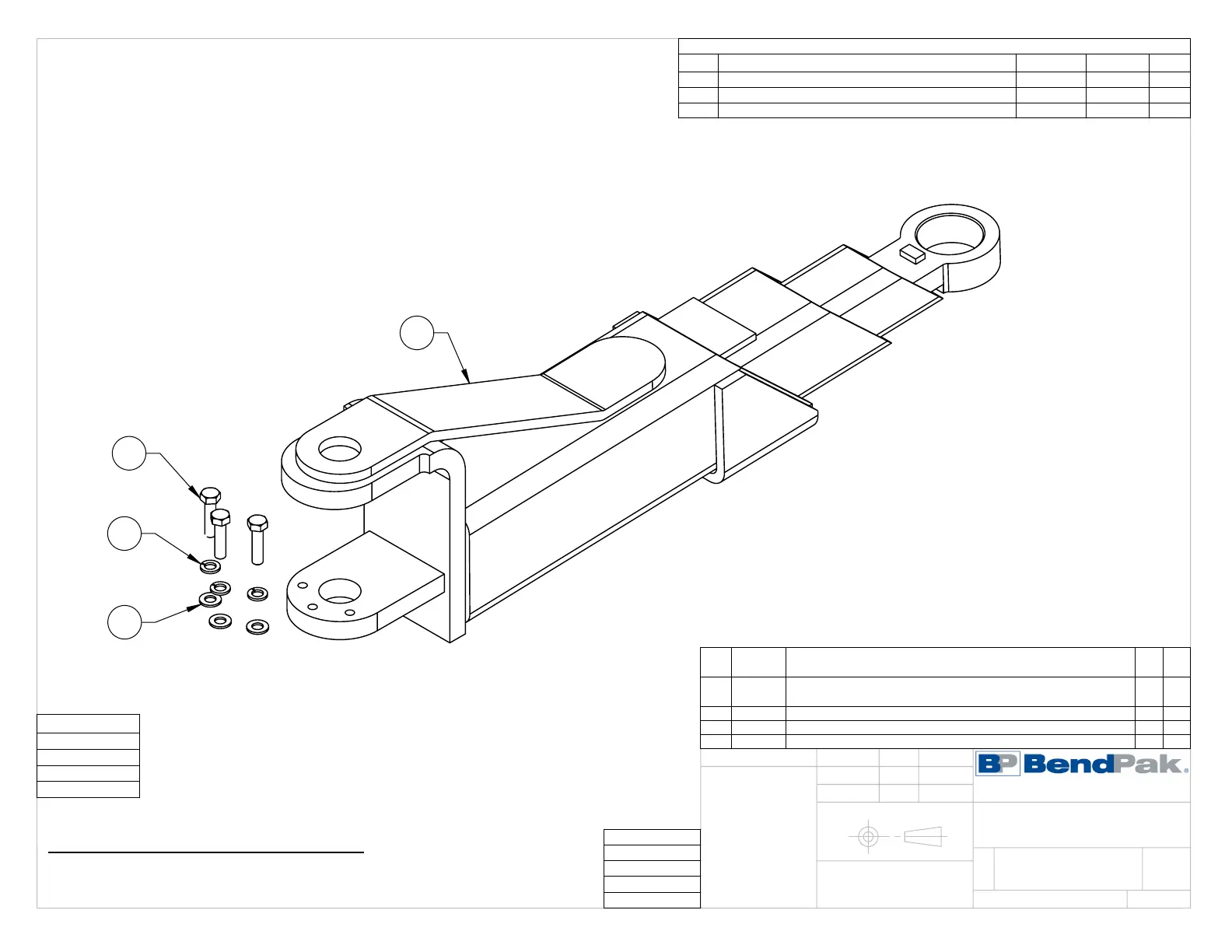

1 5600994
XPR-10AS LOW PROFILE TRIPLE TELESCOPING ARM
WELDMENT
1 K
2 5545341 WASHER M10 x Ø20 FLAT 3 -
3 5545200 WASHER M10 x Ø18 SL 3 -
4 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 3 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
J UPDATED BOM REVISION AND NEXT ASSEMBLY 05/01/2018 CA 00943
K UPDATED BOM REVISION 05/30/2018 TM 00953
L UPDATED BOM REVISION AND NEXT ASSEMBLY 02/20/2020 TM 01107
NEXT ASSEMBLY
5260120
5260234
5260561
5260562
WHERE USED
XPR-10AS
XPR-10AS-168
XPR-10AXLS
XPR-10AXLS-181
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
L
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
JM
5215284
XPR-10AS LOW PROFILE
TRIPLE TELESCOPING ARM
ASSEMBLY
06/22/2015
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
OR 04/15/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.
