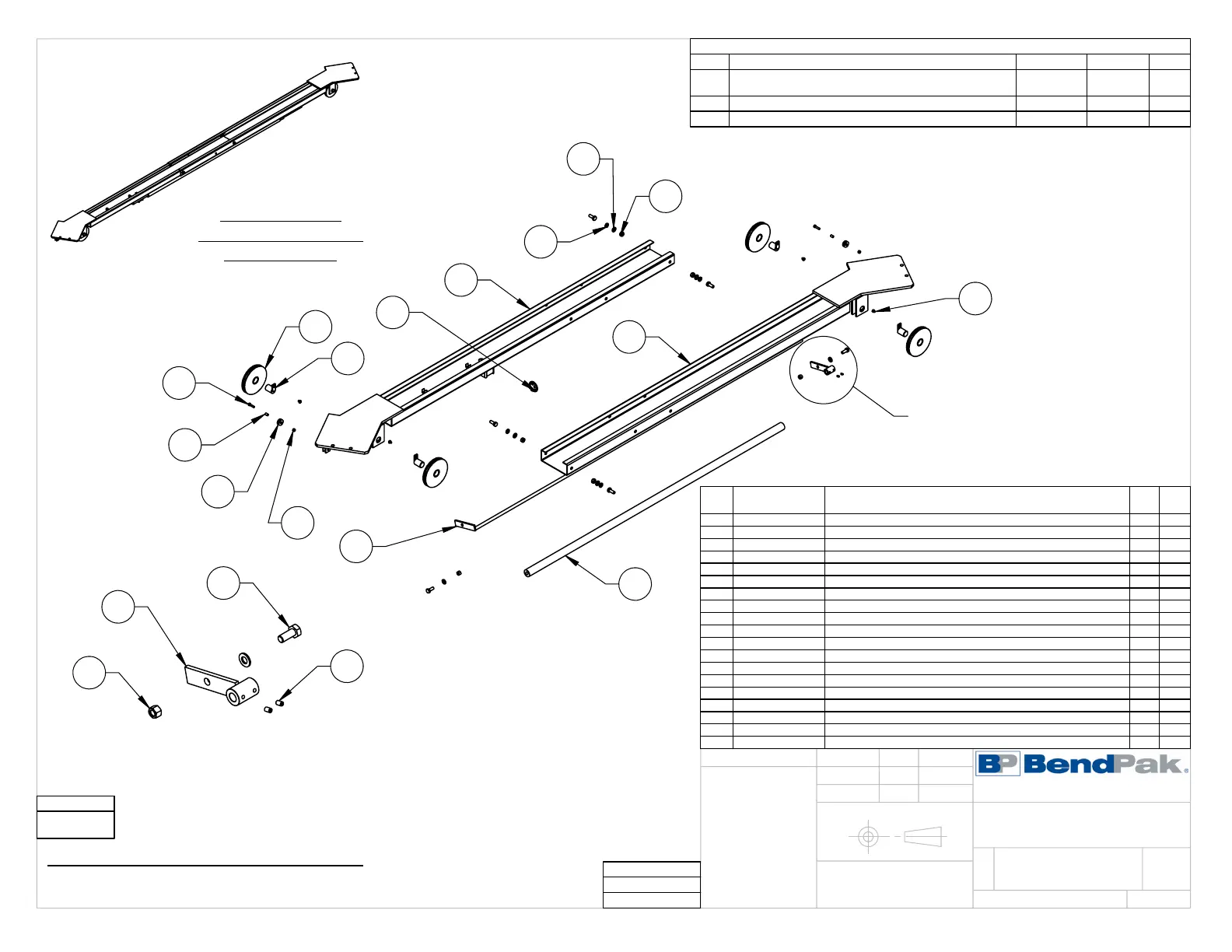

DIMENSIONS ARE IN MM
☺
A
2
12
15
18
13
6
11
4
1
5
3
8
17
19
7
DETAIL A
SCALE 1 : 6
9
16
10
14
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM
NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5600926
XPR-10A INNER TOP TROUGH WELDMENT
1
C
2 5600925
XPR-10A OUTER TOP TROUGH WELDMENT
1
C
3 5565350
D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE SPACER
2
C
4 5575112
D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE
2
C
5 5575111
D2-8F, XPR-9/10 SHEAVE ASSEMBLY
4
G
6 5620141
XPR-9/10 CABLE SHEAVE PIN WELDMENT
4
F
7 5530030
HHB M6 x 1 x 8
4
-
8 5530756
HHB M6 x 1 x 25
2
-
9 5530738
HHB M10 x 1.5 x 25
6
-
10 5535013
NUT M10 x 1.5 NL
2
-
11 5535357
NUT M6 x 1.0 NL
2
-
12 5545341
WASHER M10 x Ø20 FLAT
6
-
13 5580211
STEEL HOLE PLUG 1 1/4"
1
-
14 5620445
XPR TRIP STOP BAR SLIDER WELDMENT
1
C
15 5300815
10AP/D2/XPR STOP BAR CUSHION
1
D
16 5530055
SSS M6x1x10
2
-
17 5545200
WASHER M10 x Ø18 SL
4
-
18 5535998
NUT M10 x 1.5
4
-
19 5600501
XPR-10/10A MICROSWITCH STOP BAR WELDMENT
1
B
NEXT ASSEMBLY
5245044
5245045
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
B
UPDATED TITLE TO REFLECT MARKETING,
UPDATED BOM REVISION
11/23/2015
TM
00738
C
UPDATED BOM REVISION
11/02/2017
TM
00900
D
UPDATED BOM REVISION
03/29/2021
TM
01291
WHERE USED
XPR-10A
SERIES
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5210211
XPR-10A TOP TROUGH
ASSEMBLY
10/07/2014
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
OR
03/31/2021
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ASSEMBLE ITEMS AS SHOWN
2.
