BendPak XPR-10AS Service Manual

DIMENSIONS ARE IN MM
☺
NEXT ASSEMBLY
5260560
5260562
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5174518 D2-12/15, XPR CLEARFLOOR PARTS BAG 1 N
2 5505116 D2-8F, XPR-9/10 LIFT HEAD PIN WELDMENT 4 D
3 5595073 CABLE ASSEMBLY Ø10 x 9999mm DBST 1 D
4 5595072 CABLE ASSEMBLY Ø10 x 10115mm DBST 1 D
5 5570832 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 2299mm SB 1 F
6 5570017 HYDRAULIC HOSE ASSEMBLY Ø10 x 1219mm SB 1 D
7 5595047 Ø2.4 x 7747 SAFETY CABLE 1 F
8 5570058 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 8090 SB 1 C
9 5570065 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 203mm DS 1 D
10 5210196 D2/XPR POWER SIDE INCLINED SAFETY ASSEMBLY 1 C
11 5210010 D2/XPR OFF SIDE SAFETY WELDMENT 1 F
12 5715003 POWER UNIT VIBRATION DAMPENER 1 B
13 5215704 ROUND ADJUSTABLE LIFT PAD ASSEMBLY 4 H
14 5701631
XPR-10 POST ASSEMBLY LIFT HEAD FOOT GUARD
2 B
15 5736604
TWO POST LIGHT DUTY BOLT ON ARM RESTRAINT GEAR
4 E
16 5716173
D2-8/12/15, GP/XPR POWER SIDE PLASTIC SAFETY COVER
1 B
17 5716174
D2-8/12/15, GP/XPR OFF SIDE PLASTIC SAFETY
COVER
1 B
18 5746192 ARM ADAPTER, MEDIUM 4 E
19 5540281 C RING Ø38mm OD 5103-150 4 -
20 5746167 DOUBLE THREADED ROD M10 x 1.5 x 275 2 B
21 5716634 D2/10AP/XPR MICROSWITCH COVER, PLASTIC 1 B
22 5550095 FTG NPL -04 JIC x -04 JIC 1 -
23 5530337 AB 3/4" x 6.3" 12 -
24 5525150 SPDT MICRO SWITCH;25A@125VAC 1 -
25 5525112 MICRO SWITCH COVER-5PA2 1 -
26 5520116 14-4 SJO UL 62 CABLE 300vac 3635mm* -
27 5900951 XPR-10S SERIES INSTALLATION MANUAL 1 -
28 5701660 10AP/D2-12/15/XPR HEIGHT ADAPTER HOLDER 2 B
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D
ADDED 5701660, REMOVED 5535358 AND
5545342, UPDATED BOM REVISION
02/24/2020 TM 01107
E UPDATED BOM REVISION 10/05/2020 TM 01215
F UPDATED BOM REVISOIN 06/22/2021 TM 01310
WHERE USED
XPR-10AS
XPR-10AS-LP
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5250084

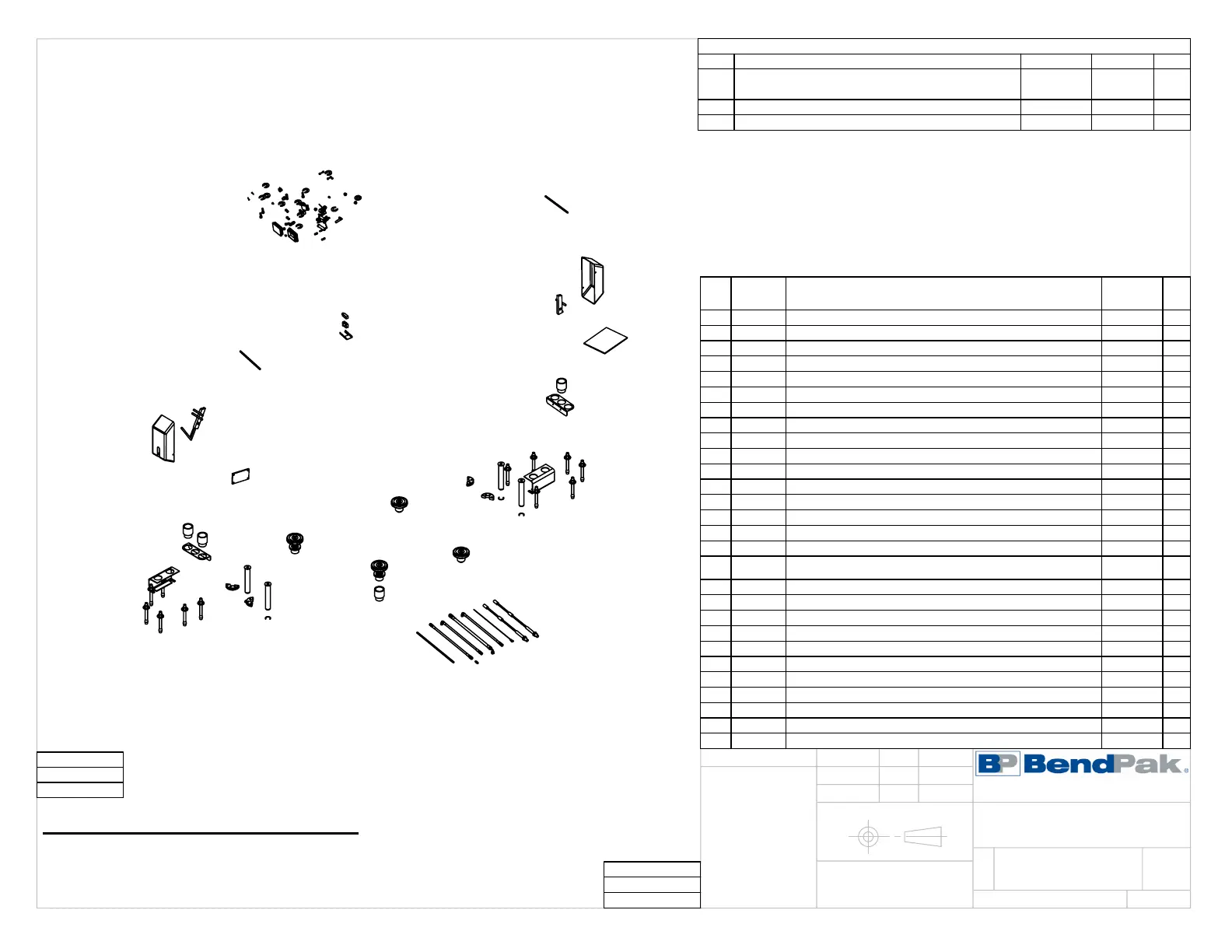

XPR-10AS PARTS BOX
10/11/2018
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
OR 07/01/2021
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
HOSES AND CABLES IN REPRESENTATIONAL FORM 2.
FOR 5220116 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 3.
(*)5520116 QTY FOR REFERENCE ONLY
NOTE: UNLESS OTHERWISE SPECIFIED .
