BendPak XPR-10AS Service Manual

9955.0
9999.0
203.0
18.0
9752.0
19.5
44.0
3
1
2
4
5
ITEM NO. PART NUMBER DESCRIPTION QTY REV
1 5595011 CABLE, LIFTING Ø10mm 9939mm* -
2 5746022 Ø10 THREADED CABLE CONNECTOR 1 D
3 5746021 Ø10 CABLE END CONNECTOR 2 E
4 5545342 WASHER M18 FLAT 1 -
5 5535358 NUT M18 x 2.5 NL 1 -
NEXT ASSEMBLY
5250084
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
UPDATED TITLE TO REFLECT MARKETING,
UPDATED NEXT ASSEMBLY
12/01/2015 TM 00738
C UPDATED BOM REVISION 11/02/2017 TM 00900
D
UPDATED TITLE TO REFLECT STANDARD, ADDED
5535358 AND 5545342
02/24/2020 TM 01107
WHERE USED
XPR-10AS
XPR-10AS-LP
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM

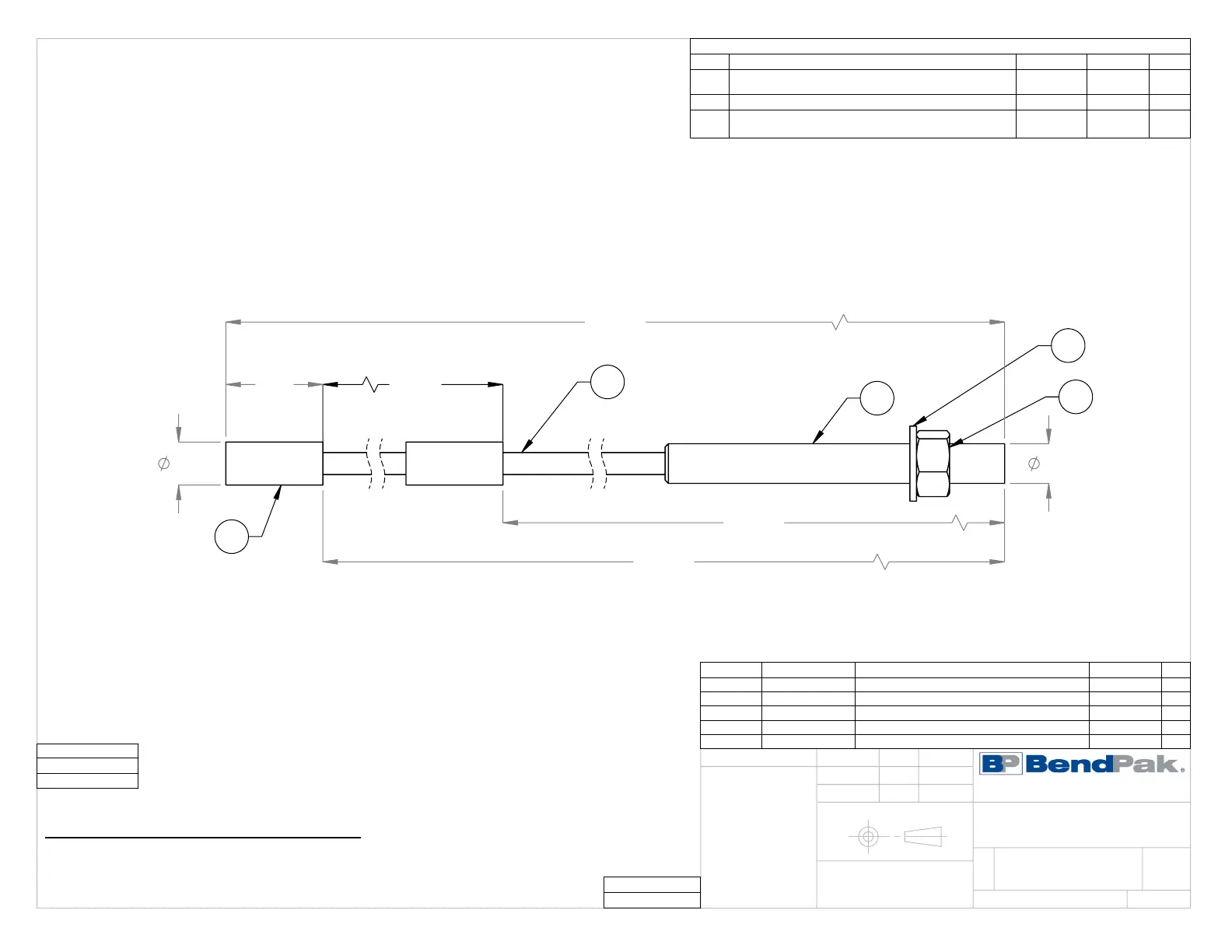

5595073
CABLE ASSEMBLY
Ø10 x 9999mm DBST
10/07/2014
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 04/09/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
LENGTH SHOWN IS AFTER SWAGING 2.
ITEM 1 QTY FOR REFERENCE ONLY 3.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT 4.
