Benelli TRK 502 User Manual

TRK 502/ 502X
11

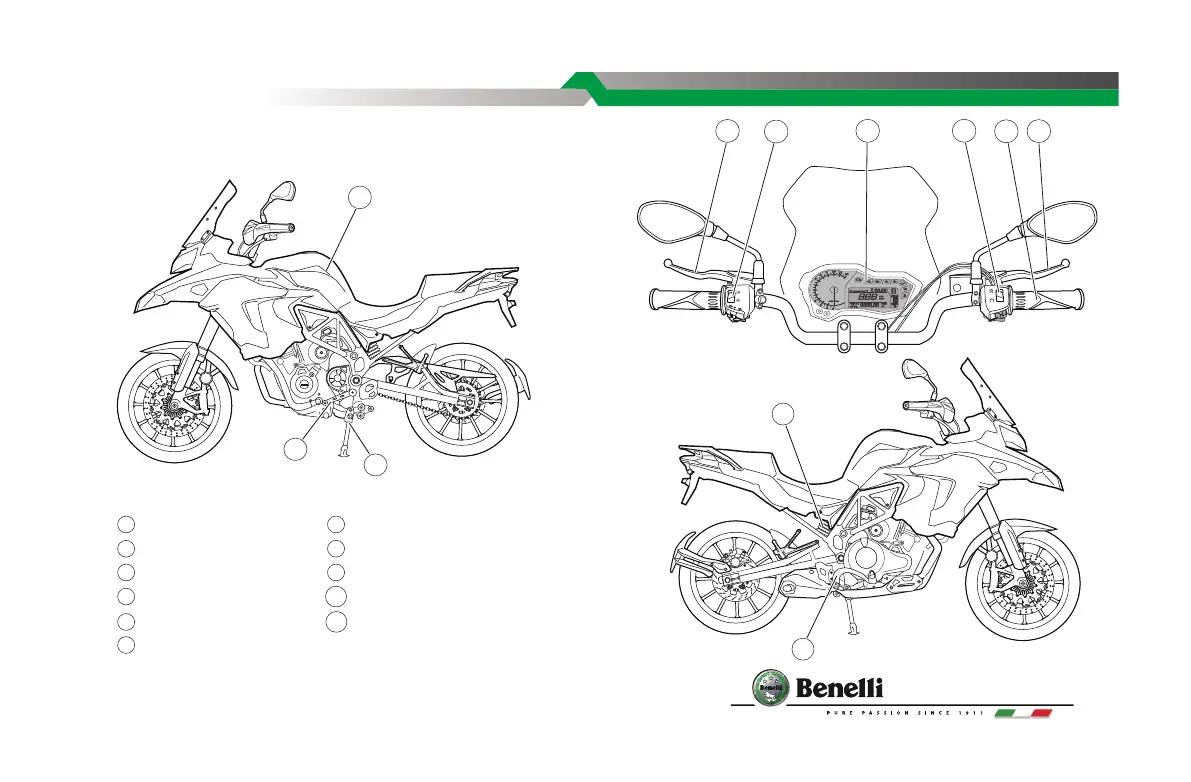

LOCATION OF PARTS
1 Clutch lever
2 Left handle switch
3 Meter
4 Right handle switch
6 Front brake lever
5 Throttle grip
7 Rear shock absorber
8 Rear brake pedal
9 Shift pedal
10 Side stand
11 Tank
On-Road Version (A)
Left view
1
4
5
2
6
3
11
9
10
7
8
Right view

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
