TRK 502/ 502X
18

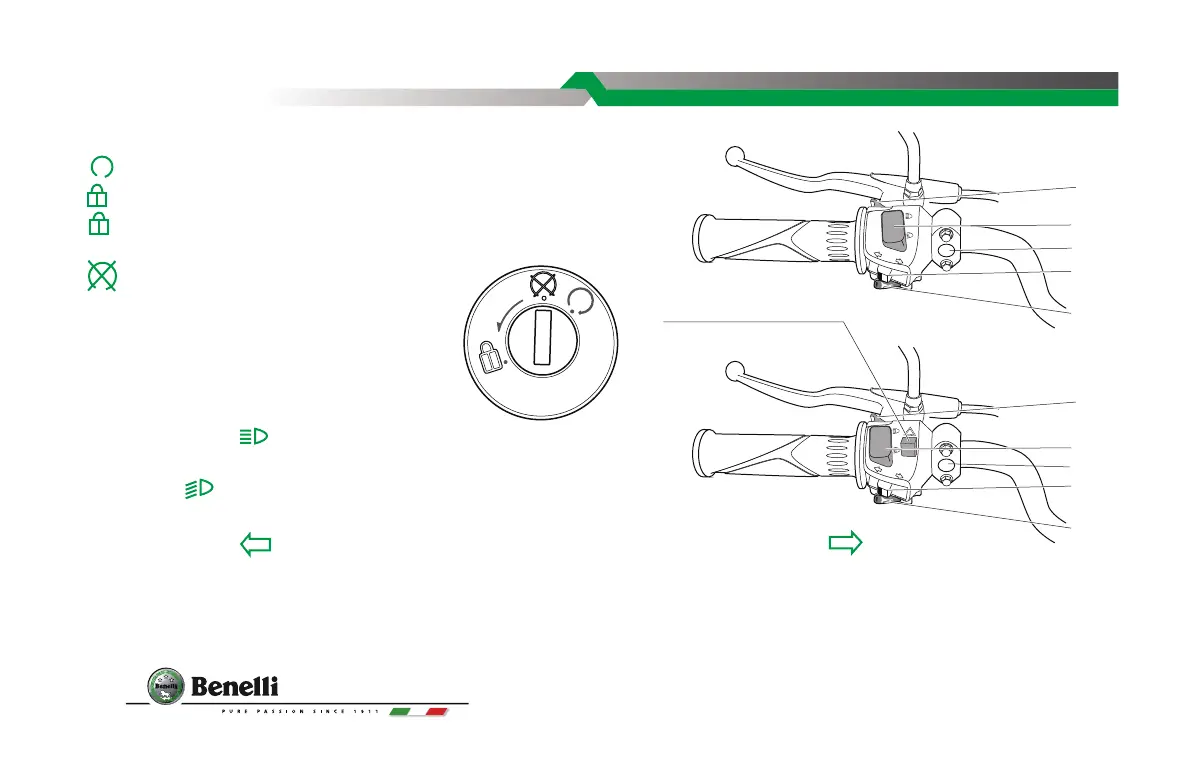

“ ”（On） position: The circuits are on
“ ” Position: turn left to the maximum, press the key to the position
of “ ”. Take out the key. In this condition, the vehicle has been locked.
If you want to unlock the vehicle, insert the key and turn clockwise.
“ ”（O）position: All the circuits are o.
1. HORN BUTTON
Press down on the button,to activate the horn.
2. HIGH & LOW BEAM SWITCH
Turn the switch to " " position, the high beam of headlamp turn
on and the indicator lamp on the meter would also turn on; turn
the switch to " " position, the low beam of headlamp turn on.
3. DIRECTION INDICATOR LAMP SWITCH
Turn the switch to " " position, the left direction signal lamp ashes; turn the switch to " " position, the
right direction signal lamp ashes. And the indicator lamps would turn on accordingly.
4. PASSING SWITCH
When passing other vehicles, press this button so the high beams of the headlamp would ash to alarm the
vehicles in front of you.
PRIMARY PARTS
P
U
S
H
KEY SWITCH
2
4
3
5
5
1
2
4
3
1
7. HIGH BEAM INDICATOR LAMP
When the high beam lamp of the headlamp turns on, the high
beam indicator lamp would be on.
8. NEUTRAL INDICATOR LAMP
When the transmission is in the neutral, the indicator lamp
would be on.
9.ENGINE OIL PRESSURE WARNING LAMP
When this indicator light up, that means the bike has the risk of
insufficient lubrication and should be checked/
repaired immediately.
10. CLOCK
It shows the time.
11. GEAR INDICATOR LAMP
Numbers on the meter indicate the gear positions of the
vehicle including 1, 2, 3, 4 ,5,and6.
12.ODOMETER & TRIP METER
Relative mileage (TRIP): it records the mileage the vehicle
covers in a period of time.Odometer (TOTAL): it records
the total mileage the vehicle has covered in km.
or
LEFT HANDLE (A)
HAZARD SWITCH
