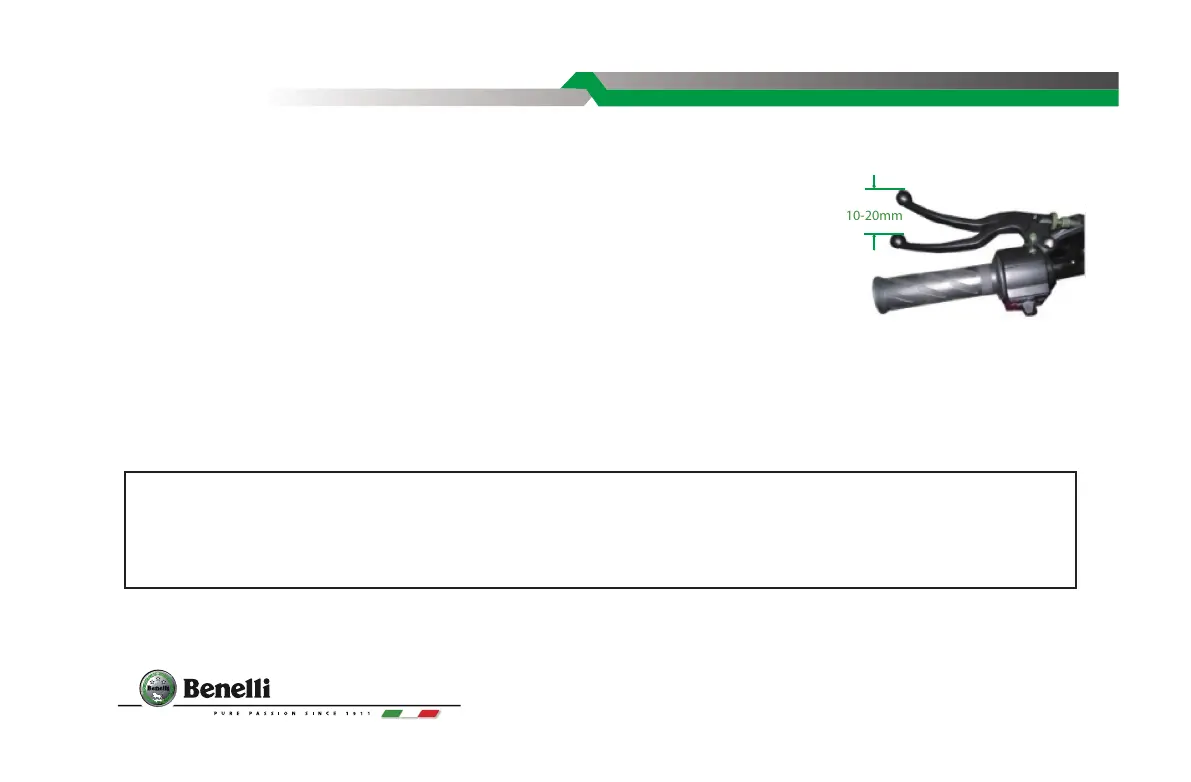

CLUTCH ADJUSTMENT
The free play of clutch is measured from the free status of the lever, to
the engagement point of the clutch the standard should be 10-20mm.
Adjust in following methods, if anything abnormal.
(1) Loose the locknut.
(2) Screw in or out adjusting bolt and adjusting screw to make required free play.
(3) Tighten locknut
CHAIN ADJUSTMENT
Adjust the tightness of drive chain for driving each 1000km's in following methods to reach the free play of
28~35mm. Make regular adjustment of the chain according to your driving condition.
INSPECTION BEFORE DRIVING
Warning：Suggestions here are for regular maintenance schedule it's recommended for inspection
and adjustment of the chain before each driving. Accident as chain detaching or serious damage on
engine can be caused by excessively slack chain.
10-20mm

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
