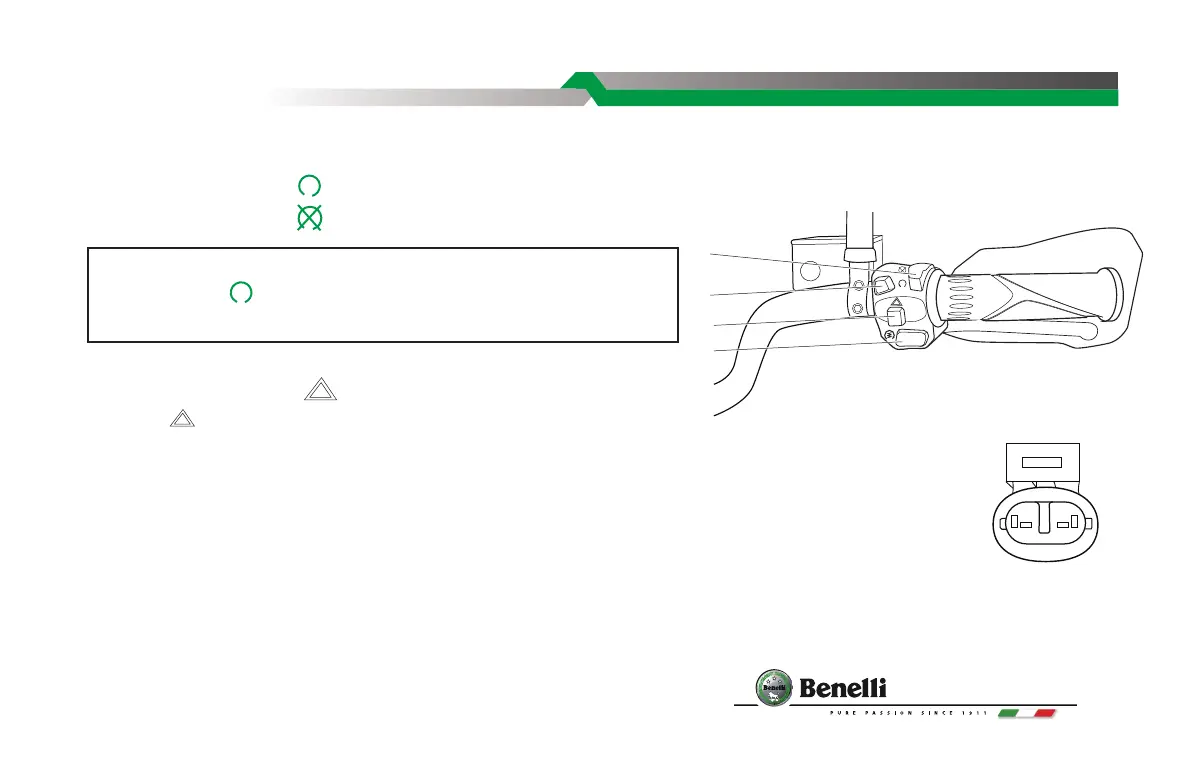

RIGHT HANDLE (B)
1. ENGINE STOP SWITCH
When the switch is on " " position and the power is on, the engine runs.
When the switch is on " " position and the power is o, the engine will not run.
2. HAZARD SWITCH” ”
Turn to “ ” and the four direction signal lamps would flash to warn
for emergency situation;turn to "●" for daytime driving.
3. ELECTRIC STARTER BUTTON
Pull the clutch lever or put in Neutral gear and press the button to run the
electric motor and start the engine.
4. HANDLEBAR HEATING BUTTON (IF EQUIPPED)(THE MAXIMUM CURRENT IS 2A)
Press the button to heat the handlebar, press again to stop heating.
PRIMARY PARTS
Note：Under normal conditions, this switch shall be
on "Operate" ( ) position. Use this switch under
emergency situation, for example accident or key switch problems.
1
2
4
3
Handlebar Heating Connector

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
