Benelli TRK 502 User Manual

TRK 502/ 502X
49
FUSE REPLACEMENT
The fuse is beside the battery. Frequent
blowing of fuse indicates short circuit or over
loading. Contact with the authorized dealer
for proper repairing.
Use the fuses for the same specication as indicated.
INSPECTION& MAINTENANCE
Notice:
The new bulb installed must in the same
specication with the old one. High-power
bulb will increase load to circuit system
which will cause faults such like battery
power shortage.
Warning:
It's dangerous to use other specications
of fuse, which would result severe failures
like burning, ring.
15A
15A
15A
15A
10A
15A
10A
15A15A
or
FUEL
PUMP
FAN
POWER
LOCK
ECU
HEAD
LIGHT
IGNITION
COIL
15A
15A
15A
10A
15A
10A
15A15A
FUEL
PUMP
FAN
POWER
LOCK
ECU
IGNITION
COIL

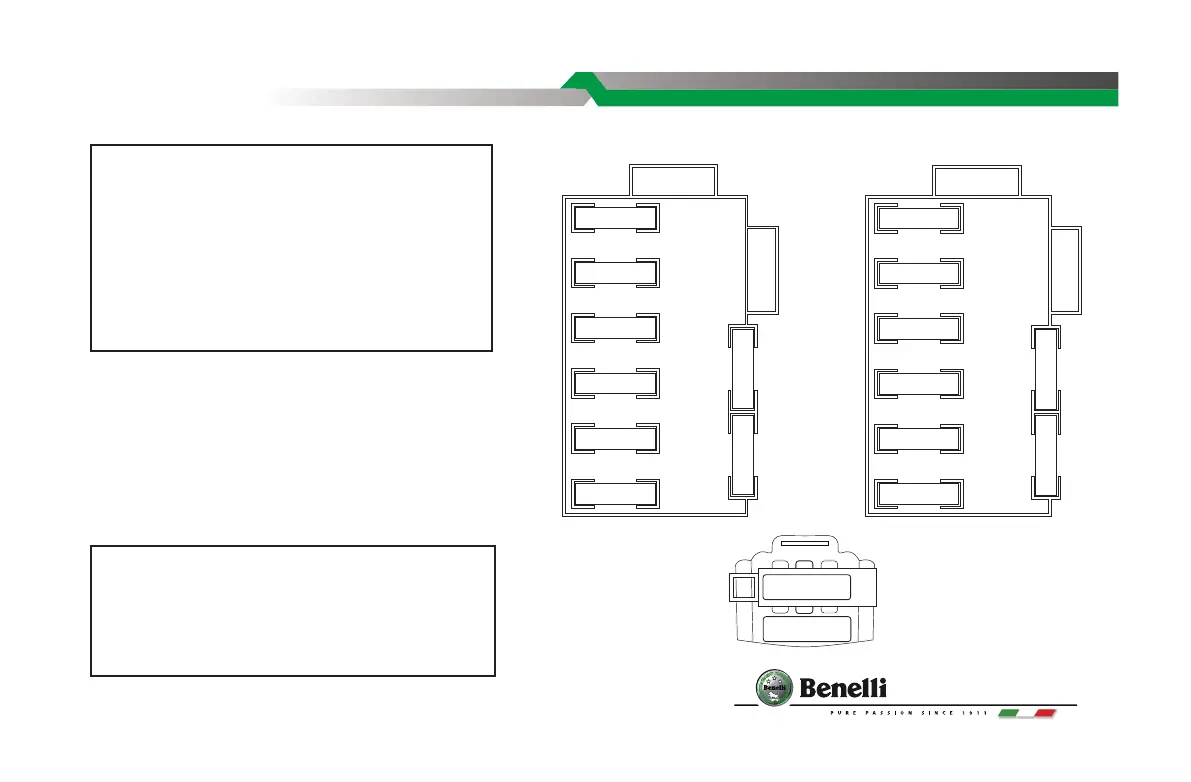

With Headlight SwitchWithout Headlight Switch
40A
40A
ABS fuse

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
