5.3.3 Installation
Install the brake rotor and the front wheel.
Install the front brake hose assembly and the brake cylinder
assembly. Do not stain the brake pads and the brake rotor with
grease.
* Note
Any grease on brake pads will
reduce the brake performance and
even lead to failure.
Tighten the bolts and nuts to the required torque force.
Torque force:
Fixing bolts for the brake rotor 22-29 N·m
Mounting bolts for the front brake pads assembly
①
22-29 N·m

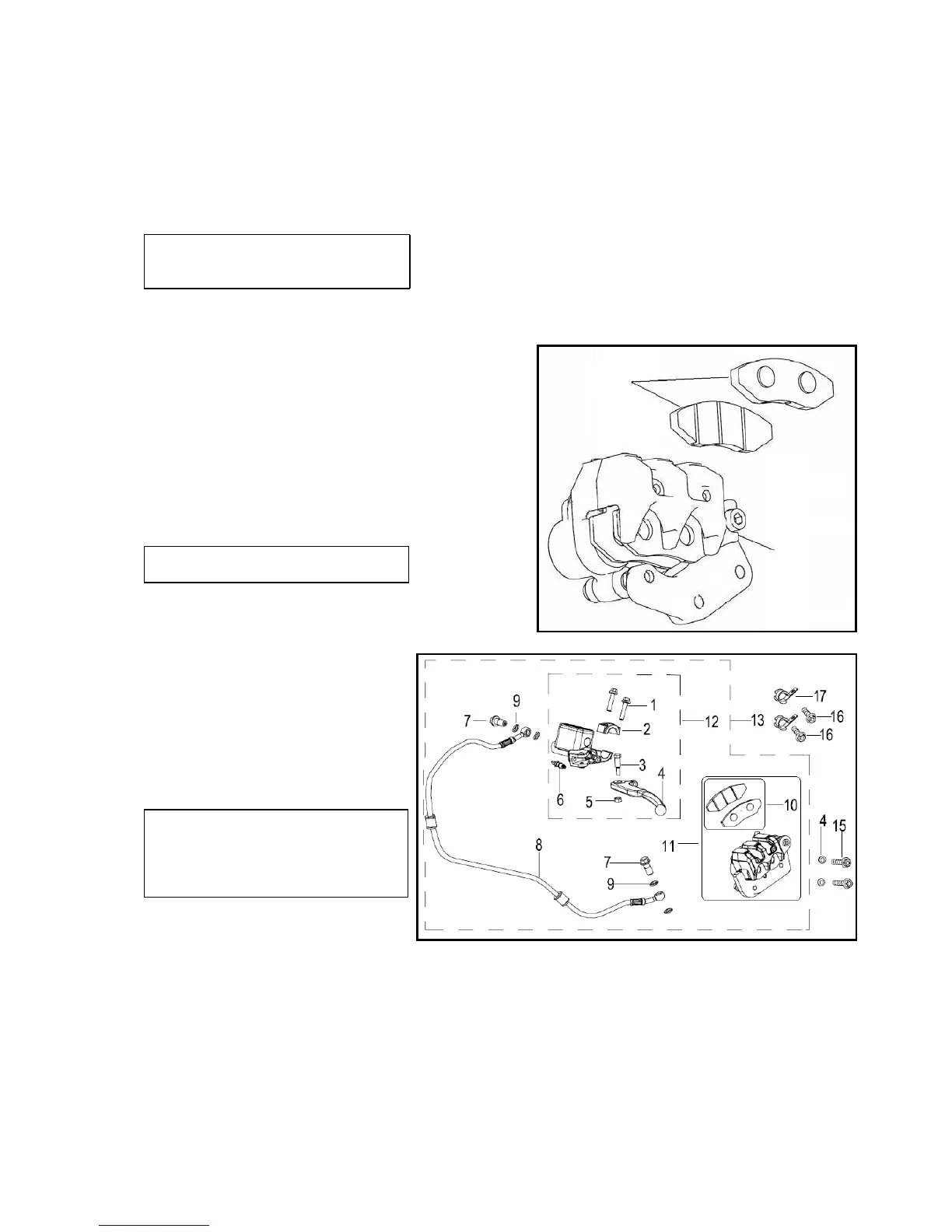

Do not stain brake pads with oil spots.
Use brake cleaning agent to clean brake pads with
oil spots.
①：brake pad ②：brake cylinder
* Note
Any oil spots on brake pads will
reduce brake performance.
②
5.4 Rear Brake Rotor
5.4.1 Disassembly
Remove the body guard.
Remove the rear brake cylinder
assembly.
Remove the rear wheel.
Remove the brake rotor from the rim of
the rear wheel.
* Note
• Replace the brake pad assembly.
• If the brake pads will be used
again, mark it before disassembly
so as to reinstall it at the original
place.
Remove following assemblies from the
rear wheel.
Rear brake:
1.Brake block
assembly
2.Rear brake tube
3.Brake cylinder
4. Rear fluid brake plate
5. Rear fluid tube clamp
