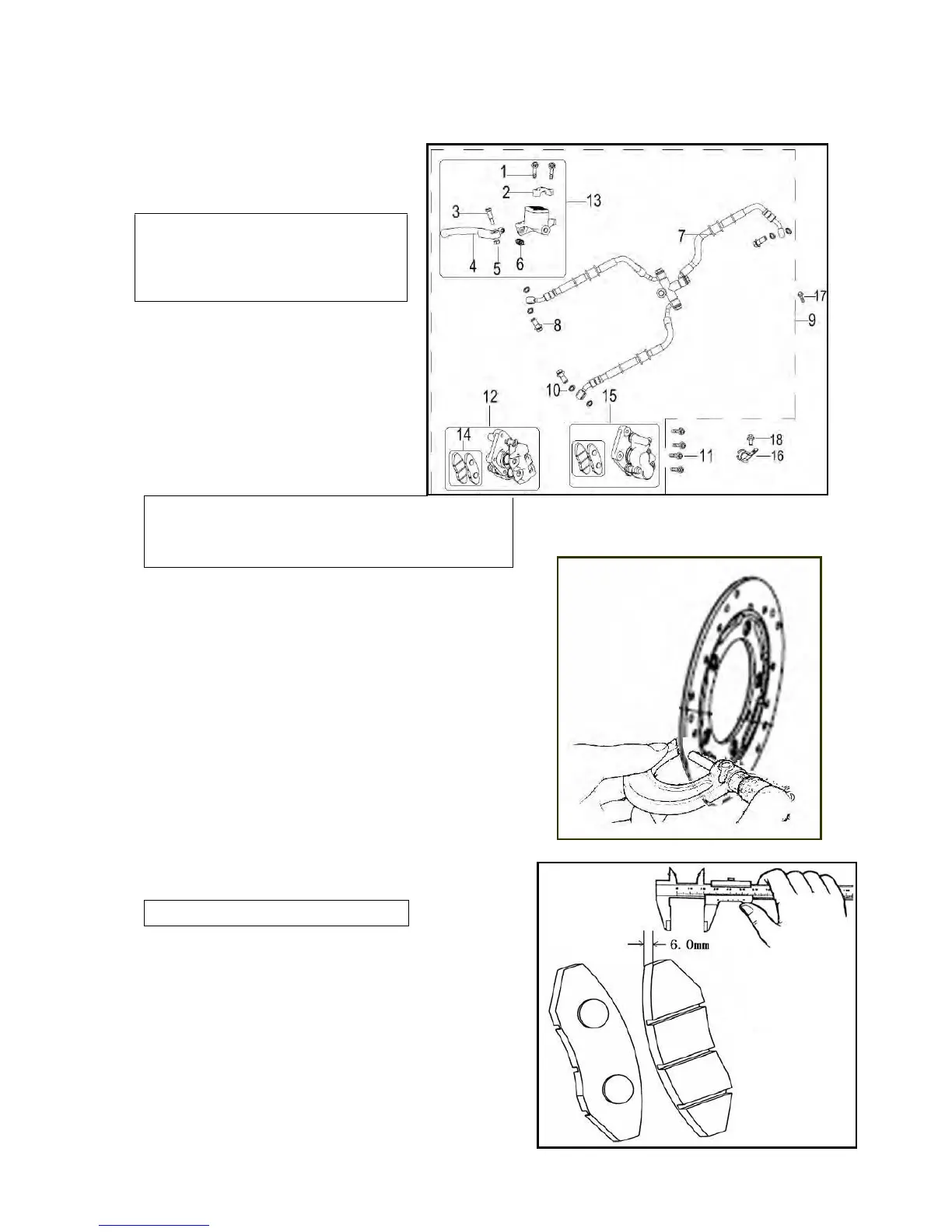

5.3 Front Brake Assy.
5.3.1 Disassembly
* Note
• Replace the brake pad assembly.
• If the brake pads will be used
again, mark it before disassembly
so as to reinstall it in the original
place.
Remove the following assemblies from
the front absorber.
Front brake:
1. brake cylinder assembly
2. front brake hose assembly
3. brake pad assembly
4. connecting bracket of the front brake
* Note
• Do not stain the brake assembly with oil spots
during installation or disassembly.
• Clean it with required cleaning agent to maintain
the brake performance.
Loosen fixing bolts for the brake cylinder assembly.
Remove the brake cylinder assembly from the front
absorber. Remove the front wheel spindle.
Remove the front wheel.
Remove the brake disc from the front wheel.
5.3.2Check
Check whether brake pads are abraded. Replace it if
necessary. Measure the brake pad and the brake rotor.
Record maximum values.
Specification
Diameter of the front brake rotor
φ250mm
Thickness of the front brake rotor
5.0mm
* Note
•Measurement with a micrometer.
If the thickness of the brake rotor or the brake pads are
below the required value for maintenance or it is stained
with grease, please replace it.
Limit for use:
brake pads 3.0mm
brake rotor 3.0mm
Note: replace brake pads in pairs.
