SOLENOID VALVES

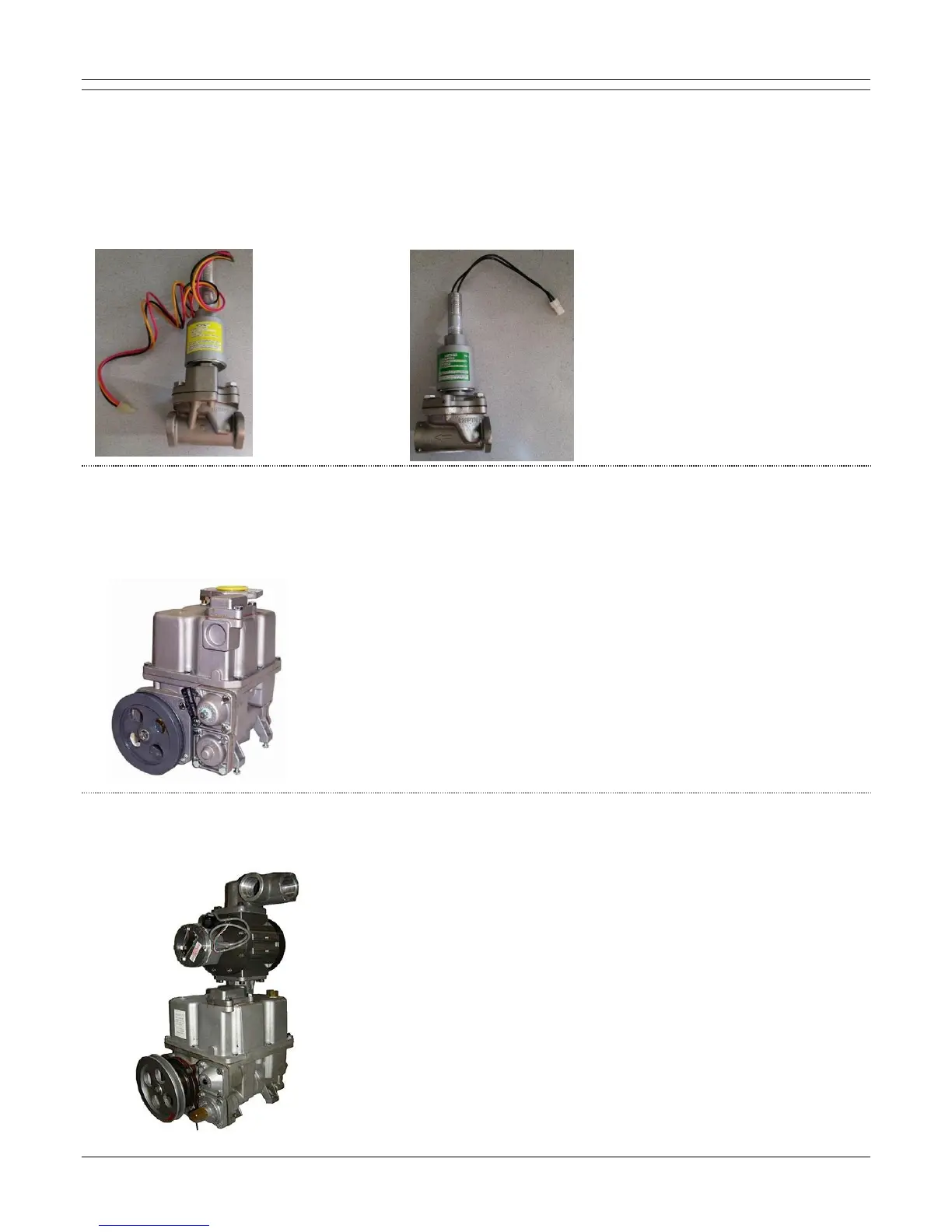

There are two types of solenoid valves available. The standard flow series dispensers uses a 1” proportional valve (2-wires) and the Big
Fueler (High Flow) dispenser uses a 1-1/2” 2-stage solenoid valve (3-wires).
The valve is used to control product flowing through a hose. It prevents the unauthorized dispensing from a hose that is not authorized. It
is also used to slow down the flow towards the end of a pre-pay or preset sale. There is one valve on the output of every meter.
Note: For the Satellite unit in a Master / Satellite high flow system, the valve in the satellite operates off 120 VAC. However, the valve
in the Master unit operates off +24 VDC.
TYPE 75 PUMPING UNIT (STANDARD FLOW)
The Bennett Type 75 pumping unit is used to pump fuel at two standard flows of 22-gpm (80-lpm) or at 13 gpm (50-lpm). Dispensers
using 60Hz power the 13-gpm pump requires a 250 Watt 1/3 HP motor and the 22-gpm pump uses a 560 Watt 3/4 HP motor. Dispensers
using 50Hz power it should be noted that the 22-gpm pump at different speeds could be done by changing the pump pulley. Refer to the
T75 Pumping Unit Operators, Service, and Parts Manual for more information.
TYPE 140 PUMPING UNIT (HIGH FLOW)
The Bennett Type 140 pumping unit is used to pump fuel at nominal flow rates of 37gpm (140lpm). Refer to the T140 Pumping Unit
Operators, Service, and Parts Manual for more information.
