Bennett 3000 Series - The Pump Handle; Junction Box (Optional); Dispenser Controls and Instrumentation

Bennett 3000 Spec 300 Series Instruction Manual Product Introduction
7

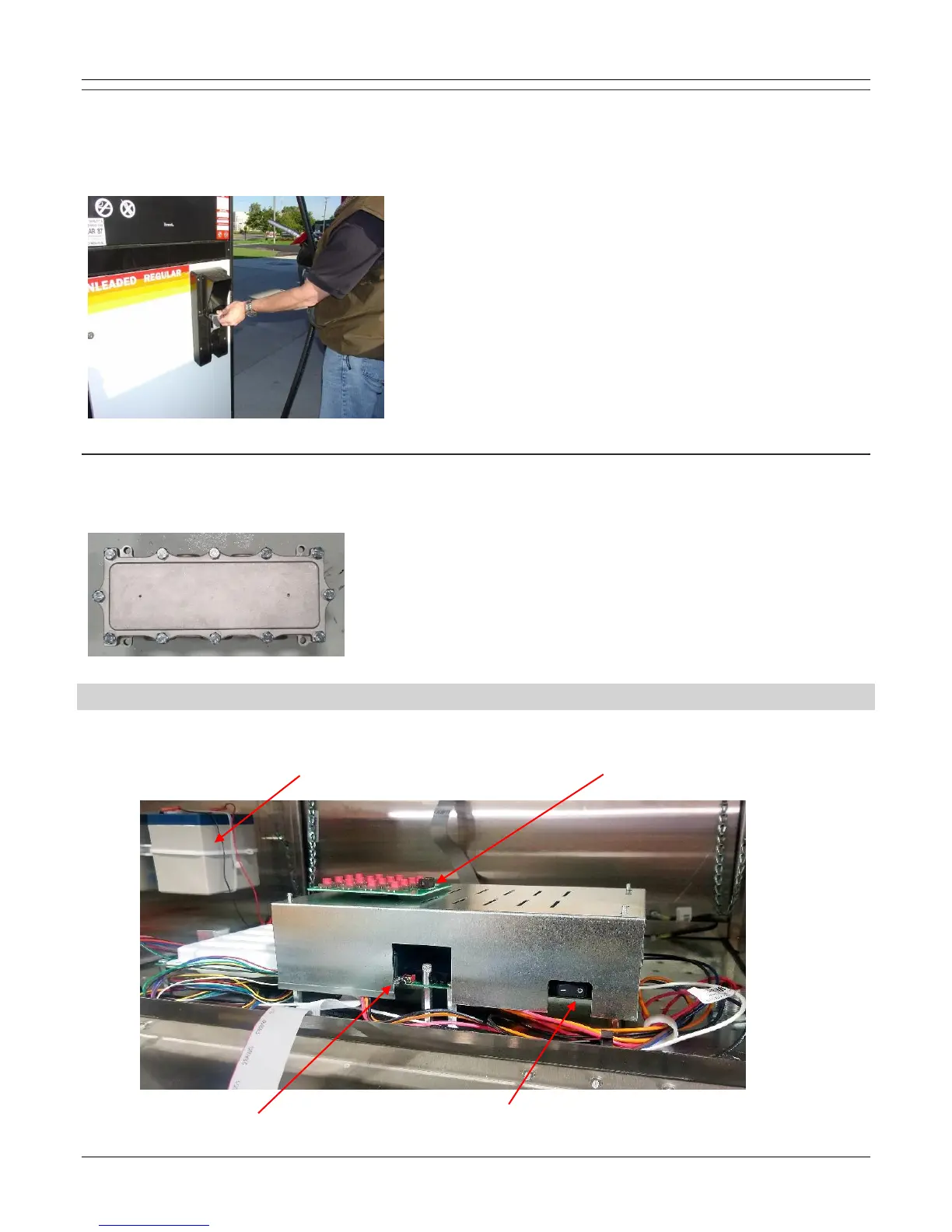

THE PUMP HANDLE
The pump handles are located on the front or side of the dispenser or on the side of the dispenser. To operate the dispenser, remove the
nozzle from the holder and lift the pump handle up for the ON position. Push the pump handle down for the OFF position. These are
referred to as “Lift to Start” nozzle boots.
JUNCTION BOX (OPTIONAL)
The dispenser’s field wiring connections are located in an explosion proof junction box located in the lower hydraulics area of the
dispenser. Field wiring connections are terminated on the terminal strip and pulled into the electronic enclosure.
DISPENSER CONTROLS AND INSTRUMENTATION
The following section provides a description of the controls and instrumentation used on a 3000 Series Spec 300 Dispenser.
EXTERNAL BATTERY
MANAGER’S KEYPAD
BATTERY KILL BUTTON
POWER SWITCH
