TEBEVERT III INVERTER SYSTEM (120 VDC)
07.11.2011 8 028-0009-006
Input Terminals and distribution
position
(depending on the application)
Static By-Pass Switch (SBS) shelf
Inverter module shelf 5
(A5)
Inverter module shelf 4
(A4)
Inverter module shelf 3
(A3)
Inverter module shelf 2
(A2)
Inverter module shelf 1
(A1)
Transformers.

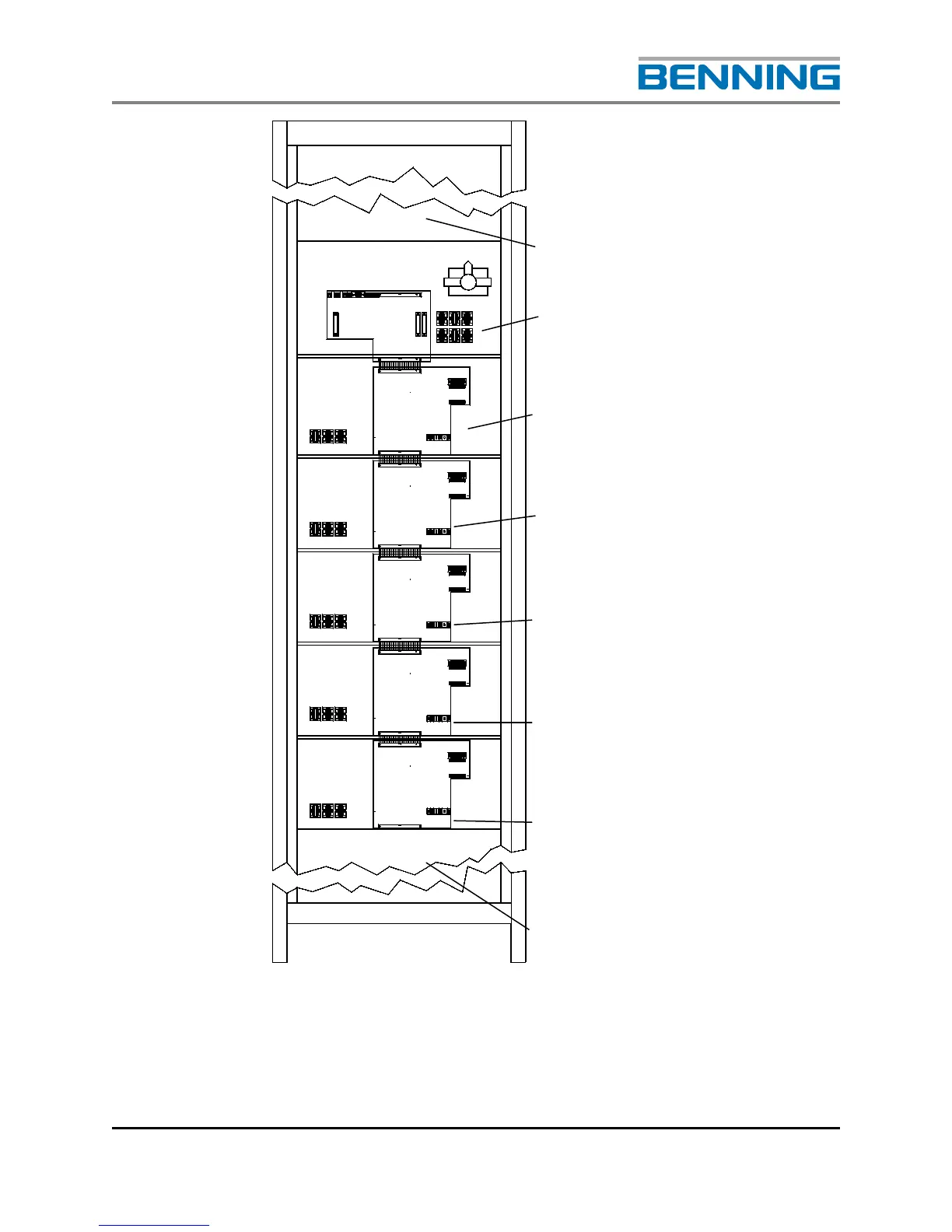

Fig. 1: Typical design of top feed cabinet
