TEBEVERT III INVERTER SYSTEM (120 VDC)
07.11.2011 27 028-0009-006

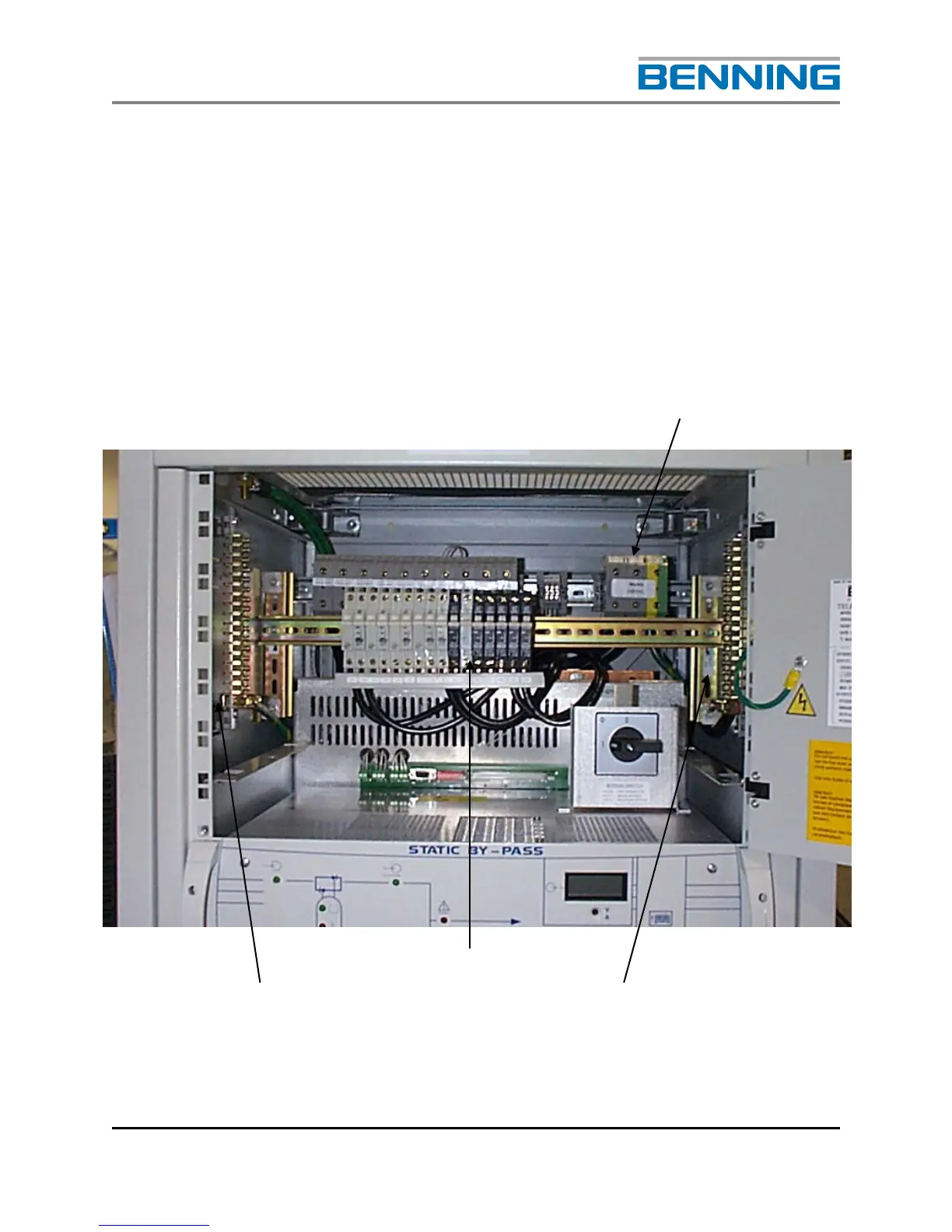

3.7.2 DIN RAIL STYLE BREAKER PANEL
This AC Distribution option is an internally mountable option. The panel is
designed to accommodate up to 24 breaker positions using standard CBI
type QL, UL Listed, 1 or 2-pole, DIN Rail mounting circuit breakers. The
maximum allowable sized breaker is 25A per pole. The maximum
allowable current per bus is 125A. This AC Distribution is designed to
mount into the standard inverter cabinet and occupies 4U of vertical
space. Neutral and Ground connections are provided as part of the
distribution option. This option can be wired as 120VAC and Neutral or
120/240VAC and Neutral depending on the output voltage option selected.
Neutral (N)
1 or 2 pole
output breakers
(CBI) – L1 and/or
Ground (PE)
Commercial AC
(By-pass)
