TEBEVERT III INVERTER SYSTEM (120 VDC)
07.11.2011 11 028-0009-006

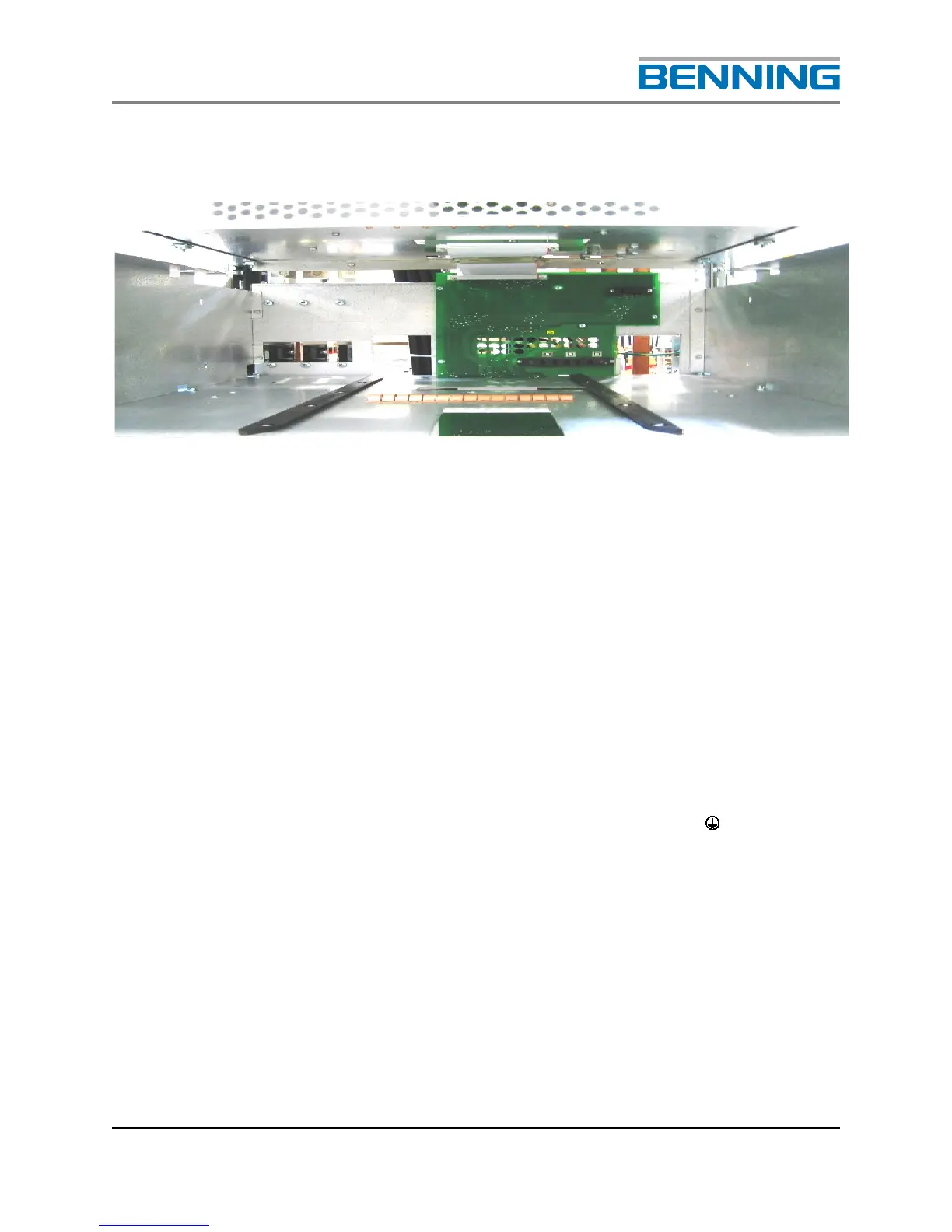

3.2 INVERTER MODULE SHELF
• Data line factory connected to the next inverter slot or the SBS slot (X1)
• Data connector for the inverter connection (X3)
• Load connector for the AC connection of the inverter output (X6) 3 poles
(2.5kVA) 5 poles (5.0kVA)
• Data line factory connected to the next inverter slot (X2)
• Female connector for the DC connection of the inverter (+)
• Female connector for the DC connection of the inverter
• Female connector for the protective earth of the inverter ( )
• *Each inverter carrier is equipped with two guiding rails insuring the
inverter is accurately positioned and a reliable contact is made.
