TEBEVERT III INVERTER SYSTEM (120 VDC)
07.11.2011 31 028-0009-006

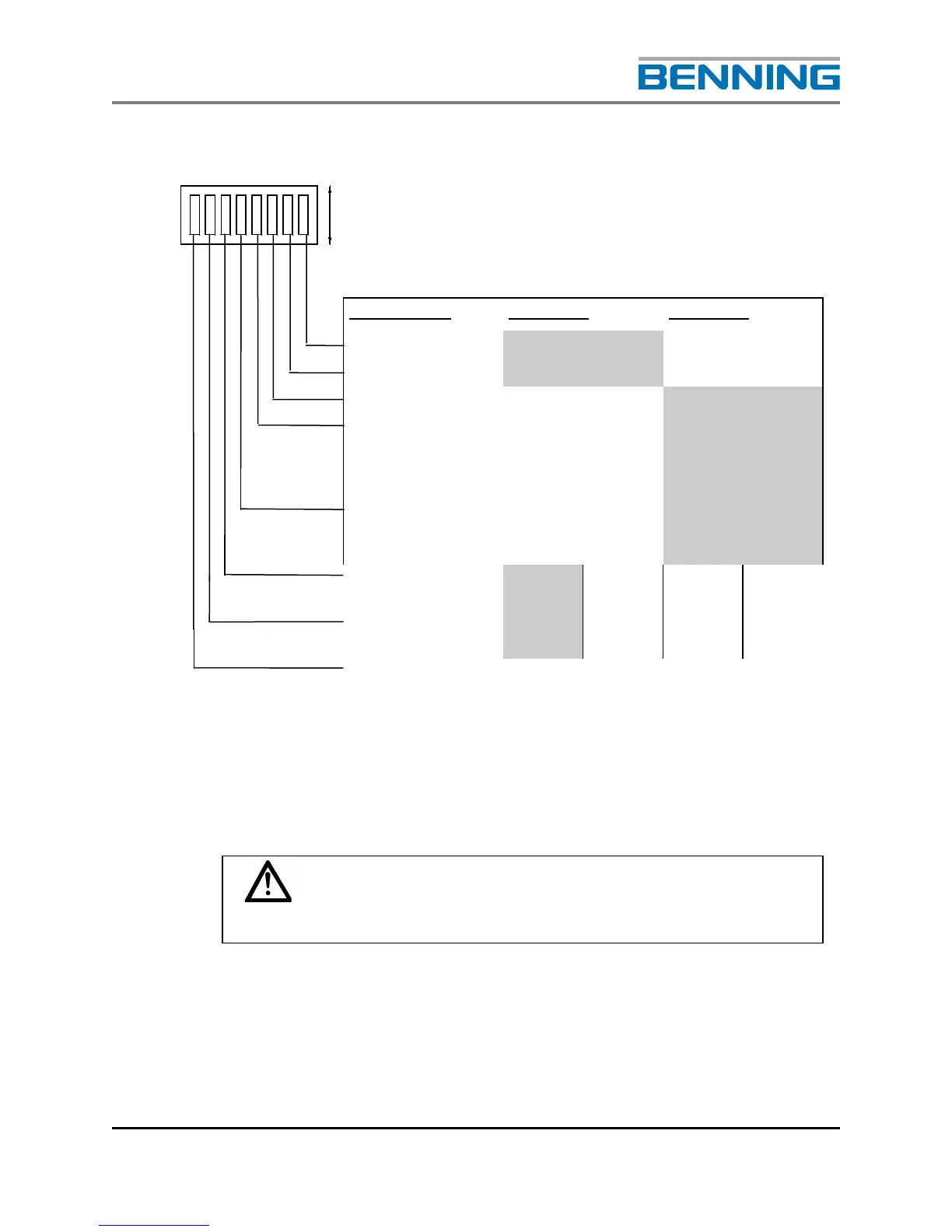

Adjustments Position 1 Position 0
Operating mode
inverter priority
mains priority
Nominal voltage 120 or 120/240 V 230 V
Nominal frequency 50 Hz 60Hz
Mains error signal no mains available
(no mains failure
indicator)
operation with
mains!
(mains failure
indicator.)
Fault signal fault signal of
STATIC BY-PASS
Common fault signal
from the STATIC BY-
PASS and inverter
Maximum deviation
of nominal frequency
Pos 1
3%
Pos 0
4%
Pos 1
1 %
Pos 0
6 %
Maximum deviation
of nominal frequency
Pos 1
Pos 1
Pos 0
Pos 0
no function
Note: The highlighted areas correspond to factory default settings.
The settings of S2 provides the SBS with the information on the output power of the
connected inverters. Depending on inverter system (25kVA/120 or 120/240VAC) only
one highlighted switch may be in position 1.
Important Note!
The setting of S2 shall be the same for both the 120 and
120/240VAC systems.
0
1
