Bernette B05 Crafter - Second Spool Pin Function; Free Arm Feature

Sewing preparation
18
2020-09 EN 5220105.00A.04
Second spool pin

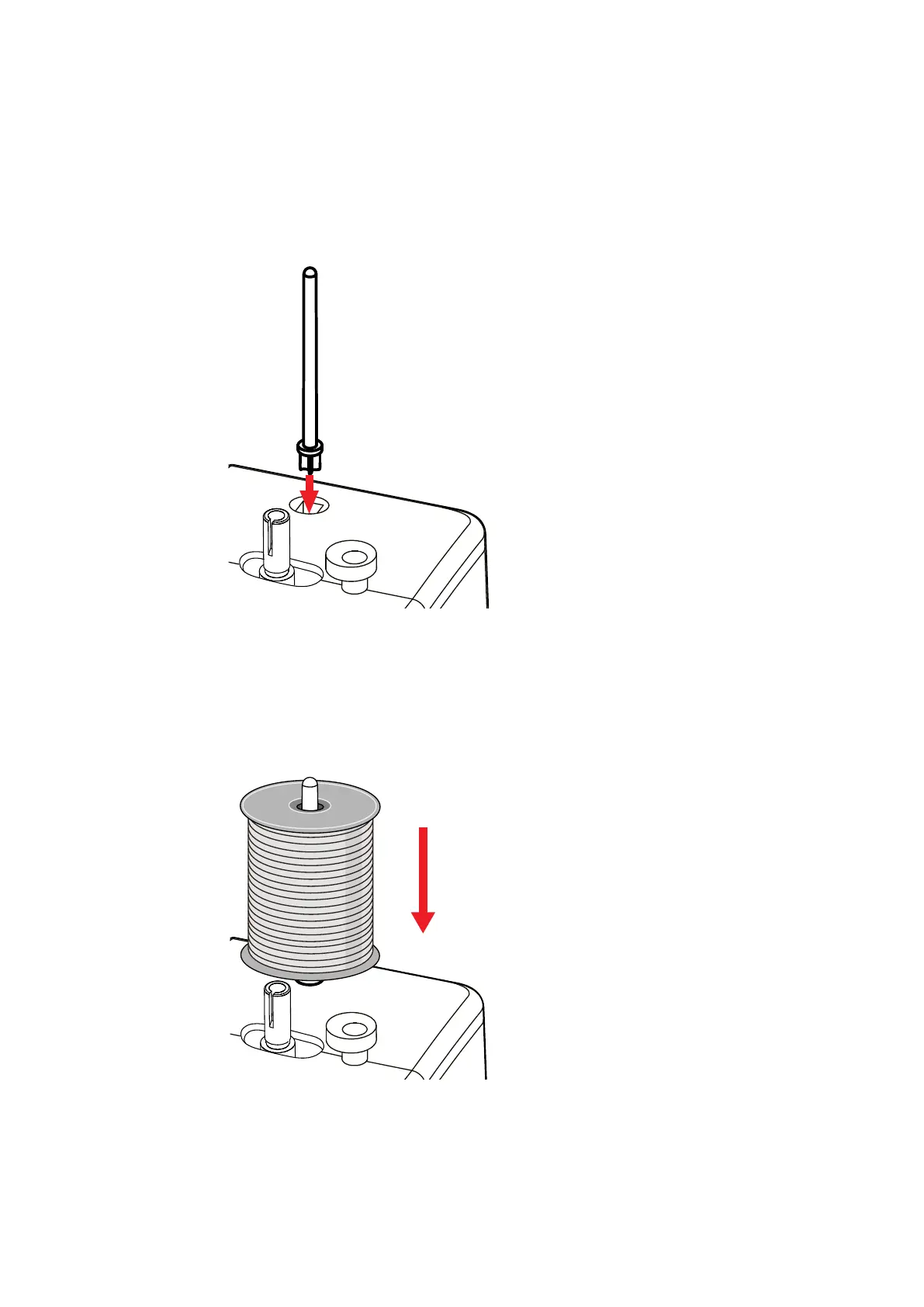

Inserting the second spool pin
The second spool pin is required when sewing with multiple threads or for winding the bobbin thread.
> Insert the second spool pin in the accessories opening on the machine cover.
1
3
2
4
4
88
6
6
7
7
9
9
Inserting thread spool
> Place the felt disc on the spool pin.
– The felt disc prevents the thread from sticking to the spool pin.
> Place the thread spool on the second spool pin.
1
3
2
4
4
88
6
6
7
7
9
9
2.3 Free arm
The bernette b05 provides a solidly designed free arm which offers a lot of space for large project on the
right of the needle.
