Bernette B05 Crafter - Sewing Table and Accessory Box; Feed Dog Adjustment; Needle Handling Procedures

Sewing preparation
19
2020-09 EN 5220105.00A.04

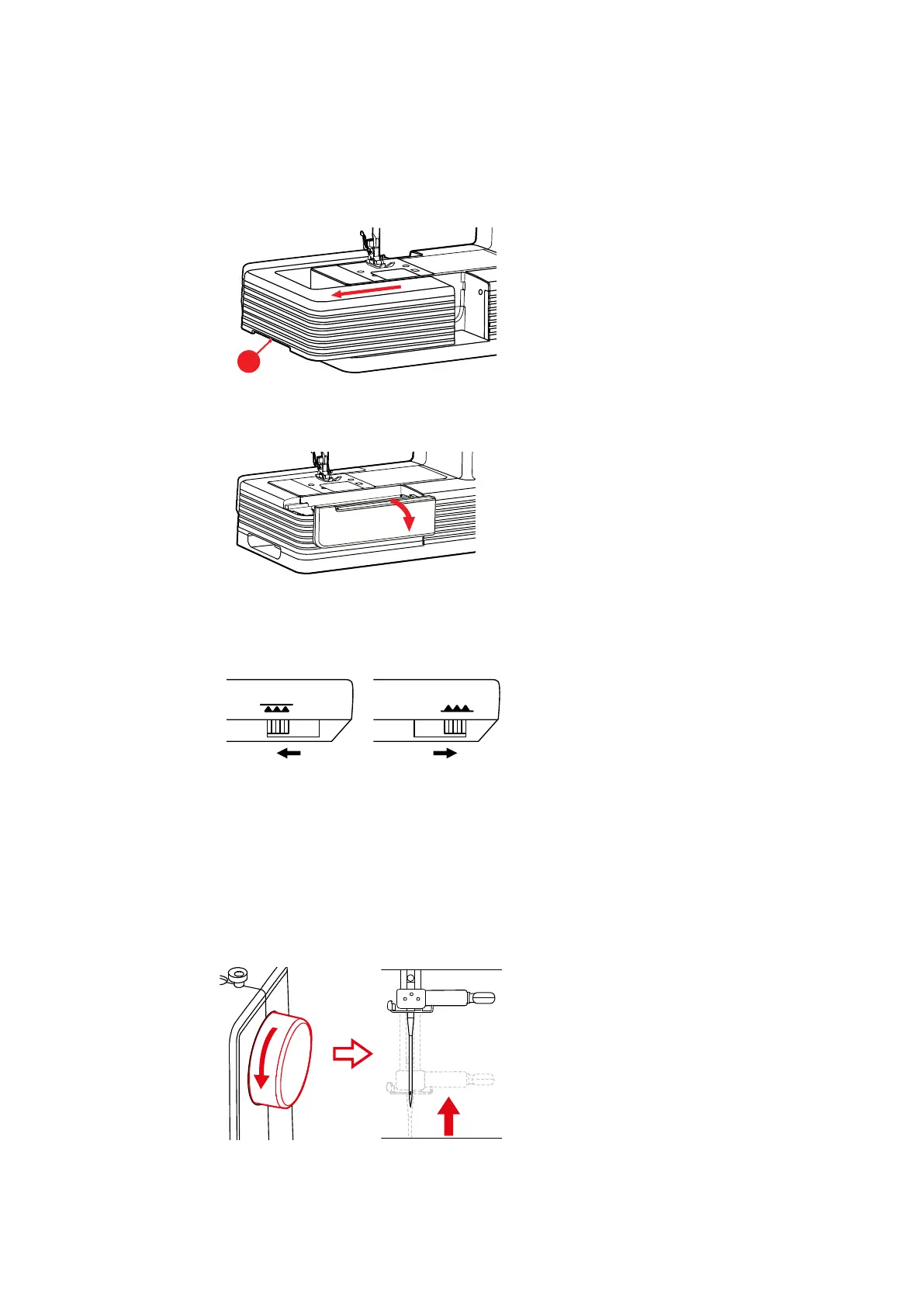

2.4 Sewing table with accessory box
The sewing table has an integrated accessory box.
> To remove the sewing table, hold the sewing table by the handle (1) and pull it away to the left.
1
> To open the accessory box, tilt the cover towards you.
> To close the accessory box, fold the lid downwards at an angle.
2.5 Raising or Lowering the Feed dog
> To raise the feed dog, push the feed dog lever to the right.
– The feed dog is raised when the first stitch is sewn.
> Slide the «Feed dog lever» left to lower the feed dog.
– The feed dog is lowered.
2.6 Needle
Raising and lowering the needle
> To raise the needle, turn the handwheel anti-clockwise until the needle is in the highest position.
> To lower the needle, continue turning the handwheel anti-clockwise until the needle pierces the fabric.
