12

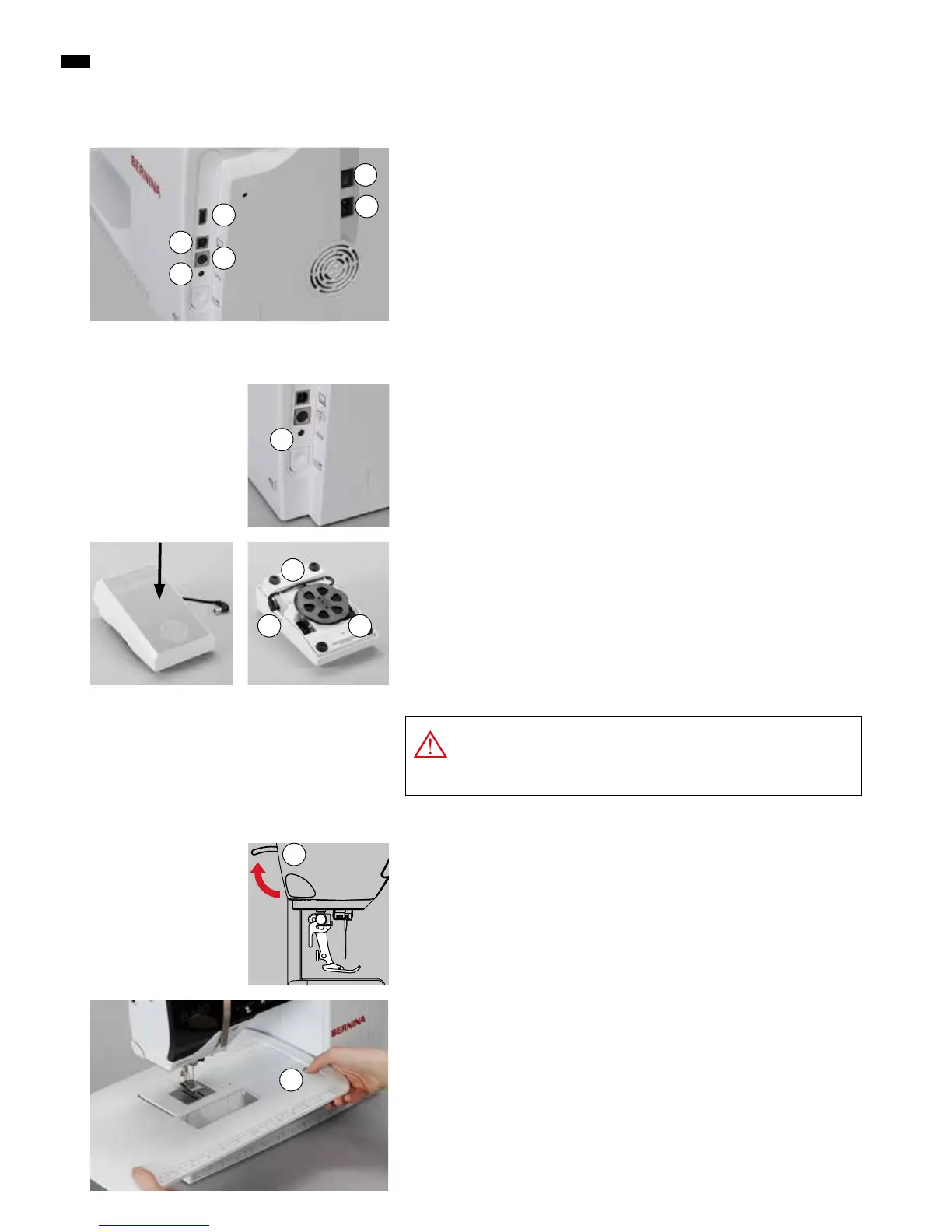

Before beginning to sew
█
unwind the cable
█
plug the cable in the outlet provided A
█
unwind the cable to the desired length and slip into B or C
Foot control
█
turn the handwheel (see page 11)
►
needle is raised
█
raise presser foot lifter 1 up
►
presser foot is lifted
Sewing preparation
Slide-on table
The slide-on table increases sewing surface.
Attaching the slide-on table
█
raise the needle and presser foot
█
slide over free-arm to the right until it engages
Removing the slide-on table
█
raise the needle and presser foot
█
press button A down
█
pull slide-on table to the left
B
D C
Sewing speed control
Control the sewing speed by pressing the foot control more or less.
Adjust needle down or up
█
adjust the down/up position of the needle by sinking the heel back on the
foot control
After sewing
█
wind the cable around the reel
█
plug cable into D
1
A
A
USA/Canada only: Use only foot controller type LV-1 with
sewing computer B 580.
1
2
5
4
3
6
1 Power Switch
The sewing computer is switched on («I») and off («0») with the power switch.
I the sewing computer is switched on
0 the sewing computer is switched off
2 Power plug socket
3 Foot control socket
4 Connection for embroidery module
5 PC-connection for embroidery software
6 USB-connection
Power Switch/Power Cable
