Bertolini 140 - Controls; Engine Stop Lever; Clutch Control Lever; Differential Lock Lever (141)

37
ENGINE START-UP
(Fig. 3 - 3/A)
When starting the engine, follow the
instructions contained in the engine’s “Use and
Maintenance” booklet, and after having made
sure that the gear control and PTO control
levers are in idle position, lock Motorstop lever
1 and clutch lever 2 by using hook C.
This prevents the power transmission of
engine with a gear engaged .

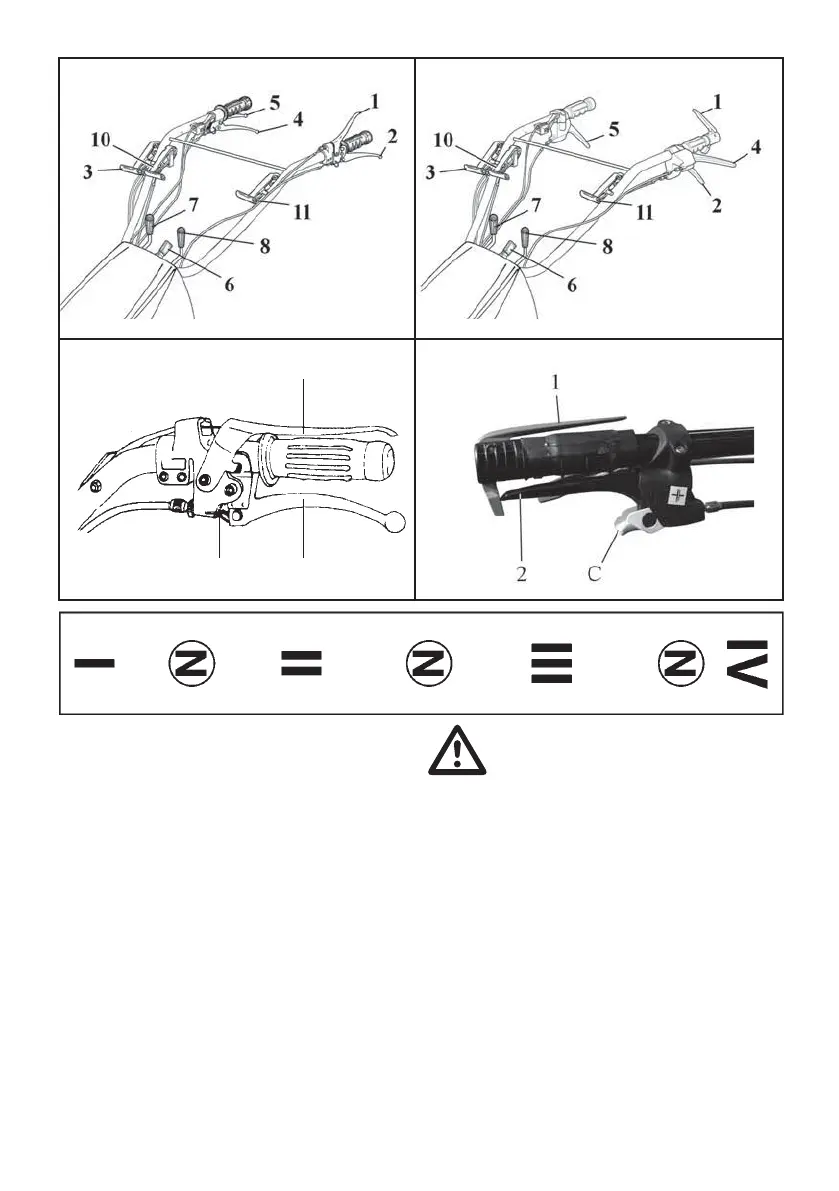

CONTROLS
(Fig. 2 - 2/A)
1) Engine stop lever
2) Clutch control lever
3) Differential Lock lever (141)
4) Left Brake lever (141)
Release lever and left brake (141M)
Mower unlocking lever (140L)
5) Right Brake lever (141)
Release lever and right brake (141M)
6) Handlebar vertical lock lever
7) Gears control lever
8) PTO control lever
9) Throttle Control
10) Reversing gear control lever
11) Quickfi t shutter lock/unlock lever
(140 - 141 - 141M)
Fig. 4
Fig. 2/AFig. 2
Fig. 3
1
2C
Fig. 3/A
141M
