44
IDENTIFICATION DATA

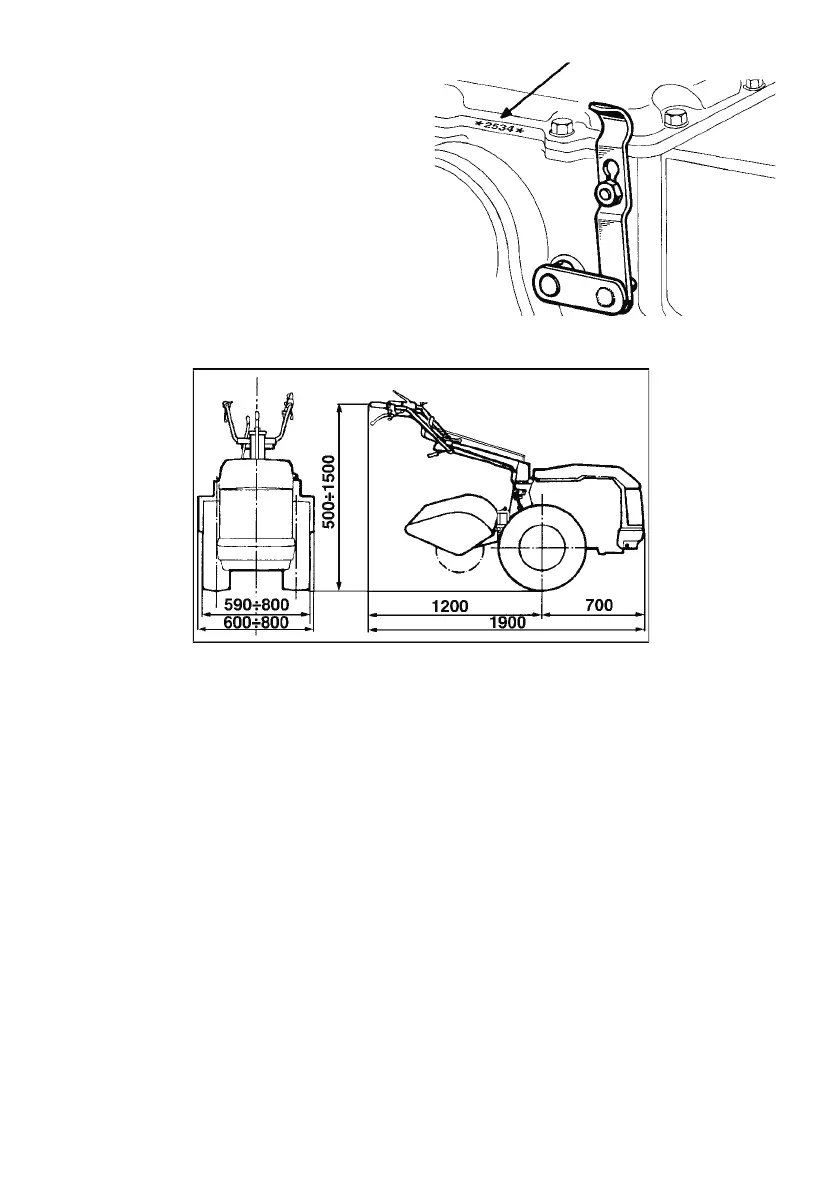

On receiving the machine check for the “CE”
label on the right hand side of the Gearbox
(clutch side) near the serial number printed
on the sump (see Fig. 1).
IMPORTANT!
Whenever requesting technical service or
ordering spare parts, always give the serial
number of the machine in question
(Fig. 1)
SPEED
Speed in km/h with engine running at 3600 rpm, with 6.50/80-12" wheels :
1st: 1,40 - 2nd: 2,80 - 3rd: 4,30 - 4th: 14,60 - RM: 3,30
TECHNICAL DATA
Diesel engine
Cooling: Air.
Start-up: Recoil or electric.
Motorstop
Single dry disk clutch:
With control lever on handlebar.
Gears: 4 forward + 1 reverse.
Differential lock: With lever on handlebar.
Independent P.T.O.: 2 speed.
Brakes:
On both wheels, with independent control.
180° Reversible handlebars, adjustable:
\/ertically (6 positions) and horizontally ( 3
positions) either with normal implements or
with frontal implements (Mower).
Simple or double metal wheels:
With adjustable disc tyres.
Tires 6.50/80-12"
Weight with diesel engine and 800 mm.
Rotary Hoe, 6.50/80-12" Wheels: 185 Kg.
OVERALL DIMENSIONS.
