TG 1000 – Technical Specifications
40
Digital UHF Beltpack Transmitter
Operating principle. . . . . . . . . . . . . . Digital UHF beltpack transmitter
Frequency range
Region A . . . . . . . . . . . . . . . . . . . . . 470 – 789 MHz
Region B . . . . . . . . . . . . . . . . . . . . . 470 – 698 MHz without 608 - 614 MHz (US TV channel 37)
Region C . . . . . . . . . . . . . . . . . . . . . 520 – 694 MHz
Region D . . . . . . . . . . . . . . . . . . . . . 470 – 628 MHz
710 – 716 MHz
Region E. . . . . . . . . . . . . . . . . . . . . . 470 – 714 MHz
Frequency response . . . . . . . . . . . . . 20 – 20,000 Hz
Antenna connection. . . . . . . . . . . . . SMA
Encryption &
Audio CODEC . . . . . . . . . . . . . . . . . Switchable, proprietary encryption scheme based upon a 16 bit pattern;
“Triple-Play” CODEC with low latency and high error resilience
Transmitter power . . . . . . . . . . . . . . 10mW / 50 mW
Dynamic range . . . . . . . . . . . . . . . . . 116 dB (A-weighted)
Display . . . . . . . . . . . . . . . . . . . . . . . OLED
Transmission range. . . . . . . . . . . . . . up to 300 metres under optimal conditions
Operating time. . . . . . . . . . . . . . . . . approx. 8 hrs. (NiMH 2100 mAh, RF Power Standard)
Input level . . . . . . . . . . . . . . . . . . . . max. + 18 dBu
Weight. . . . . . . . . . . . . . . . . . . . . . . 102 g without batteries
Dimensions . . . . . . . . . . . . . . . . . . . 94x59x26 mm

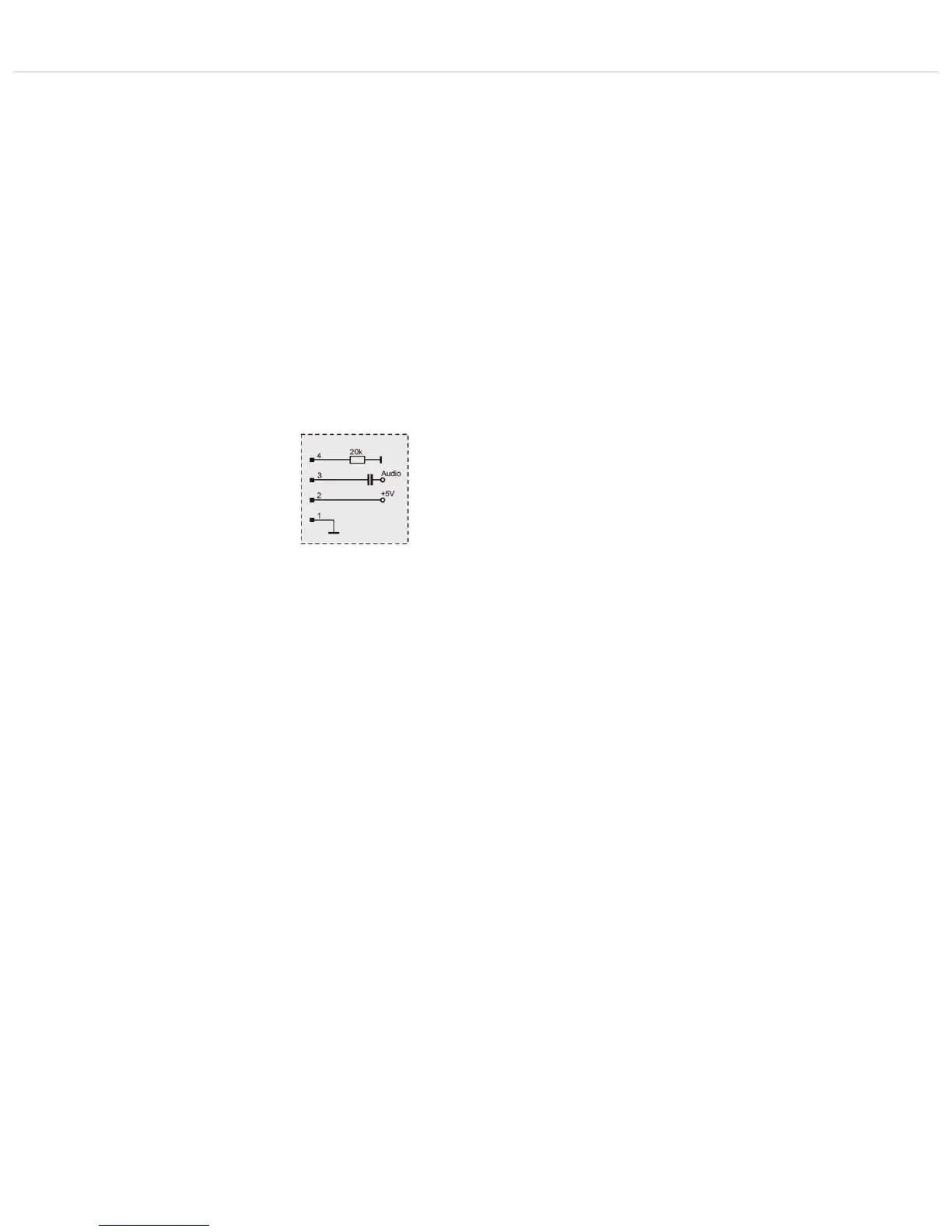

Pin assignment of 4-pin
connector. . . . . . . . . . . . . . . . . . . . .
WA-AS6 6-way Wideband Antenna Splitter
Frequency response . . . . . . . . . . . . . 470 – 790 MHz
Connections. . . . . . . . . . . . . . . . . . . Input/output BNC socket
Weight. . . . . . . . . . . . . . . . . . . . . . . 1116 g
Dimensions . . . . . . . . . . . . . . . . . . . 484x90x44 mm
WA-AMP Wideband Antenna Amplifier
Frequency response . . . . . . . . . . . . . 470 – 790 MHz
Connections. . . . . . . . . . . . . . . . . . . Input/output BNC socket
Switchable amplification. . . . . . . . . . 5/10/15/20 dB
Supply voltage . . . . . . . . . . . . . . . . . 8 volts
Power consumption . . . . . . . . . . . . . 70 mA
Weight. . . . . . . . . . . . . . . . . . . . . . . 40 g
Dimensions . . . . . . . . . . . . . . . . . . . 76x25x19 mm
