Installation, Operation and Maintenance Manual
MAN616_EAC Rev. 5
Section 2: Installation
Installation
Lift ALGAS-QA actuators (pneumatic spring-return) by means of the proper lifting points
represented and indicated on actuator by sticking labels. Also refer to gures 8 for lifting
points positions.
!
WARNING
Do not use the lifting eyelets on actuator to lift valve + actuator assembly
Spring cartridge
Lifting eyelet
Pneumatic cylinder
Lifting eyelet
lifting point applicable for ALGAS
models: 3-6-14-18-32-50-80
Lifting eyelet
lifting point applicable for ALGAS
models: 0.3-0.9-1.5

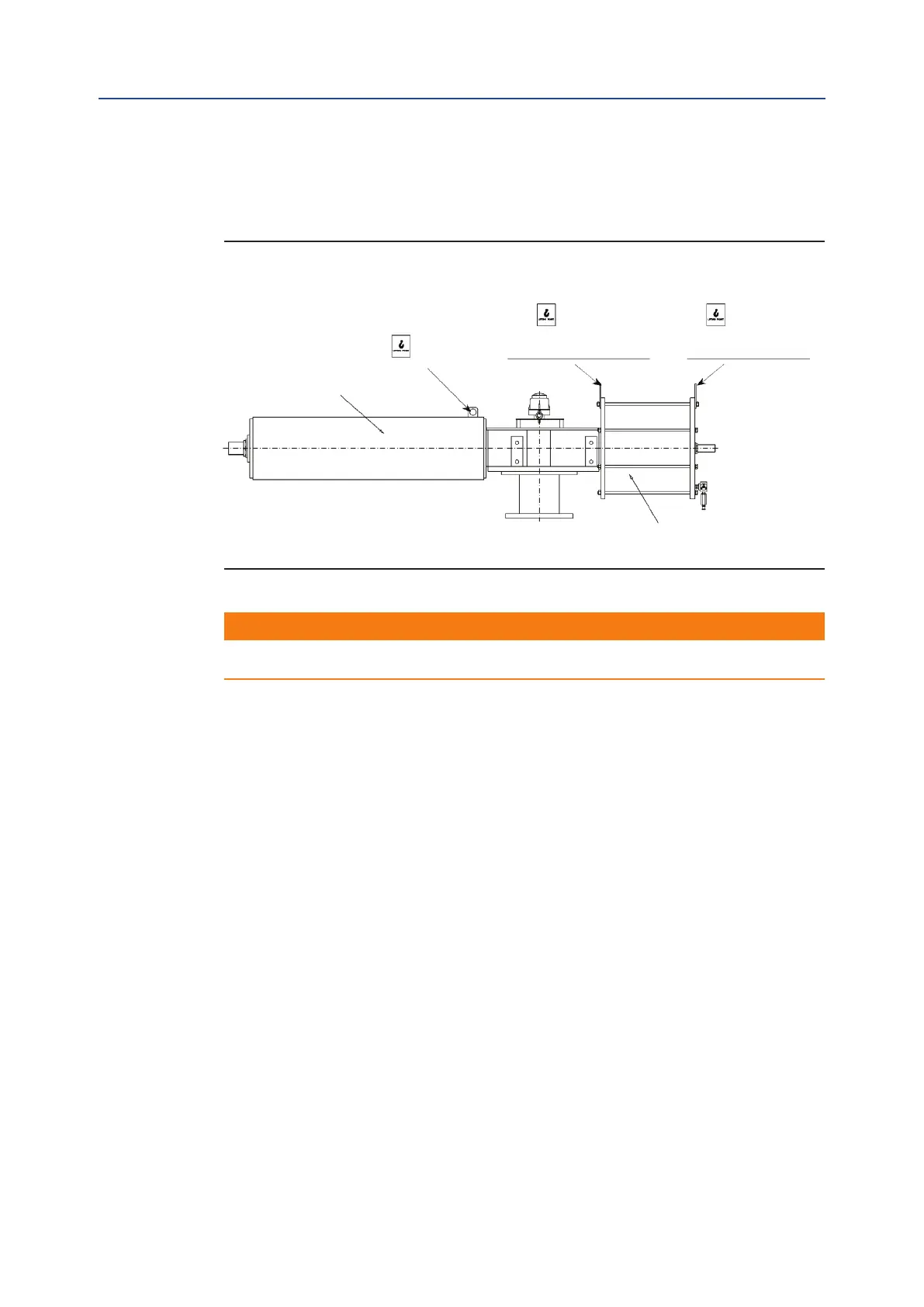

Figure 8 Lifting Points for ALGAS-QA
• For lifting unbalanced loads, use ropes of different lengths or chains with
adjustable length.
• Check each time the conditions of all lifting equipment used and discard it if not in
perfect working order.
• Do not knot or twist the ropes so as not to reduce the lifting capacity or produce
torsional effects on the load being lifted.
• Use the utmost caution and remain at a safe distance from lifted actuator unless
absolutely necessary; do not stand or pass under suspended loads.
• Pay attention in putting under tension the ropes to prevent the load shifting sideways
in an uncontrolled manner.
• Use slings of such length that the angles of the leg from vertical are as narrow as
possible (αMAX < 20°).
• During handling, do not transport the suspended actuator above staff members in
charge of the operation.
