3-5. BATTERIES REPLACEMENT
Access to the batteries requires moving the Charging
requirements will vary depending on depth of dis-
charge and temperature. Follow safety rules when
placing a battery on charge.
Proceed as follows:
a. Remove two screws (1, Figure 3-2) and
remove the upper compartment cover.

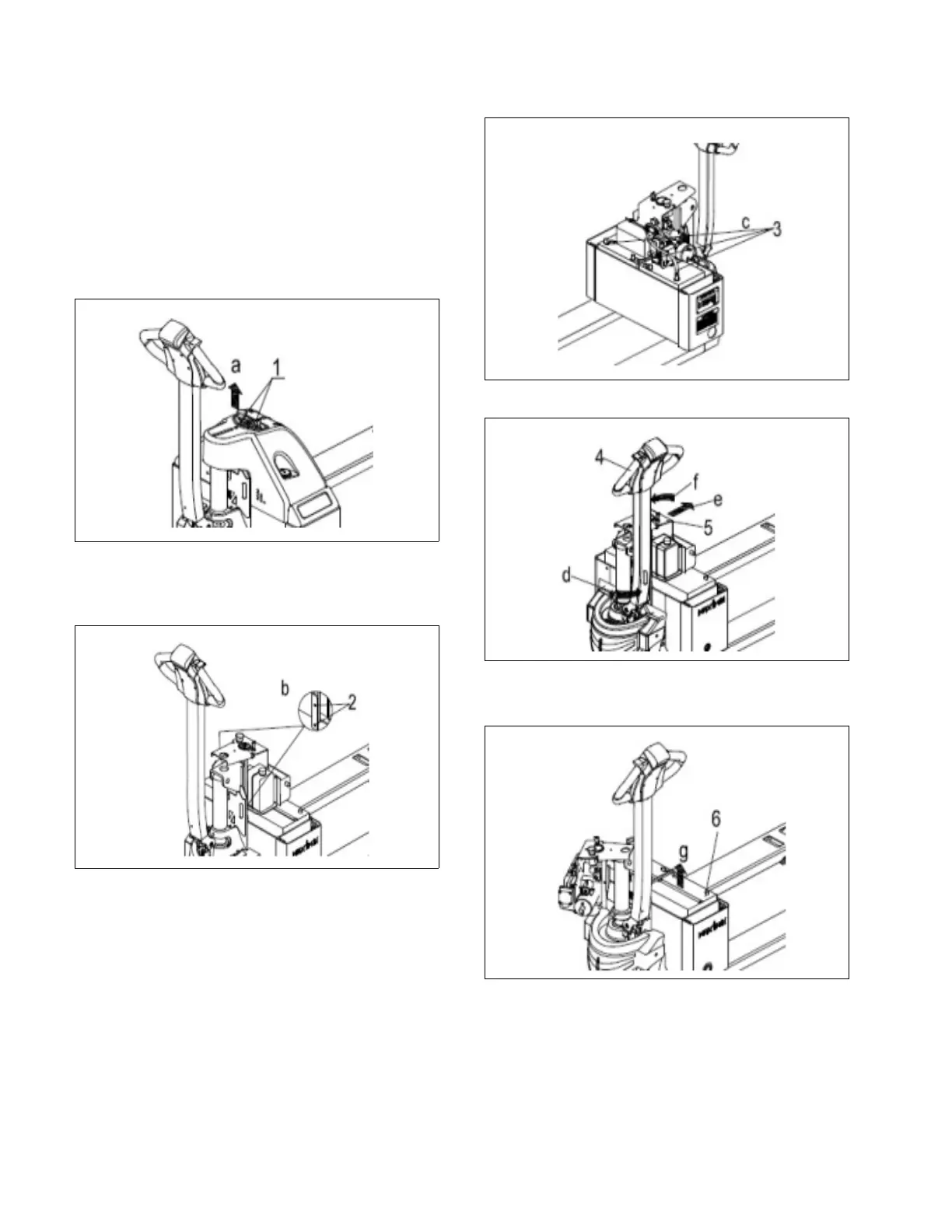

Figure 3-2 Cover Removal
b. Remove four screws (1, Figure 3-3), four
washers (2).
Figure 3-3 Screw Removal
c. Tag and disconnect the three battery cables
(Figure 3-4).
d. Rotate control arm to the extreme position as
shown in Figure 3-5.
e. Pull electrical panel (5, Figure 3-5) a little out.
f. Turn the electrical panel to the direction as
shown in Figure 3-5 until it is clear of the bat-
teries.
Figure 3-4 Disconnect Battery Cables
Figure 3-5 Reposition Electrical Panel
g. Replace batteries (6, Figure 3-6).
Figure 3-6 Cover Removal
h. Install in the reverse order of remove.
