BL-E30-0515 - 07-27-2016 8-1
SECTION 8
ELEVATION SYSTEM SERVICING
8-1. LIFT LINKAGE
8-1.1. Removal
1. Lift complete truck to height sufficient to permit
access to lift linkage under forks. Provide blocking
under frame (8, Figure 8-1) and at tips of the
forks.
2. Turn off the key switch (20, Figure 12-18) and
emergency disconnect (17).
3. Remove pins (10, Figure 8-1) and remove shafts
(11).
4. Remove clips (3) from each side of frame (8).
Support link assembly and remove shaft (9).
5. Remove pins (7) and remove shafts (6).
6. Lower link assembly to the floor.

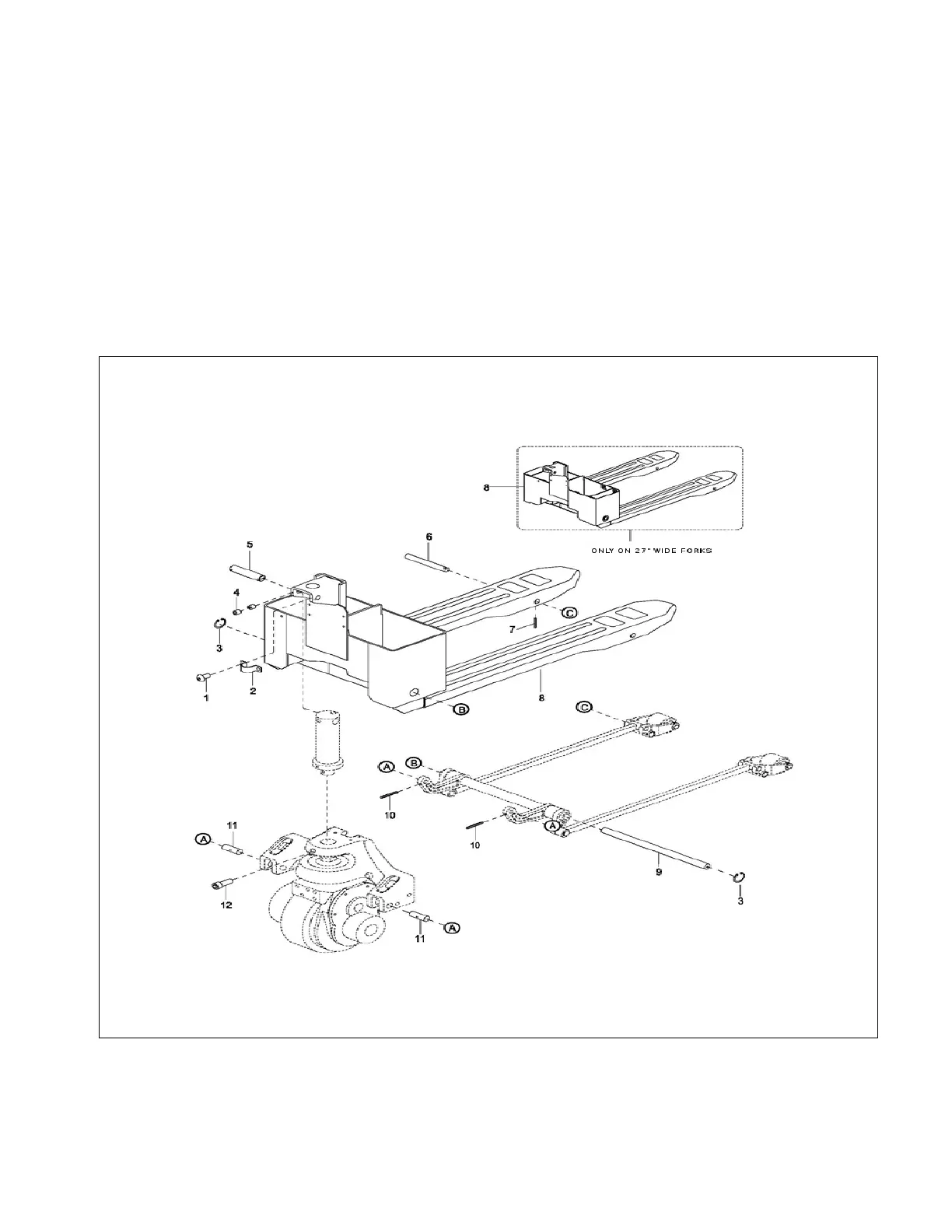

Figure 8-1 Frame
