BL-E30-0515 - 03-01-2018 7-3
7-3. Load Wheel.
7-3.1. Removal
1. Raise forks.
2. Turn off the key switch (20, Figure 12-18) and
emergency disconnect (17).
3. Block the drive wheel to prevent the truck from
rolling.
4. Jack up the forks to raise the load wheels off the
floor. Securely block the forks in the raised posi-
tion by positioning supports under both fork tips.
NOTE: When shaft (12, Figure 12-11) is removed,
load wheel assembly (13) will drop free.
5. Remove pin (11) securing shaft (12) and remove
shaft (12) and load wheel assembly (13).
NOTE: Inspect the load wheel assembly. If the load
wheel is worn within 1/8" of the metal sleeve,
or is cracked or damaged, replace the entire
load wheel and bearing assembly. Big Lift
LLC recommends that both load wheel
assemblies be replaced at the same time.
This ensures level and safe operation of the
lift truck.
7-3.2. Repair
1. Remove bearings (1, Figure 7-2) from wheels (2).
2. Inspect bearings (1) and replace if necessary.
3. Reassemble bearings (1) in wheels (2).
7-3.3. Load Wheel Installation
1. Position load wheel assembly (13, Figure 12-11)
in wheel bracket (8).
2. Install shaft (12) and secure with pin (11).
3. Remove blocking from under the truck.
4. Lower the forks.
5. Turn on the key switch (20, Figure 12-18) and
emergency disconnect (17).

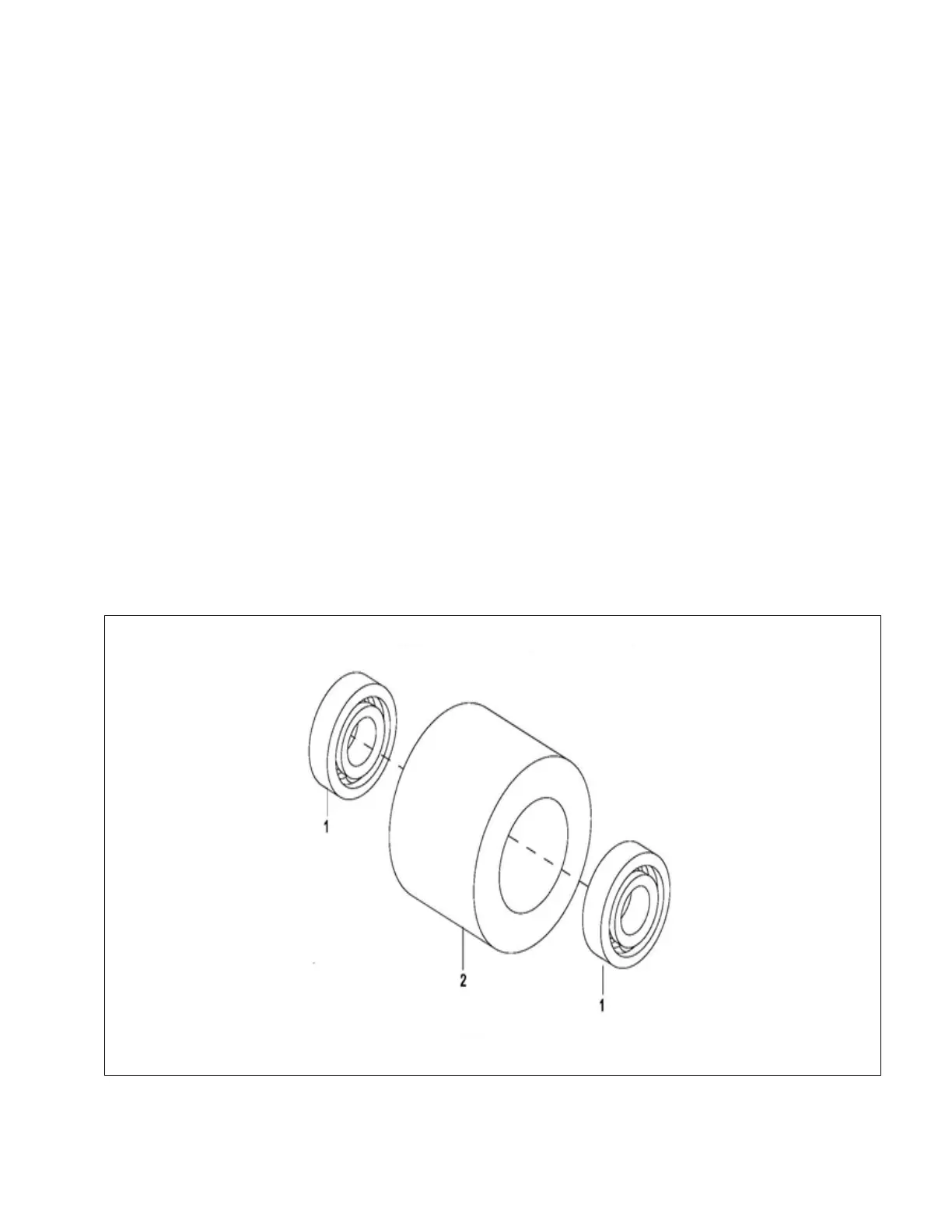

Figure 7-2 Wheel Assembly
