SECTION 1
DESCRIPTION
1-1. INTRODUCTION.
This publication describes the 24 volt E30 lift truck dis-
tributed by Big Lift LLC. Included are operating instruc-
tions, planned maintenance instructions, lubrication
procedures, corrective maintenance procedures and a
complete parts list with part location illustrations.
Users shall comply with all requirements indicated in
applicable OSHA standards and current edition of
A.N.S.I. B56.1 Part II. By following these requirements
and the recommendations contained in this manual,
you will receive many years of dependable service
from your E30 lift truck.
1-2. GENERAL DESCRIPTION.
The self-propelled E30 truck, Figure 1-2, lifts and
transports payloads up to 3000 pounds on rigid forks.
The forward and reverse motion is controlled by either
of two controller levers mounted on the control head.
Stopping and turning is controlled by the steering arm.
Lift and Lower is controlled by pushbuttons on the con-
trol head. The battery powered lift truck is quiet and
without exhaust fumes.
The reversible AC motor propels the lift truck in for-
ward or reverse direction throughout the available
speed range. The E30 lift truck can be driven with
forks raised or lowered. The lift truck must be pro-
tected from the elements.

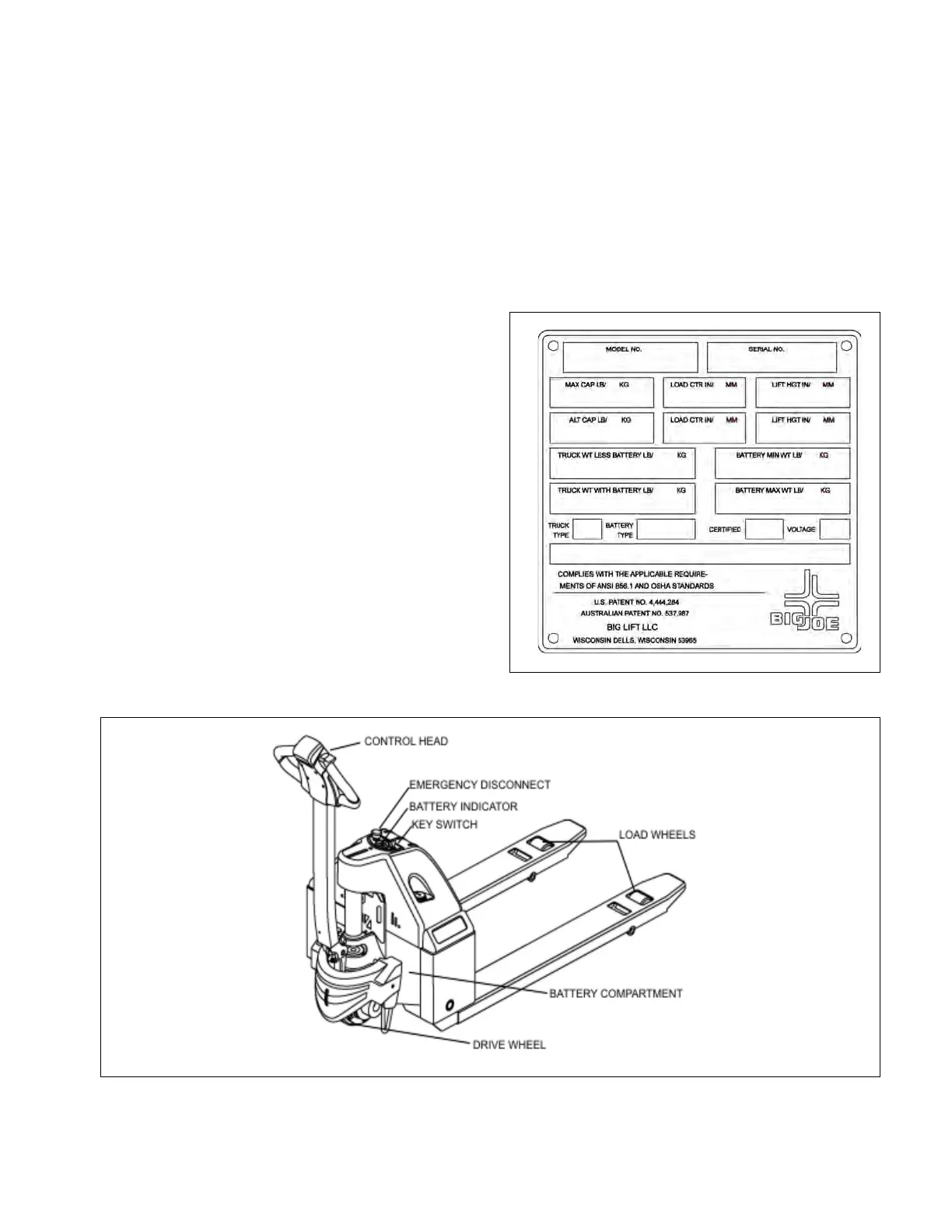

The model number will be found on the name plate
(Figure 1-1) along with the serial number, lifting capac-
ity, and load center. Figure 1-2 shows the locations of
the truck’s main components and controls.
Figure 1-1 Name Plate
Figure 1-2 . E30 Lift Truck
