Big Joe E30 - Steering Arm, Control Head and Compartment; Control Head; 5-1.1 Control Head Removal

BL-E30-0515 - 03-01-2018 5-1
SECTION 5
STEERING ARM, CONTROL HEAD AND COMPARTMENT
5-1. CONTROL HEAD
5-1.1. Control Head Removal
1. Turn off the key switch (20, Figure 12-18) and
emergency disconnect (17).
2. Remove the cap assembly (1, Figure 5-2) as
described in paragraph 5-1.3.
3. Disconnect harness (17, Figure 5-1) from potenti-
ometer (21, Figure 5-2).

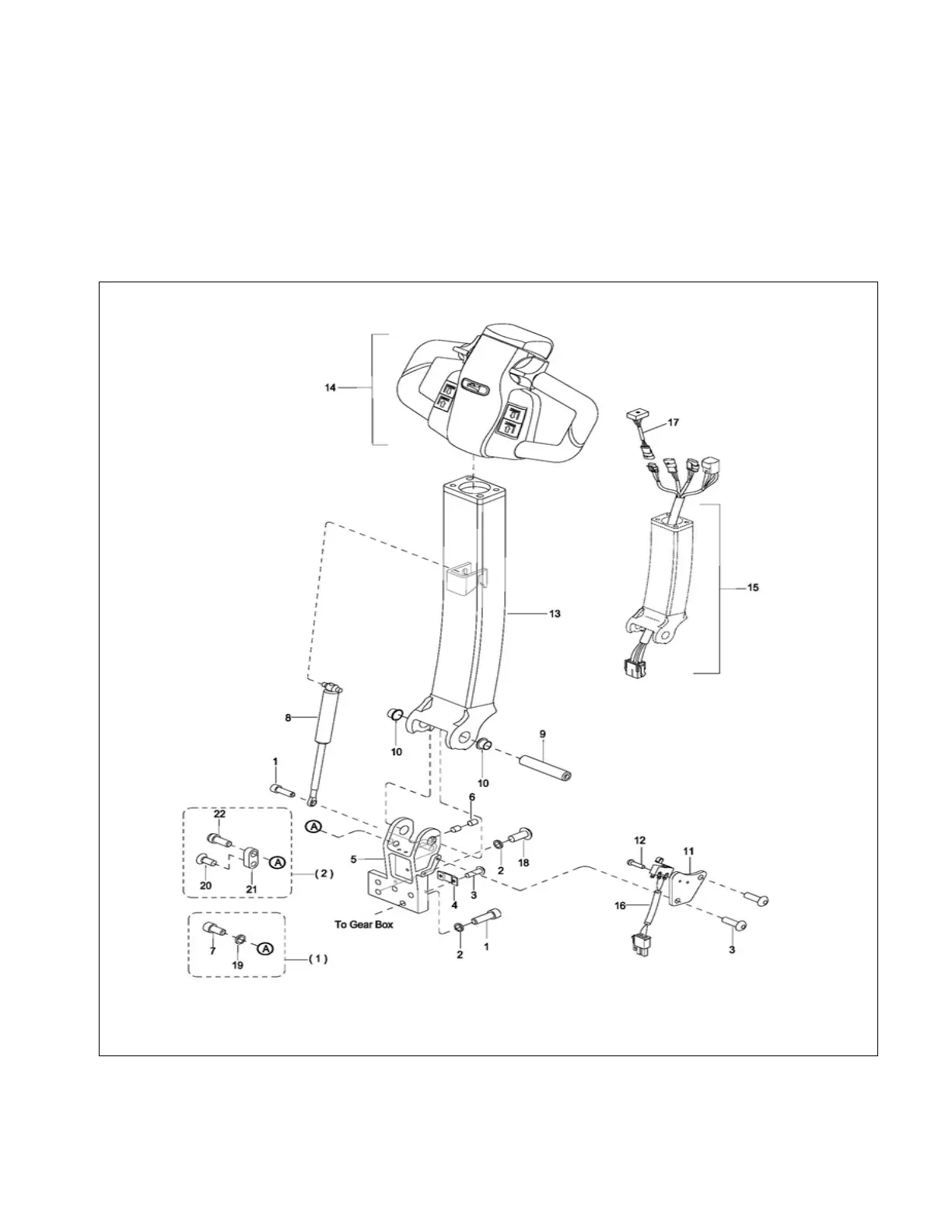

Figure 5-1 Steering Arm
R6740A
