4. Disconnect harness (15, Figure 5-1) from emer-
gency reverse switch (23, Figure 5-2).
5. Remove two screws (5), two washers (7) and two
flat washers (6).
WARNING: When removing the control head in the
following steps, be sure to hold it in place
until the control harness is disconnected.
6. Remove two screws (11), two washers (12) and
two flat washers (13).
7. Remove the control head and handle (19).

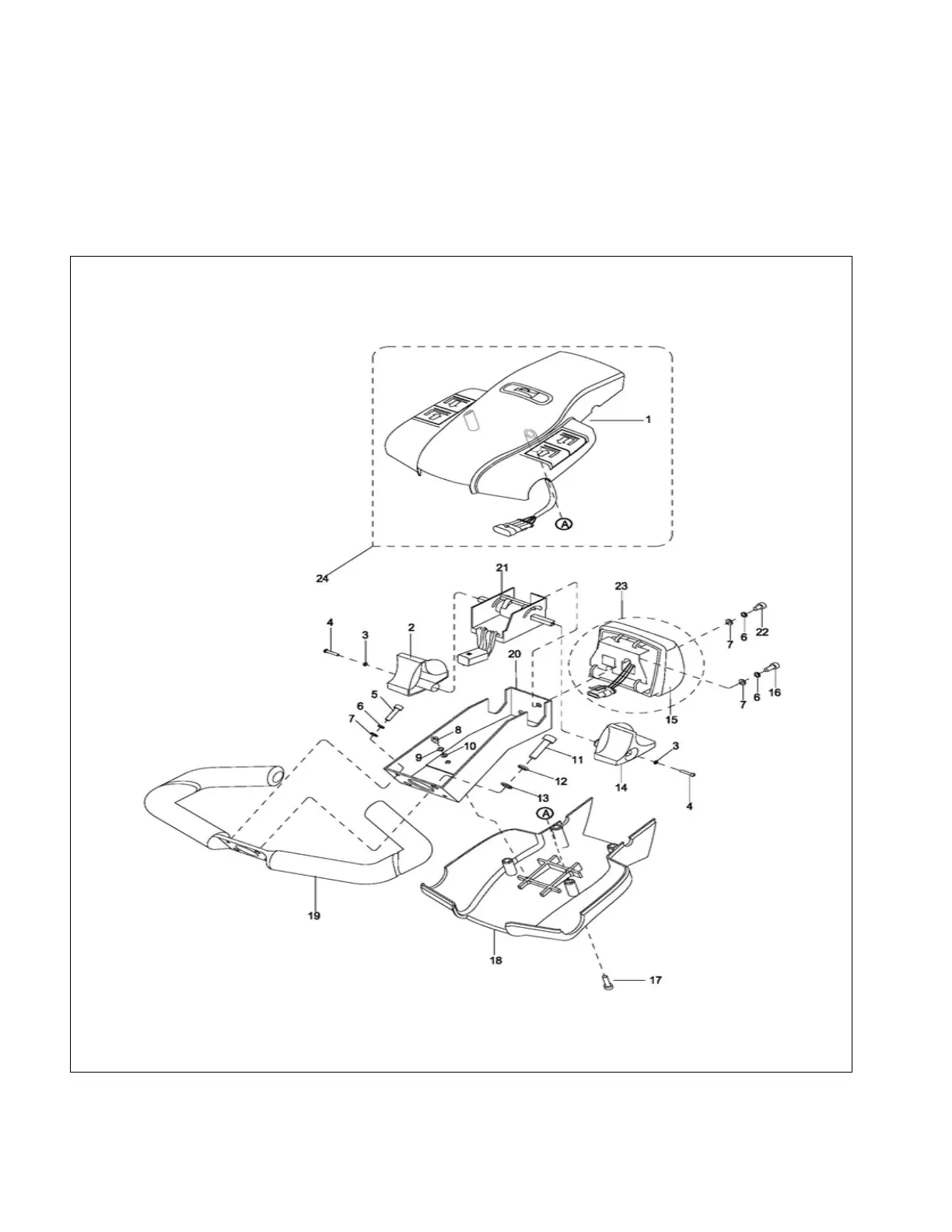

Figure 5-2 Control Head
