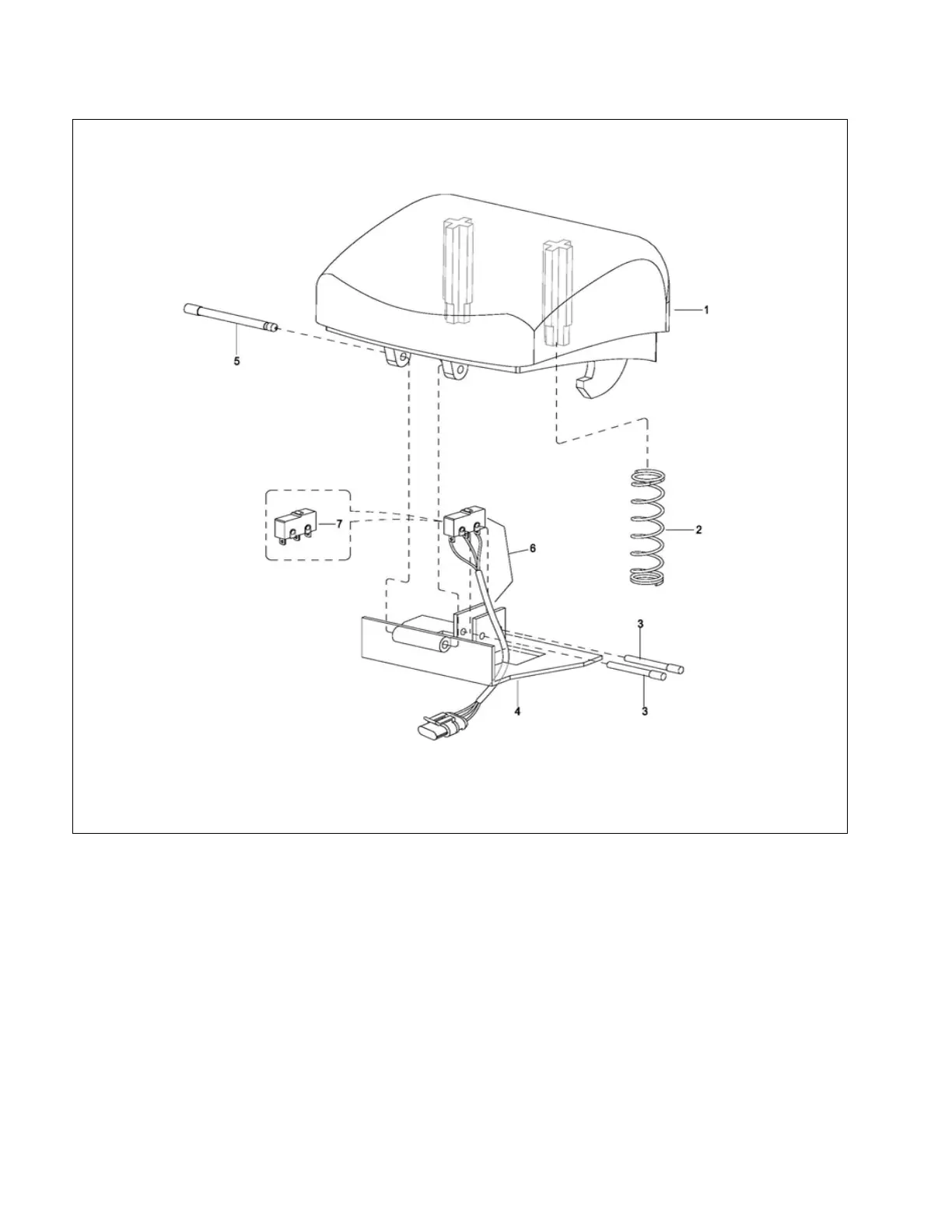

Figure 5-3 Emergency Reverse Switch Assembly
5-1.7. Horn Switch Replacement.
1. Remove the cap assembly as described in para-
graph 5-1.3.
2. Remove three screws (11, Figure 5-4), bracket
(10c) and two springs (10b).
3. Remove two pins (10a) and switch from bracket
(10c).
4. Position new switch in bracket (10c) and secure
with two pins (10a).
5. Position bracket (10c) with two springs (10b) in
cover (1) and secure with three screws (11).
6. Install the cap assembly as described in para-
graph 5-1.4.
